When Pressing "PWR/VOL" Switch, Screen Remains Black
When Pressing "PWR/VOL" Switch, Screen Remains Black

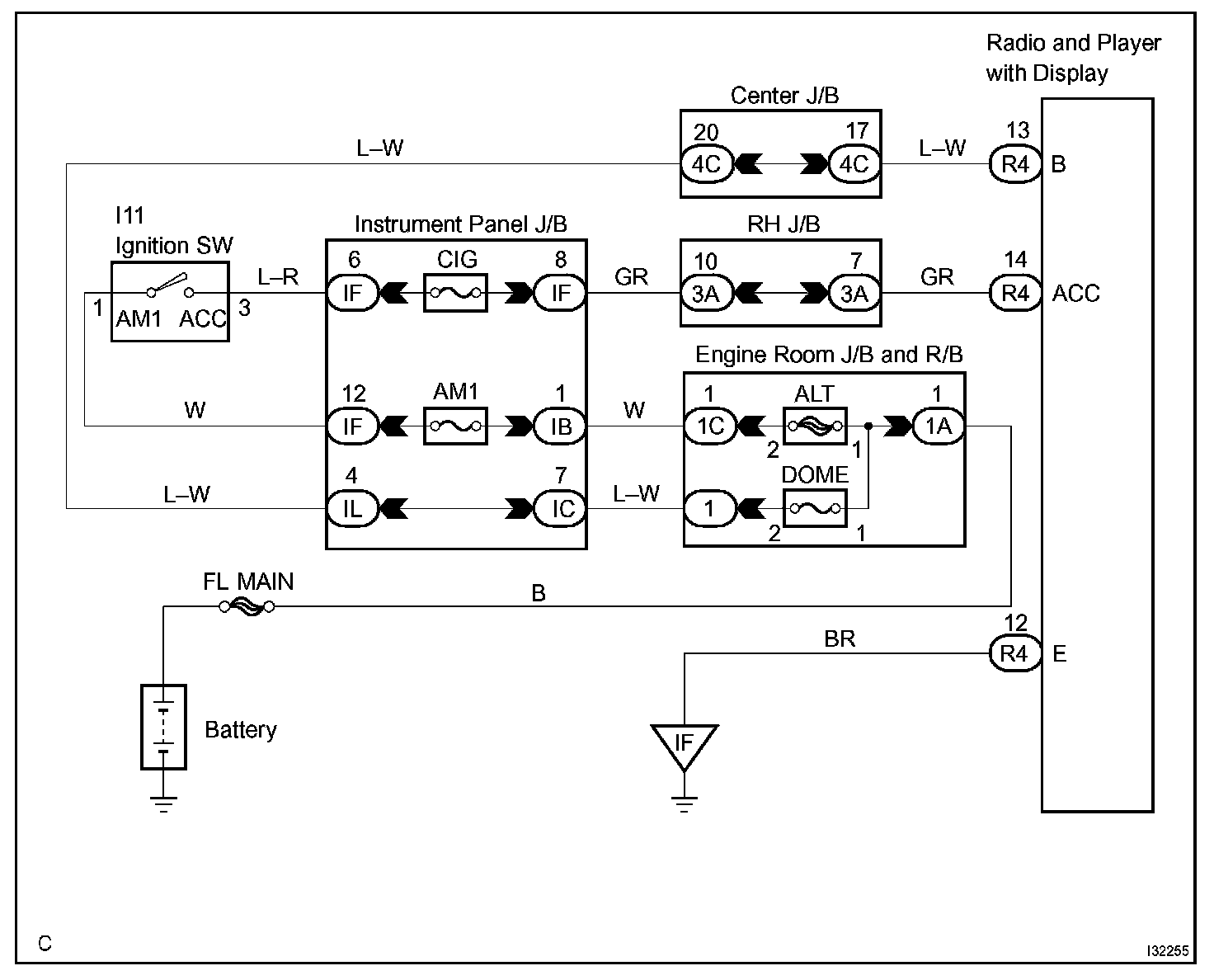

Wiring Diagram:

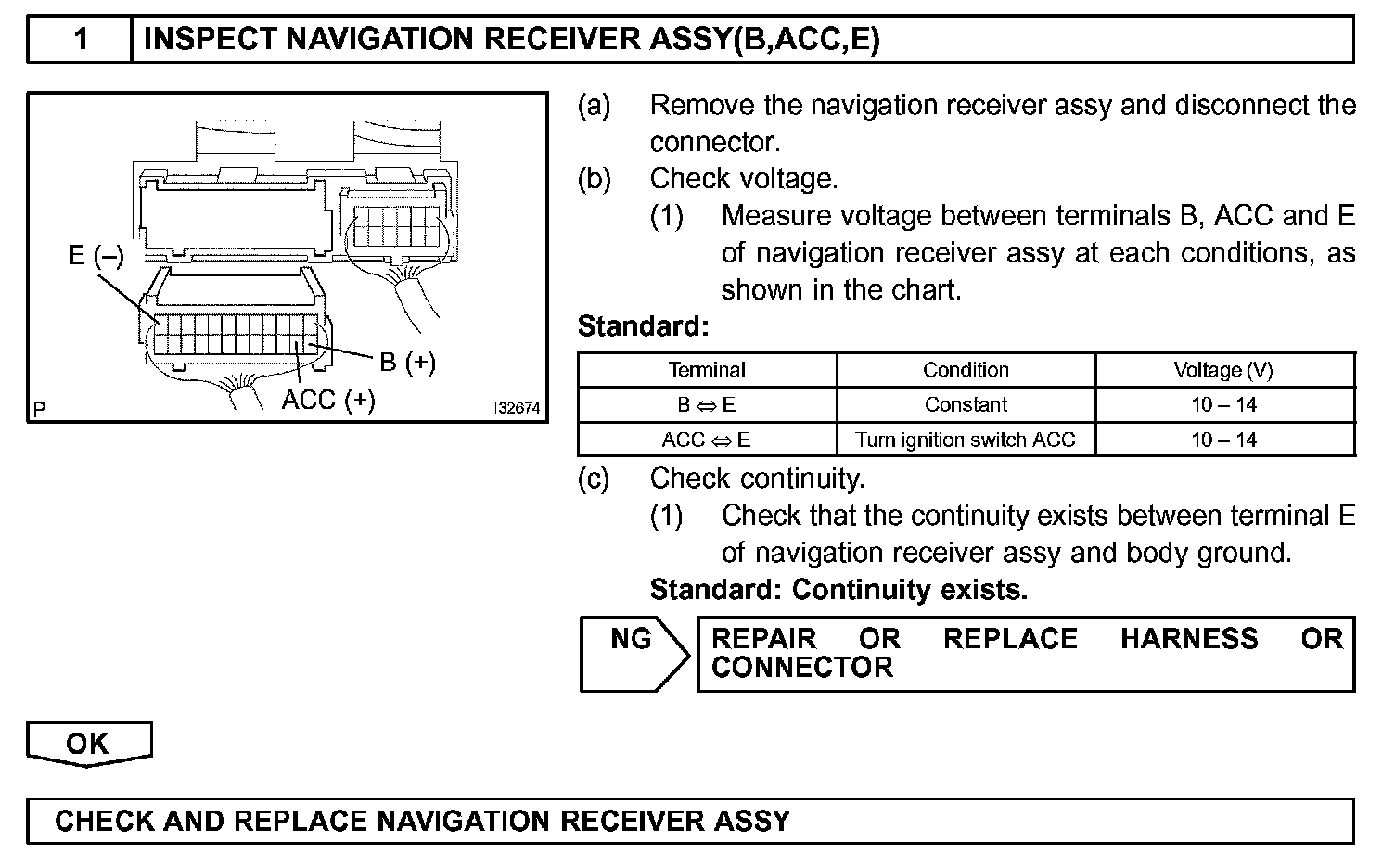

Step 1:
INSPECTION PROCEDURE
