Mechanical Diagrams
Mechanical Diagrams

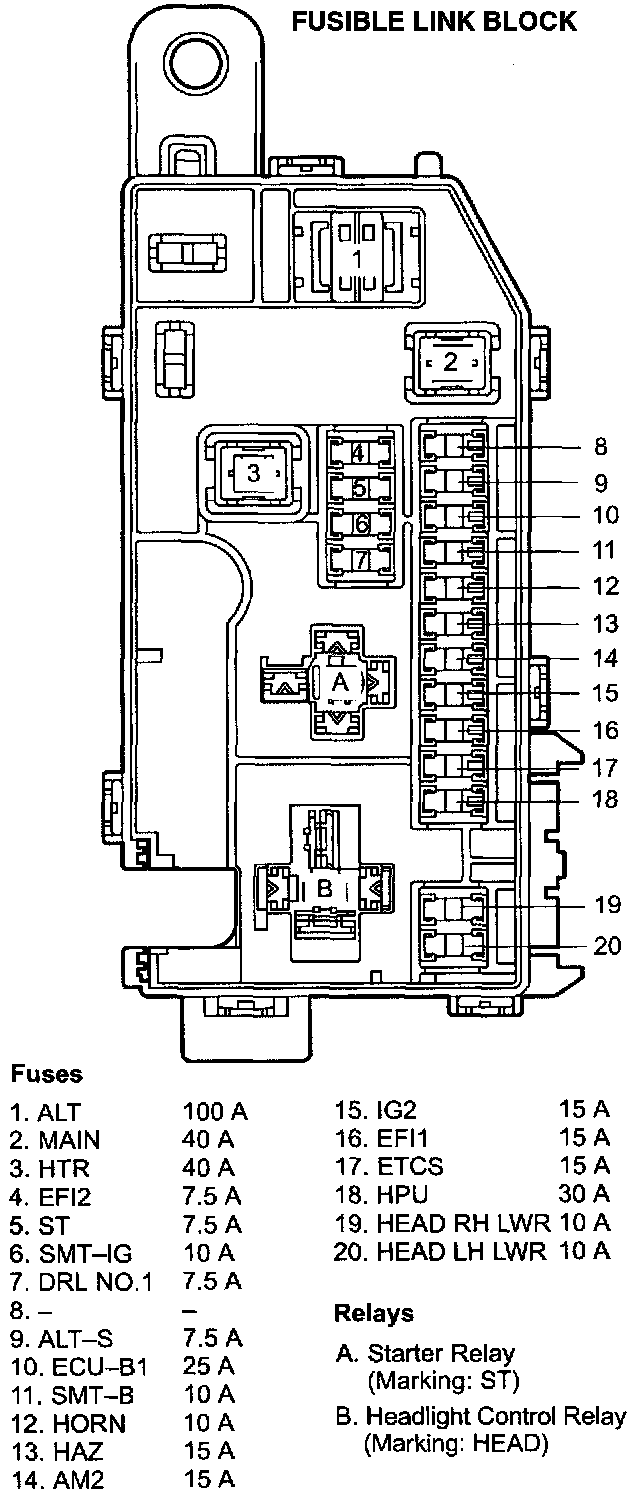

Fusible Link Block

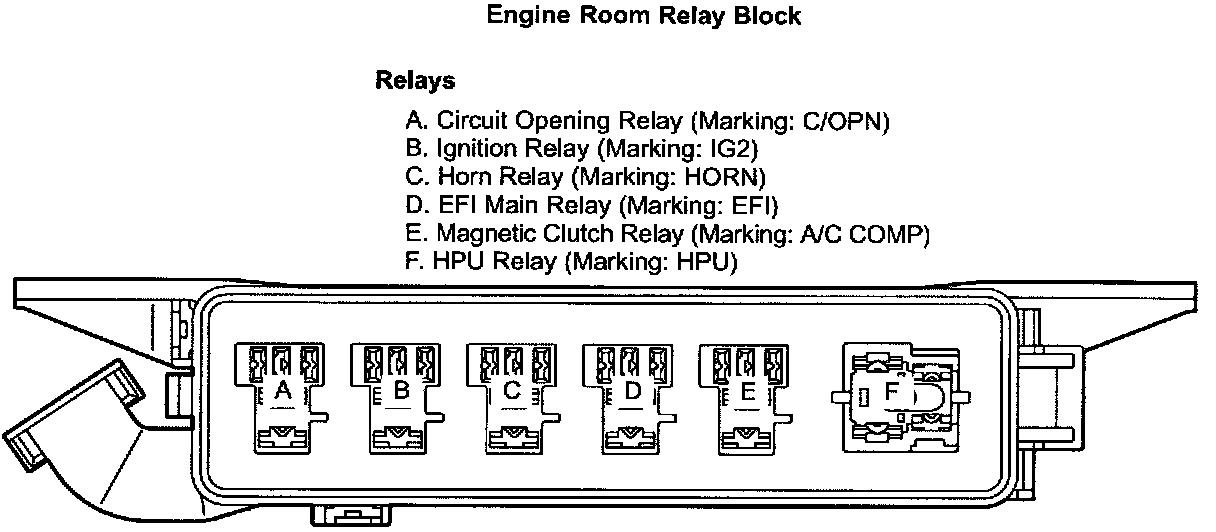

Engine Room Relay Block

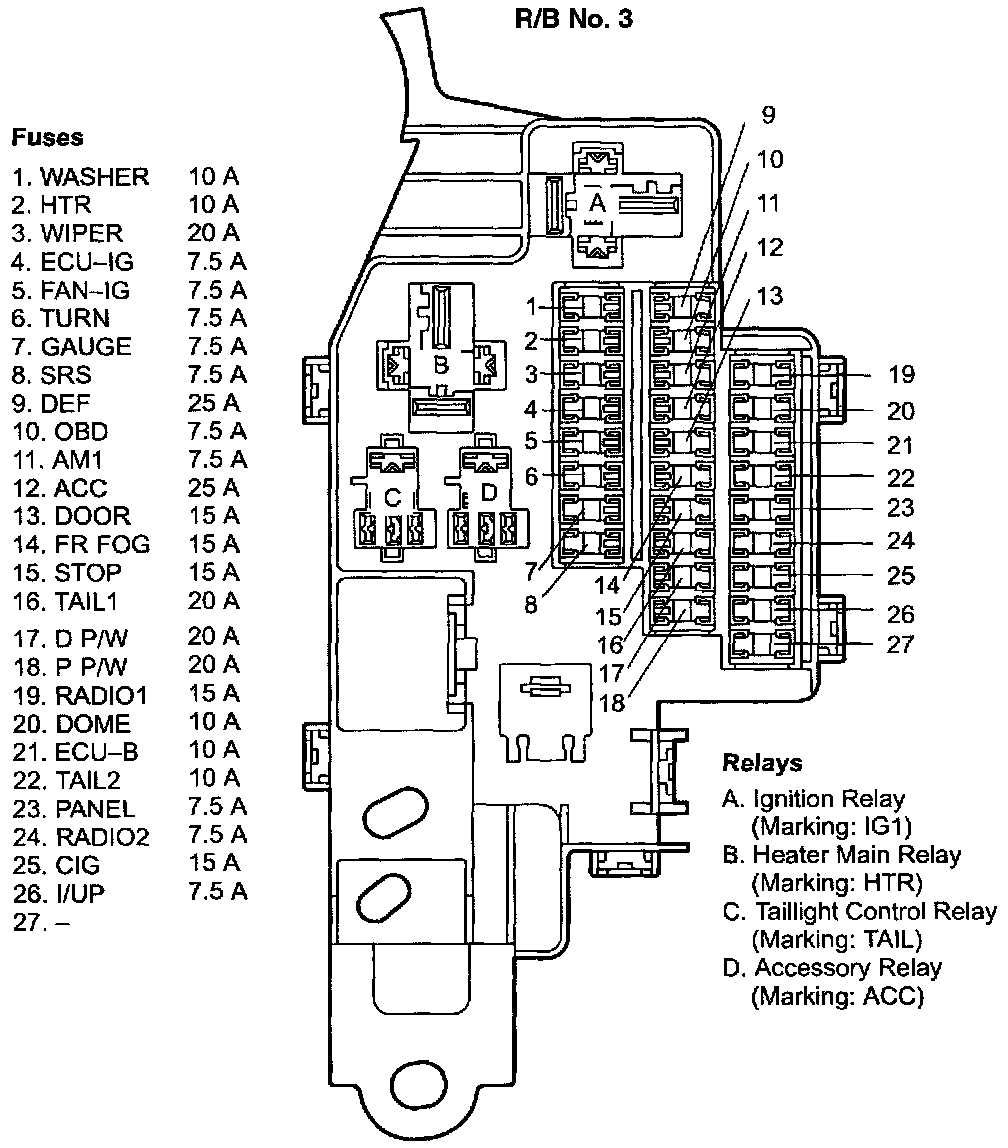

R/B No.3

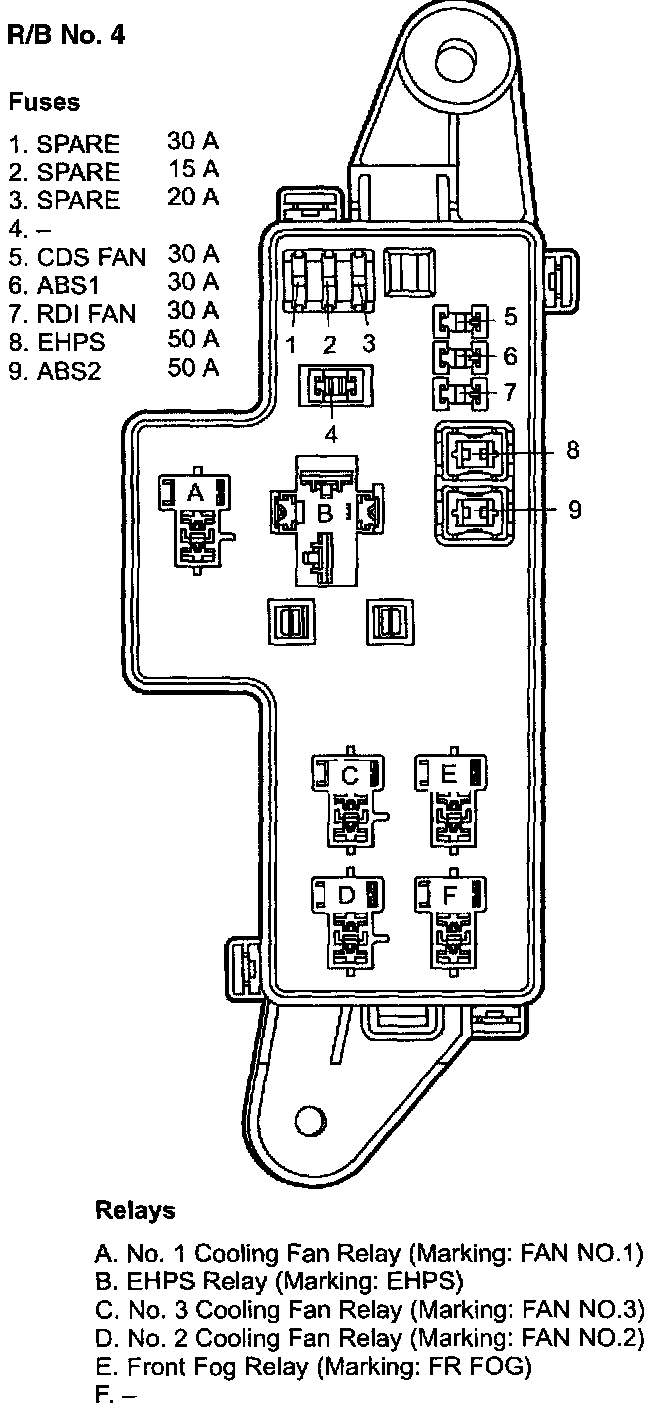

R/B No.4

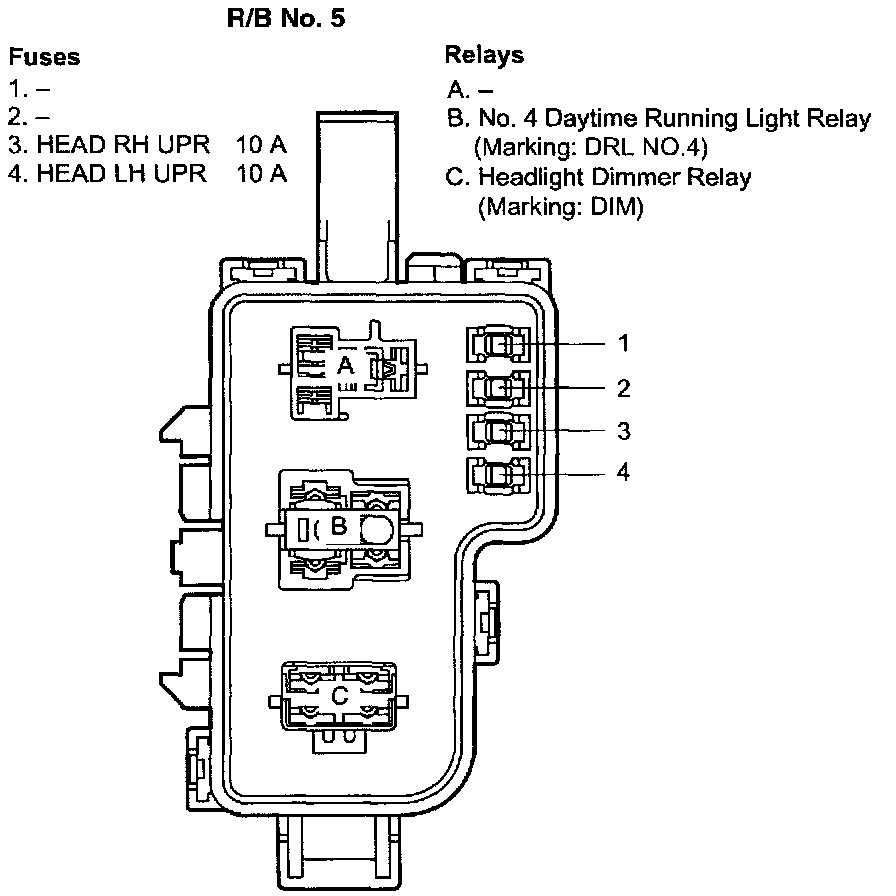

R/B No 5
