Headlamp Dimmer Relay: Testing and Inspection

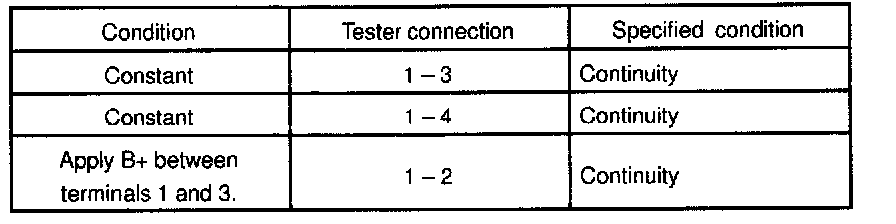

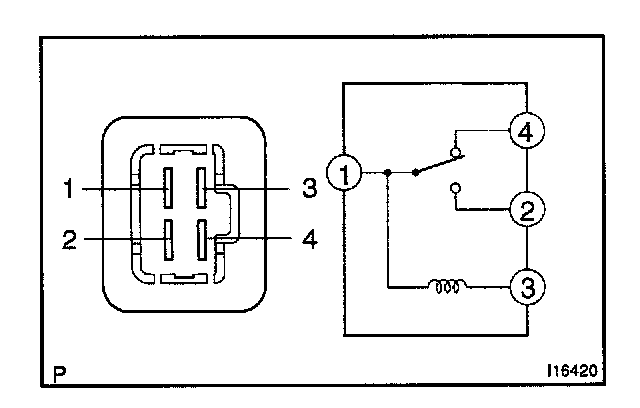

4. INSPECT HEADLIGHT DIMMER RELAY(Marking: DIM) CONTINUITY
If the continuity is not as specified, replace the relay.
