Manual Transmission/Transaxle
>>
System Diagram
>>

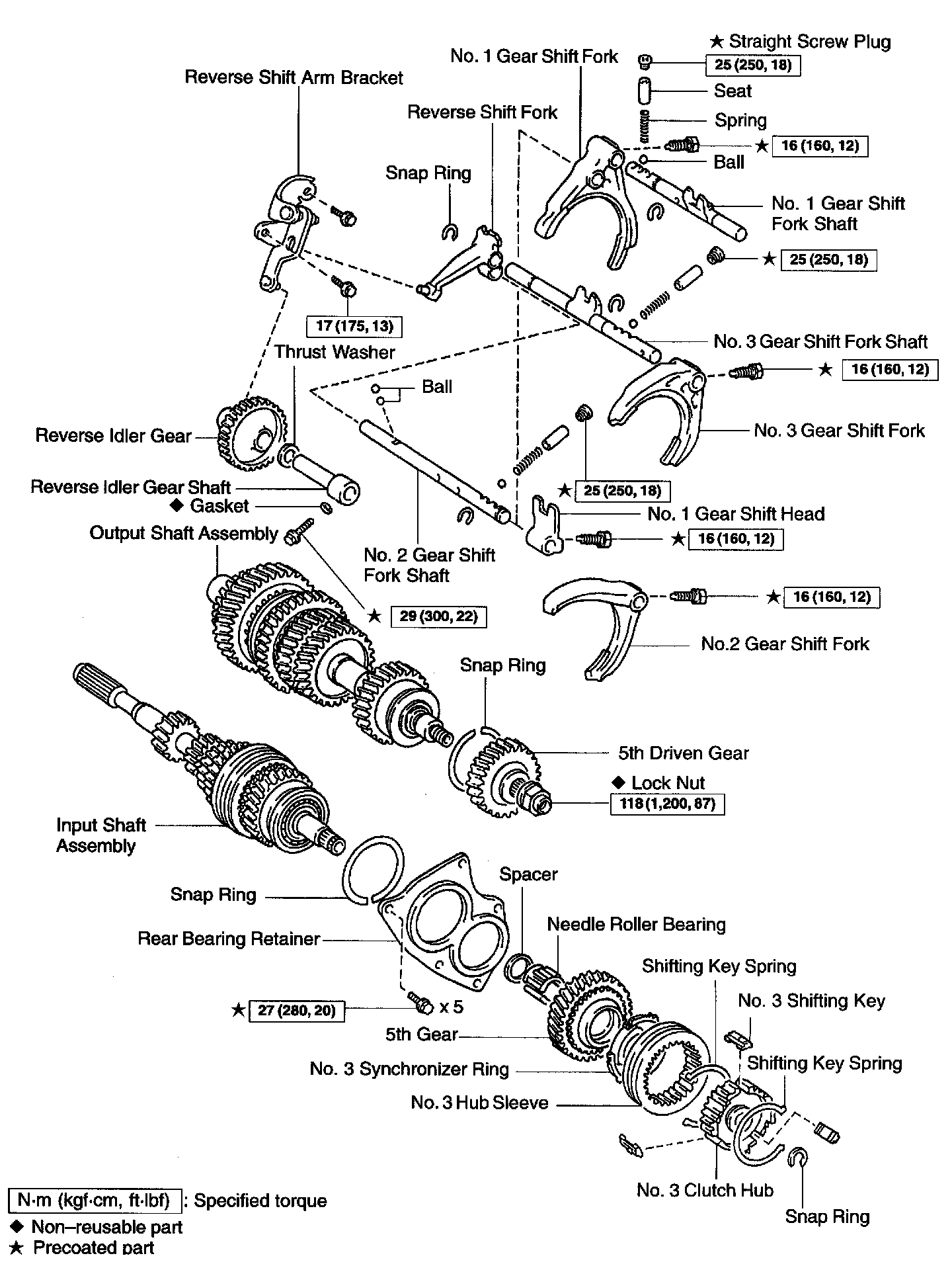

Manual Transaxle Assembly
Manual Transaxle Assembly
MANUAL TRANSAXLE ASSEMBLY
