Home
>>
Toyota
>>
2004
>>
MR2 Spyder L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatically Shifted Manual Transmission/Transaxle
>>
System Diagram
>>

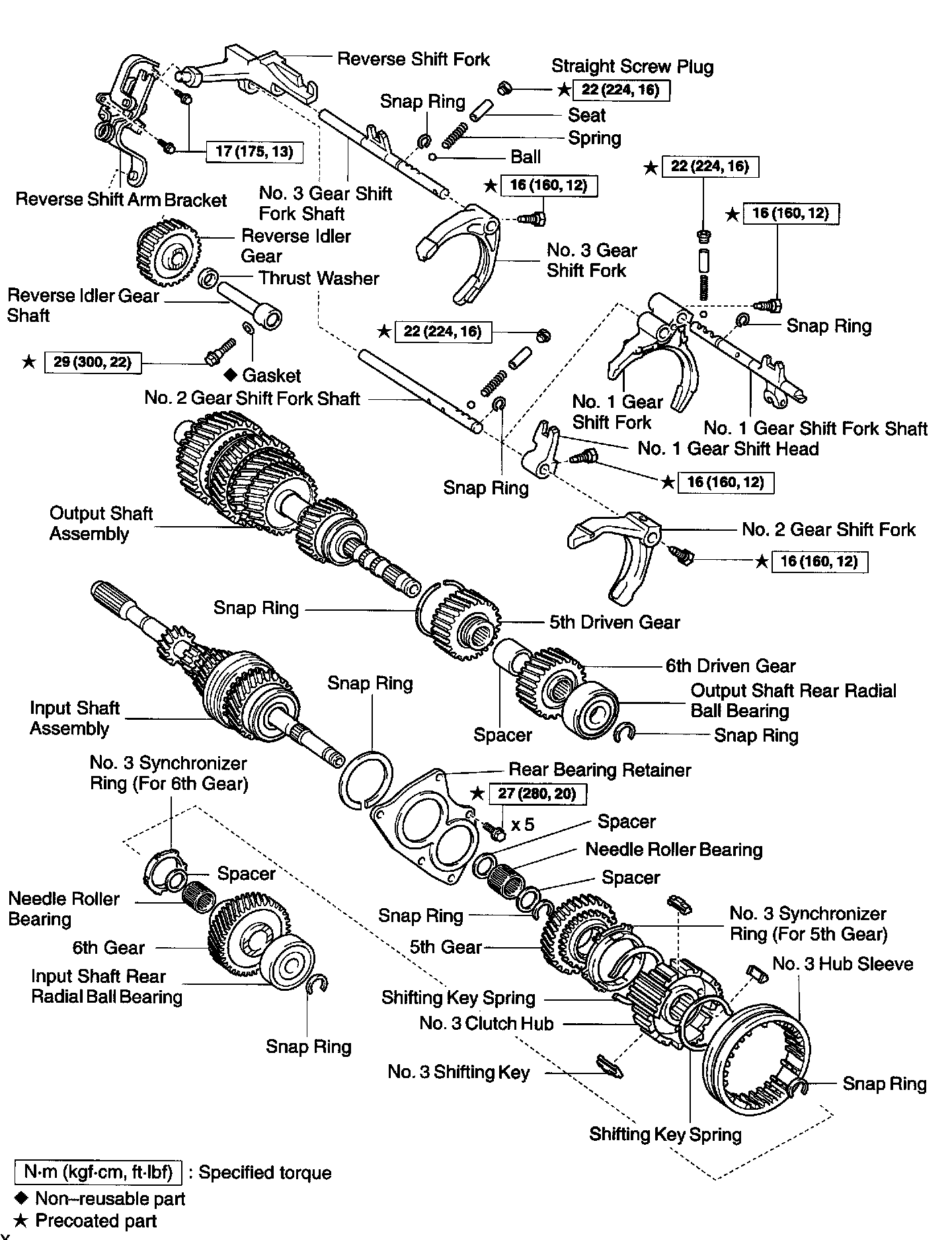

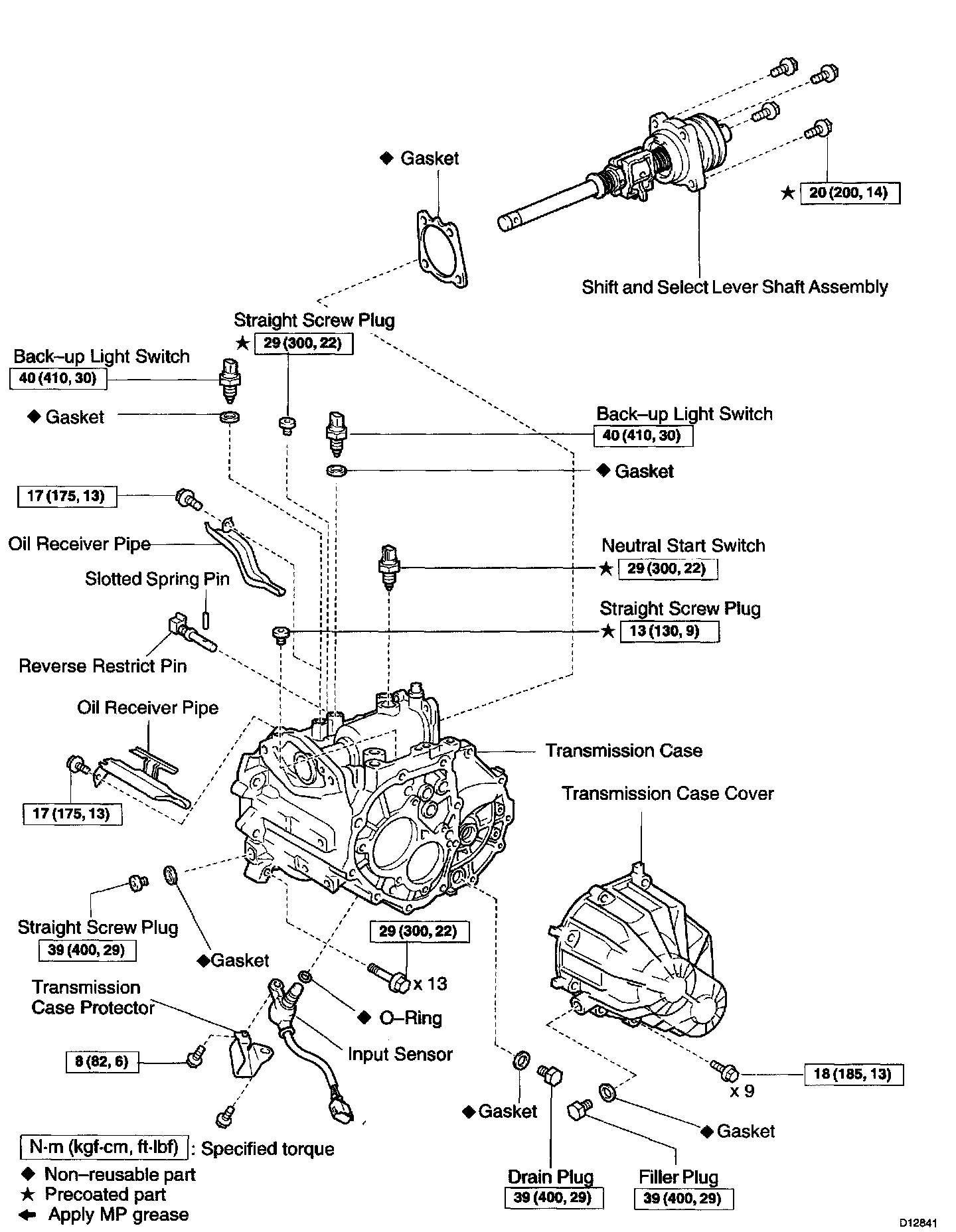

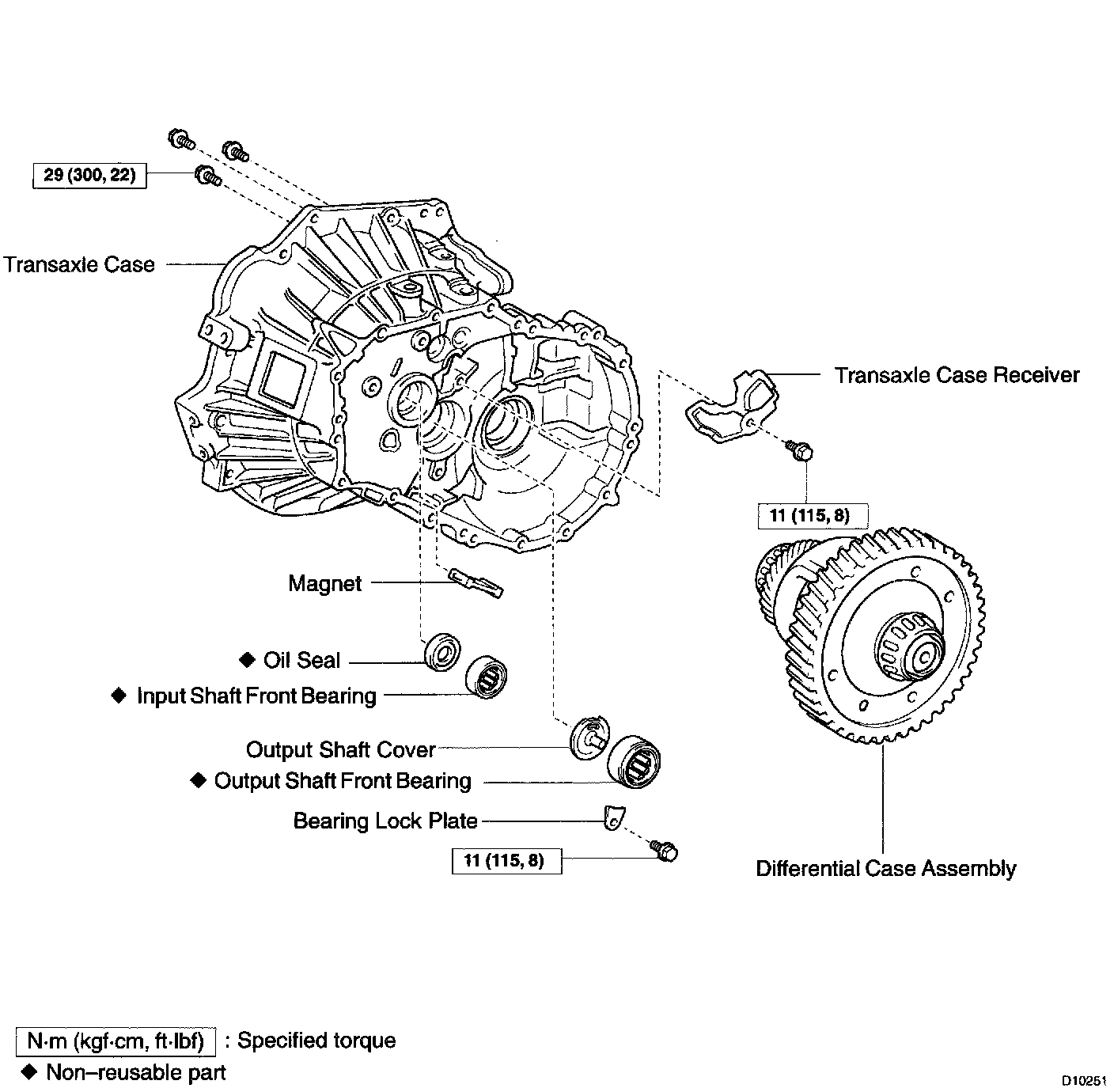

Sequential Manual Transmission Assembly
Sequential Manual Transmission Assembly
SEQUENTIAL MANUAL TRANSMISSION ASSEMBLY
