Disassembly and Reassembly

DISASSEMBLY

1. REMOVE STEERING WHEEL




2. REMOVE SPIRAL CABLE

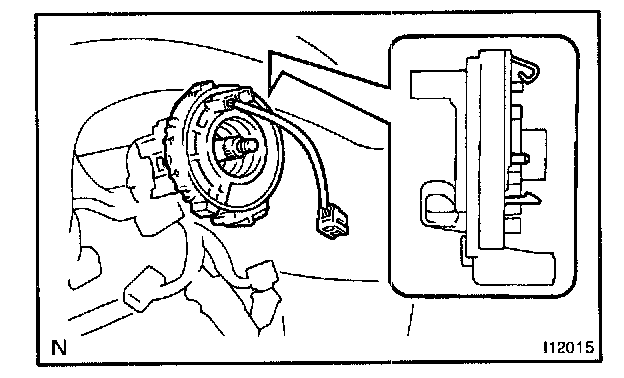

Remove the spiral cable from the turn signal bracket.

REASSEMBLY
Installation is in the reverse order of disassembly.
