Home
>>
Toyota
>>
2004
>>
Corolla L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Problem Symptoms Table
Problem Symptoms Table

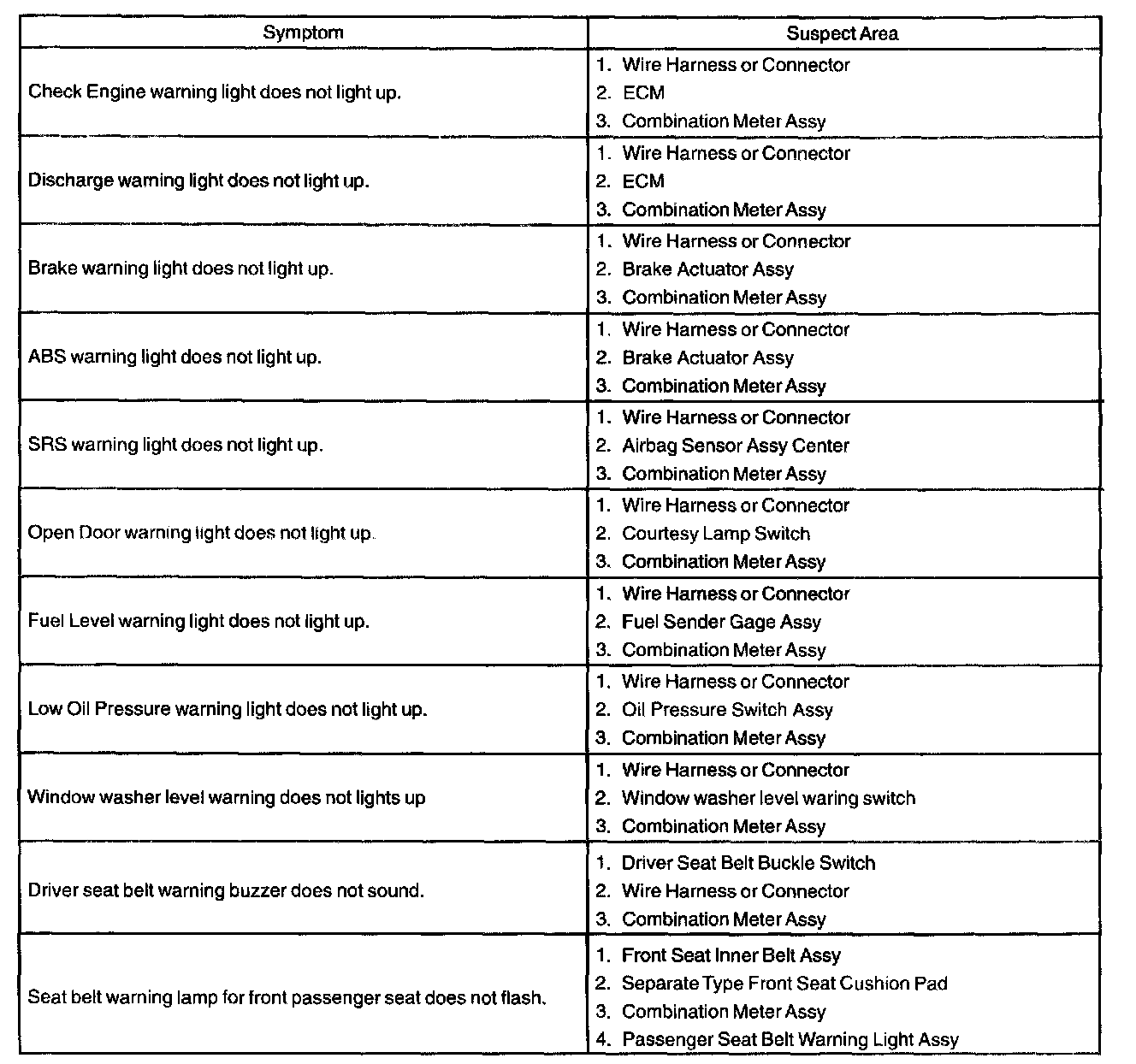

Problem Symptoms Table - Warning Lights (Combination Meter):

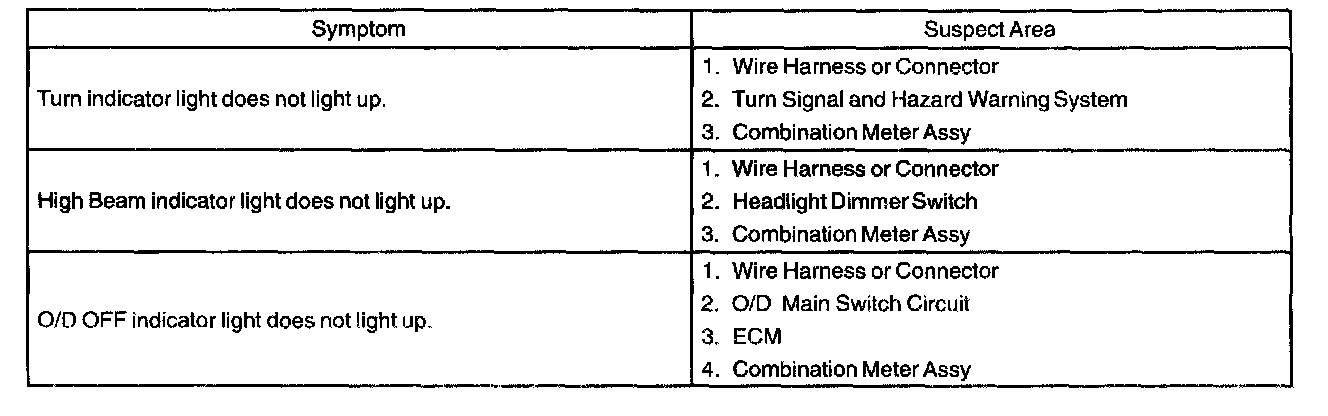

Problem Symptoms Table - Indicator Lights (Combination Meter):
