Pressing Power Switch Does Not Start System
Pressing Power Switch Does Not Start System
PRESSING POWER SWITCH DOES NOT START SYSTEM

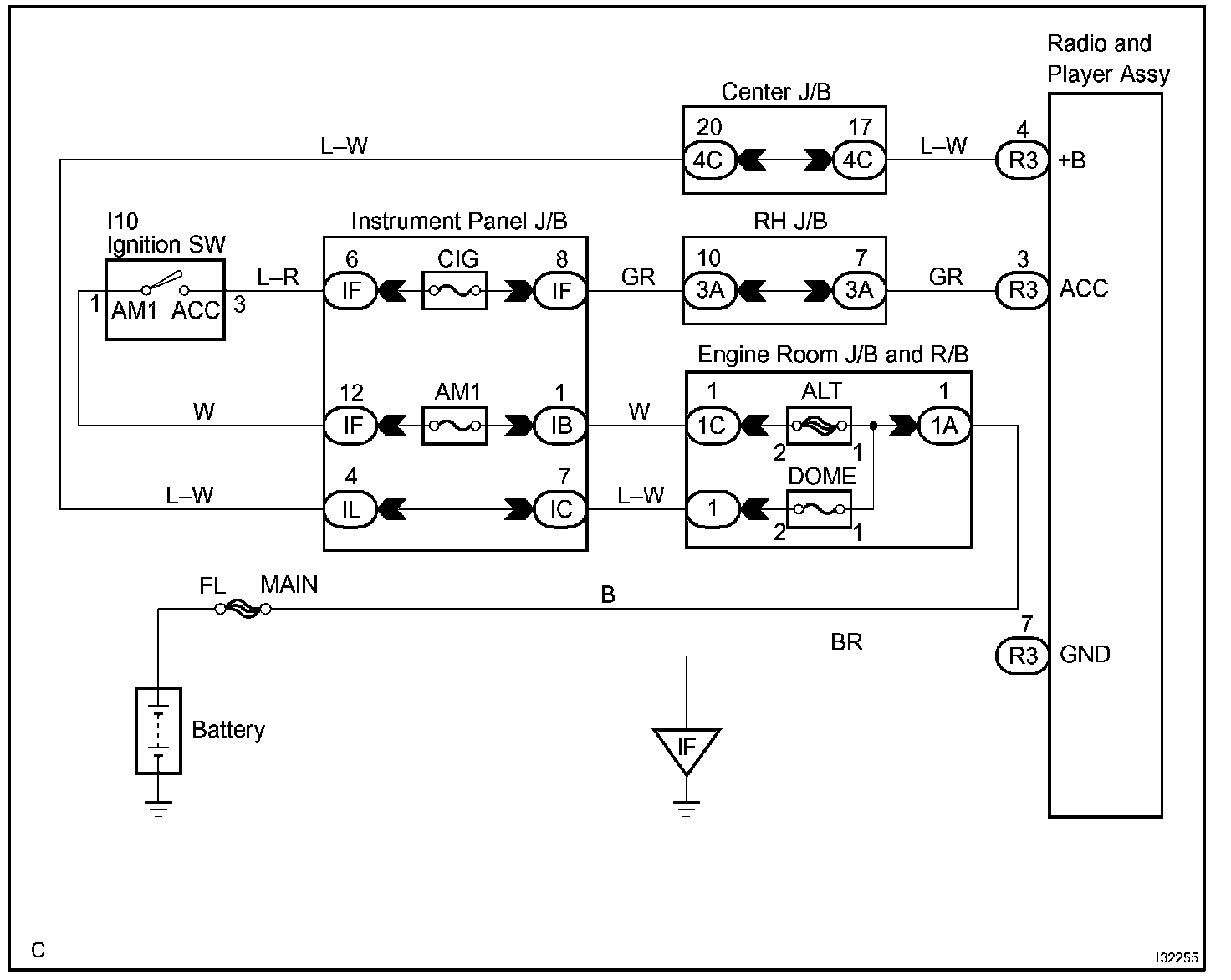

Wiring Diagram:

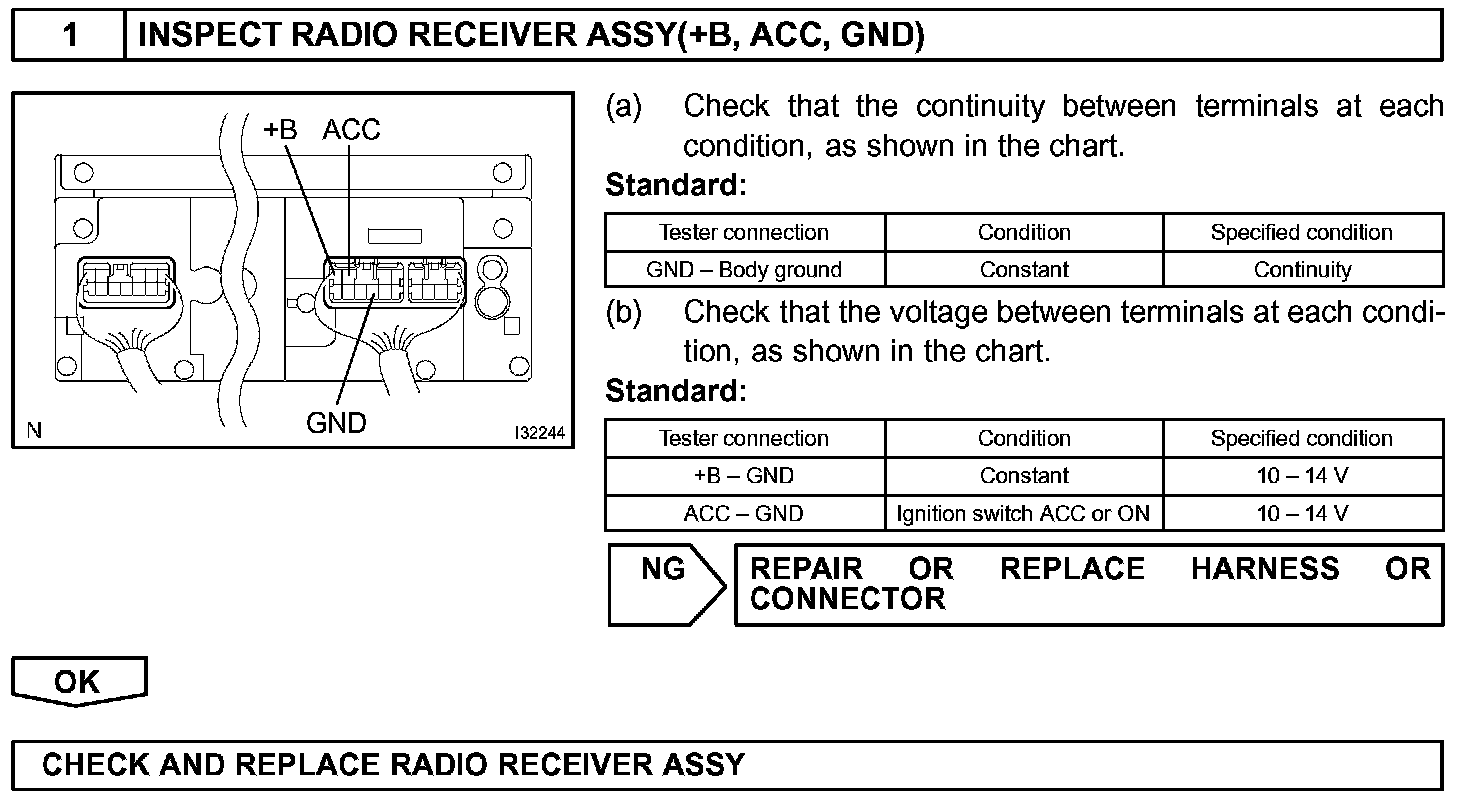

Step 1:
INSPECTION PROCEDURE
