Wiper and Washer Systems
>>
Diagrams
>>
Exploded Views
Exploded Views

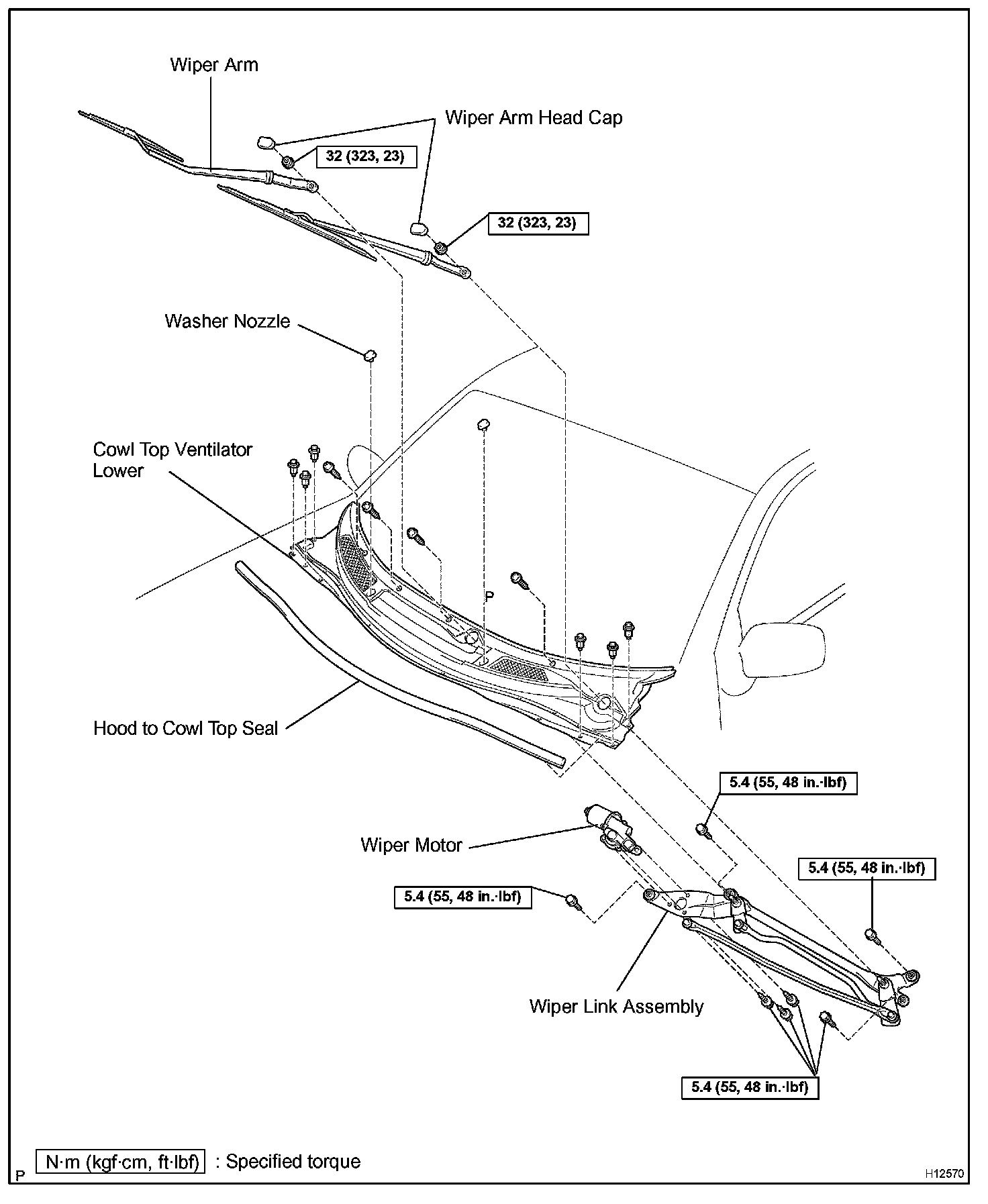

Front Wiper And Washer:

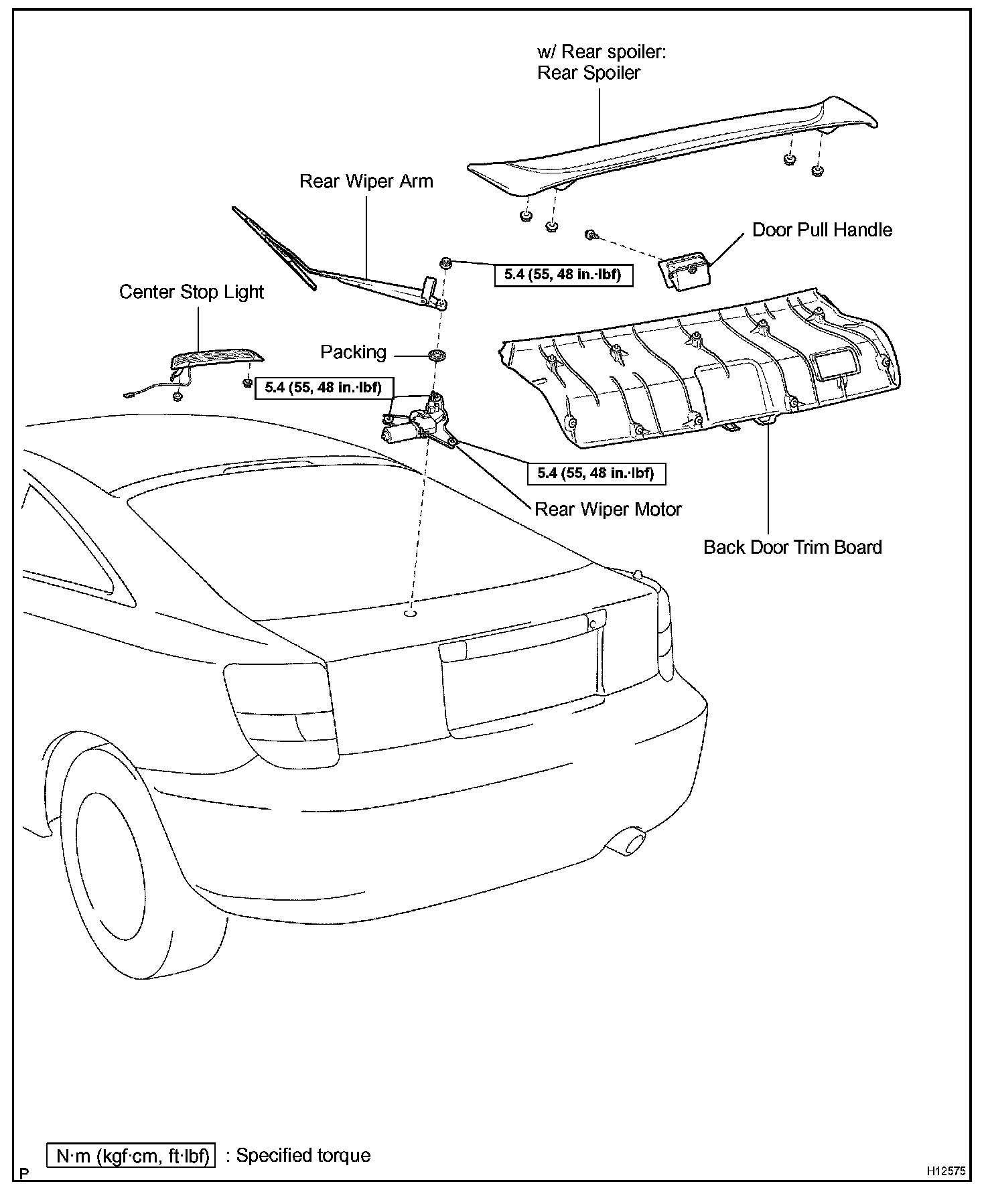

Rear Wiper And Washer:
