Daytime Running Lamp Relay: Testing and Inspection

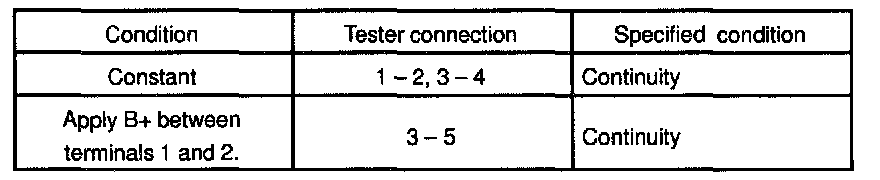

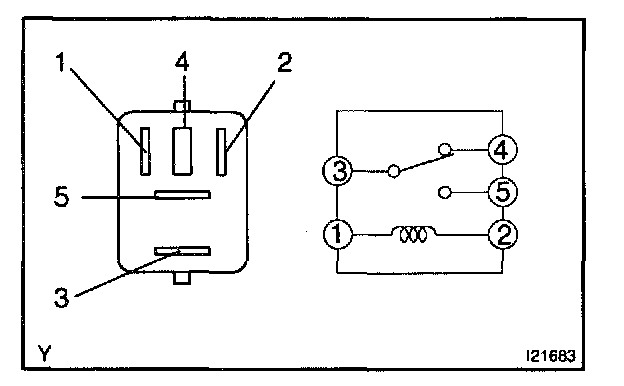

INSPECT DAYTIME RUNNING LIGHT NO. 2 DIMMER RELAY CONTINUITY
If continuity is not as specified, replace the relay.







INSPECT DAYTIME RUNNING LIGHT NO.3 RELAY CONTINUITY
If continuity is not as specified, replace the relay.







INSPECT DAYTIME RUNNING LIGHT NO.4 RELAY CONTINUITY
If continuity is not as specified, replace the relay.
