Home
>>
Toyota
>>
2004
>>
Celica L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Tail Lamp
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
Symptom Related Diagnostic Procedures

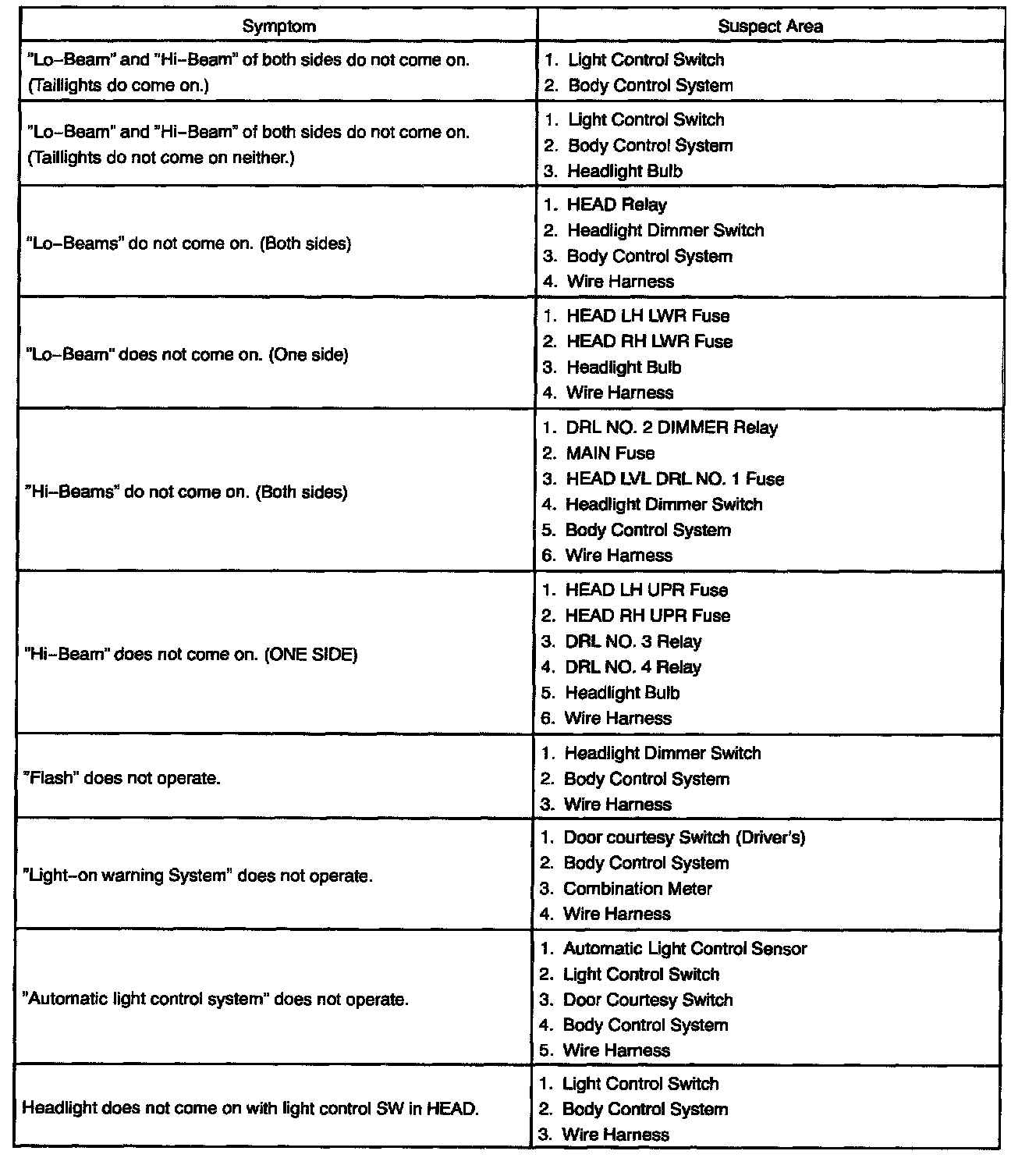

Problem Symptoms Table - Headlight (Halogen) And Taillight System (Part 1):

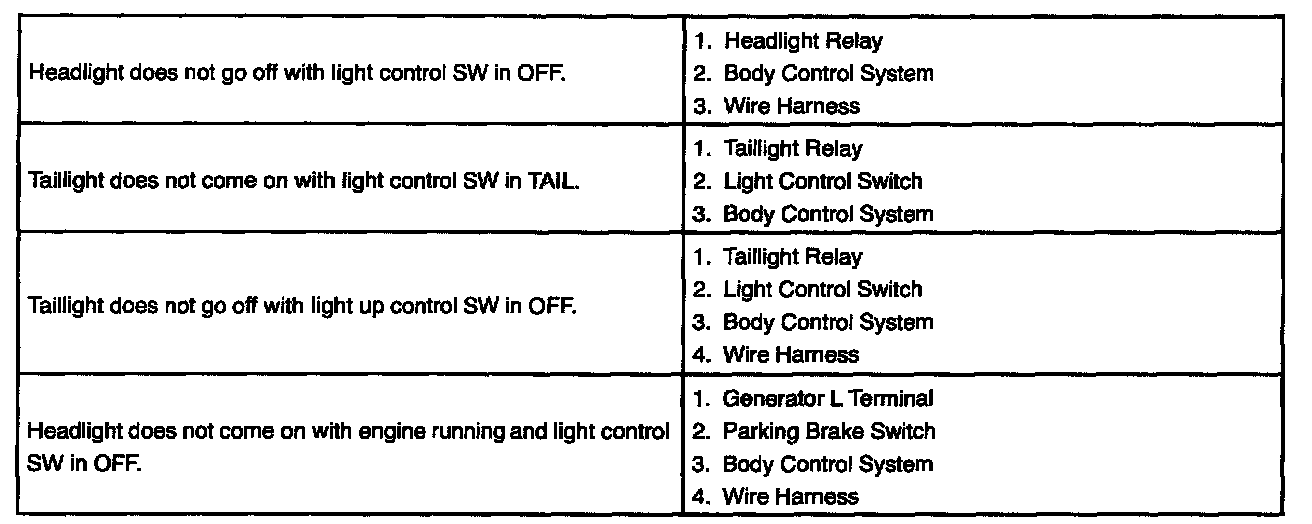

Problem Symptoms Table - Headlight (Halogen) And Taillight System (Part 2):
