Toyota
>>
2004
>>
Celica L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Starter Motor
Starter Motor

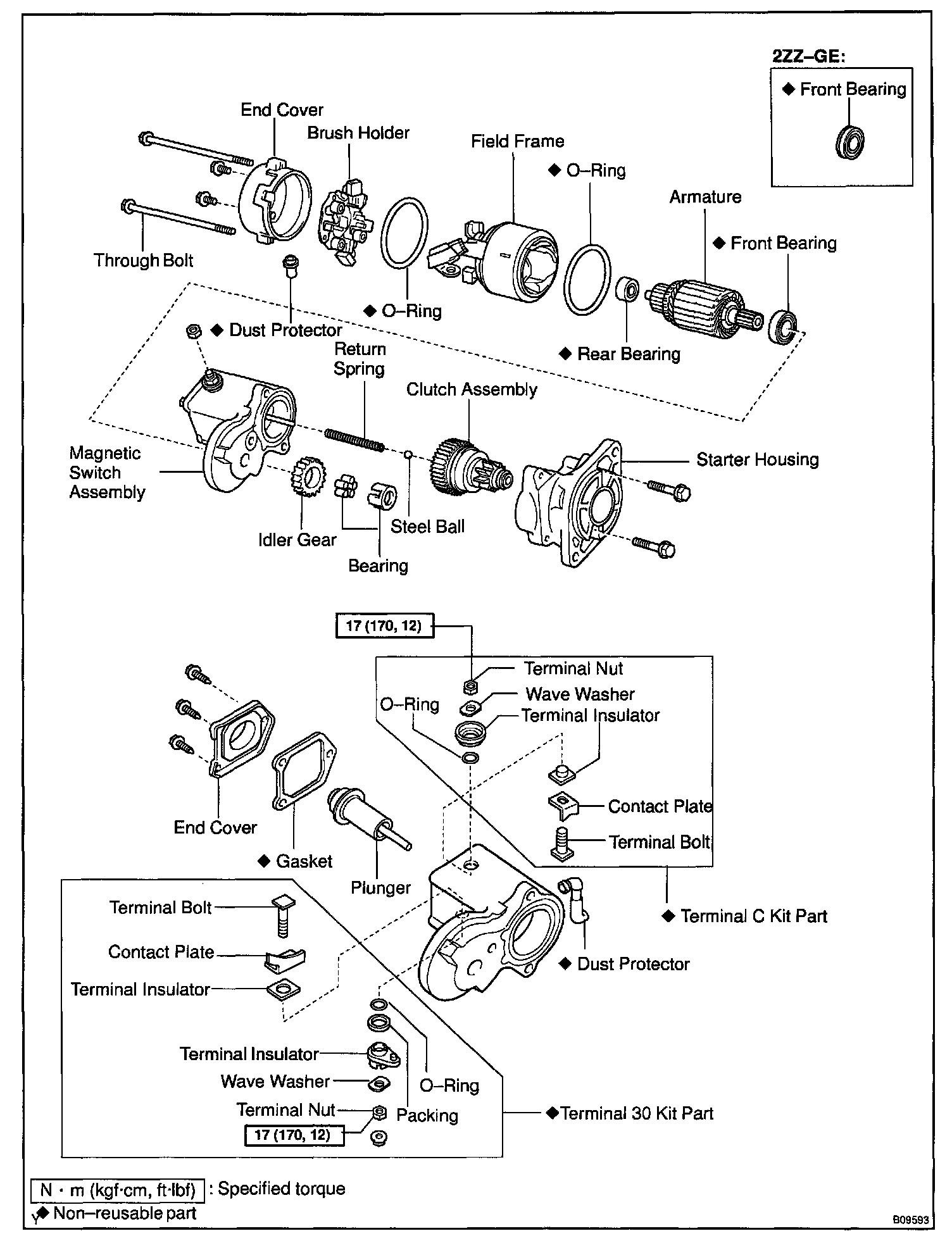

Starter (Part 1):

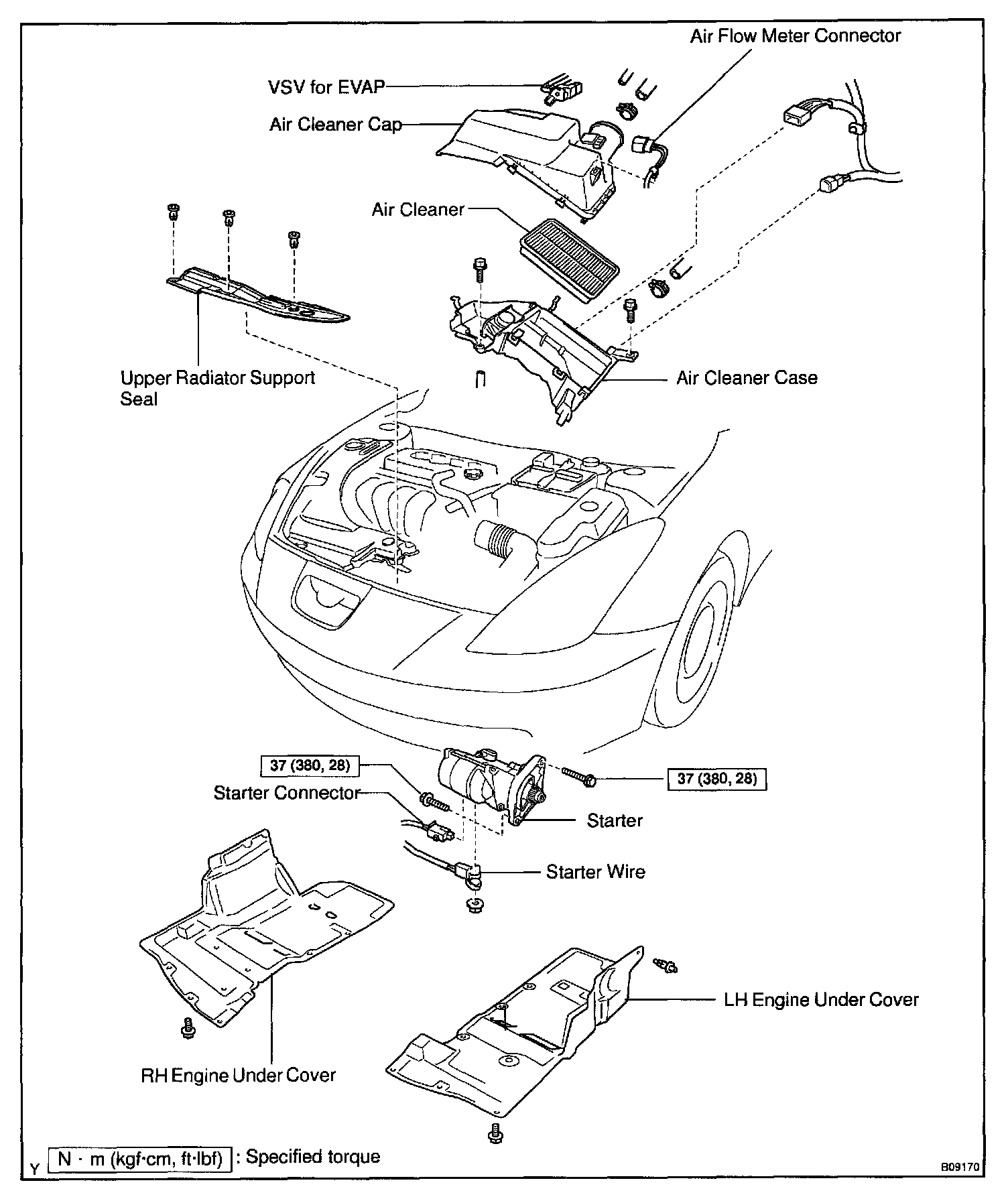

Starter (Part 2):
