Toyota
>>
2004
>>
Celica L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Cylinder Block Assembly
Cylinder Block Assembly

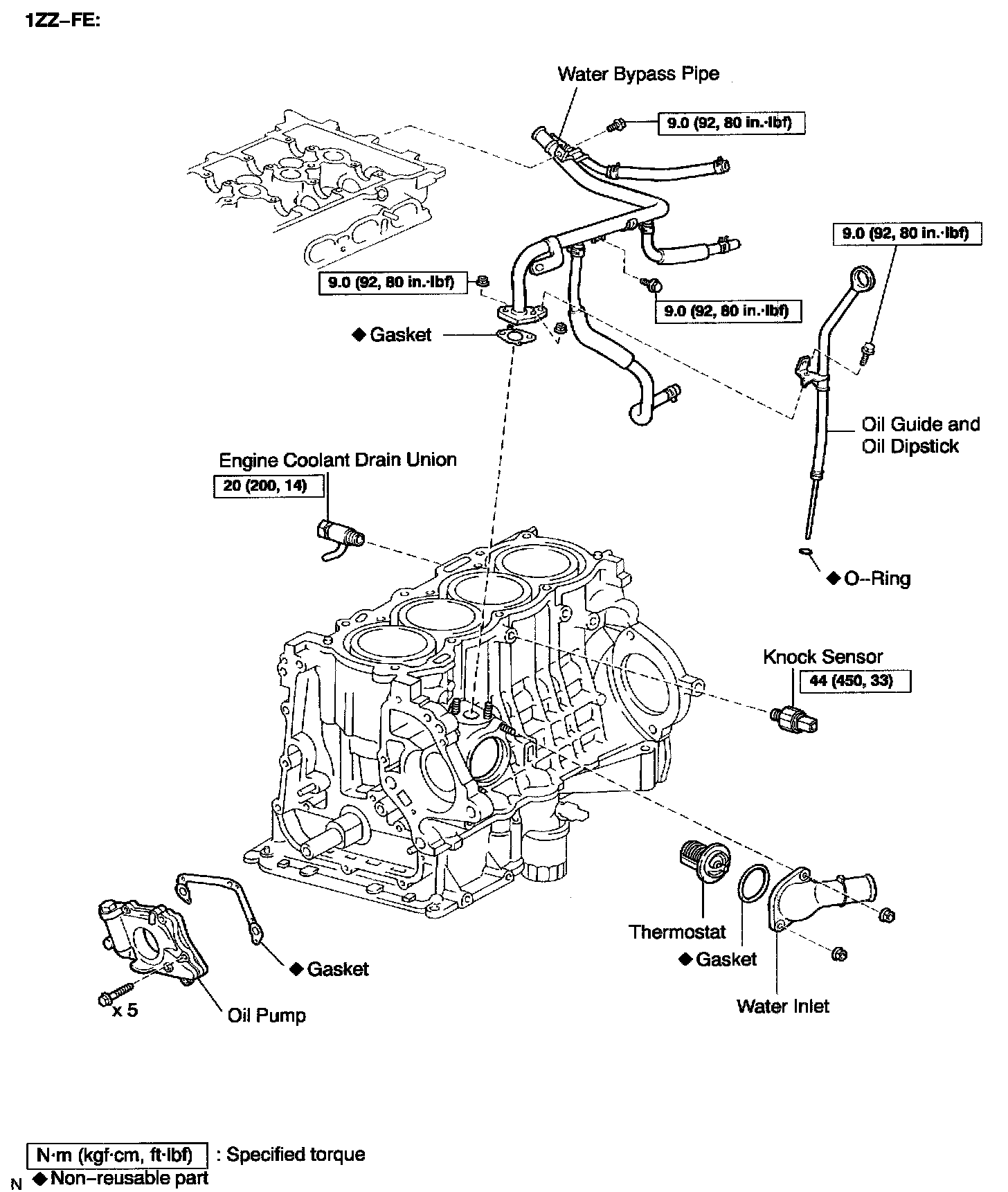

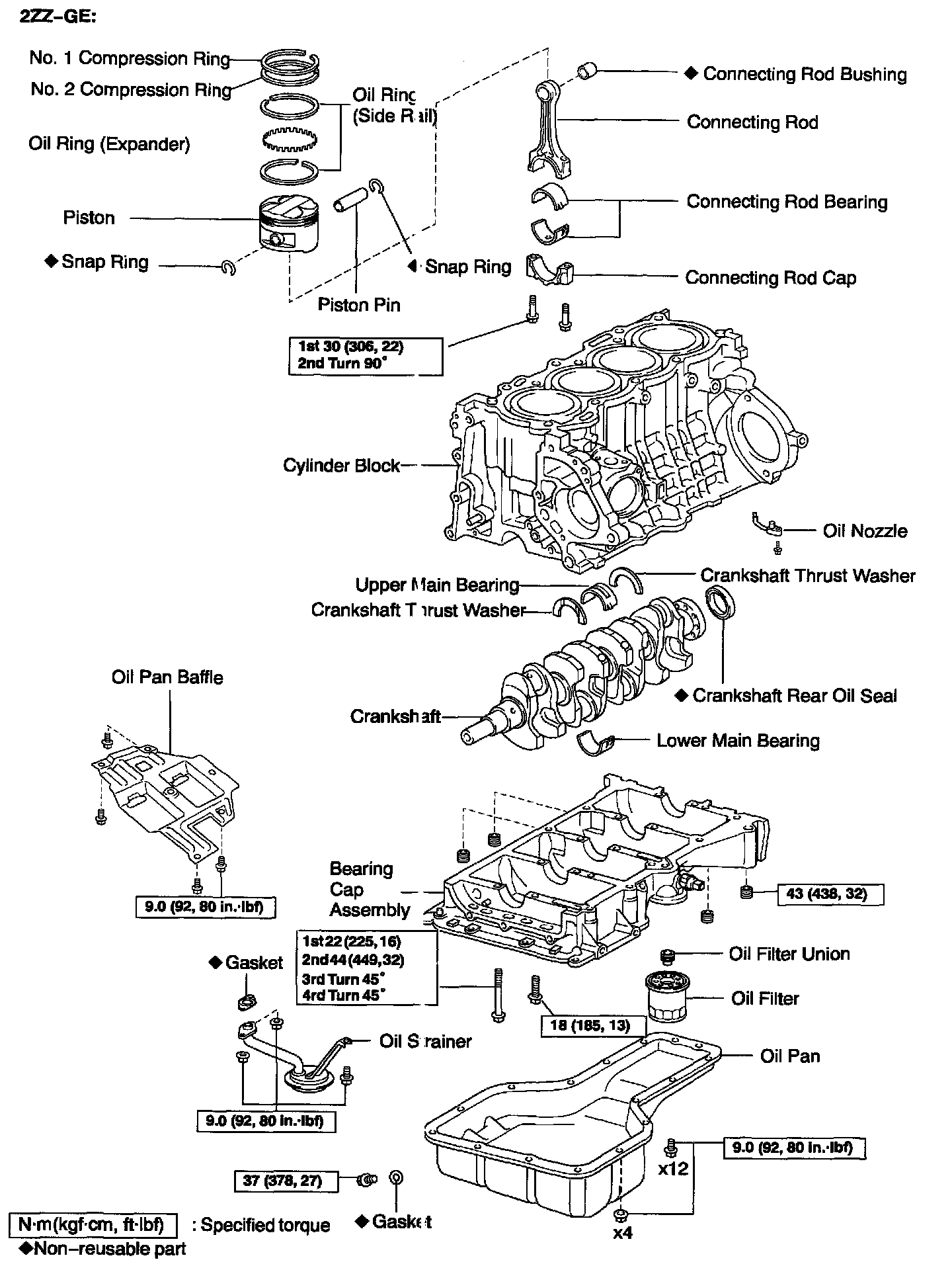

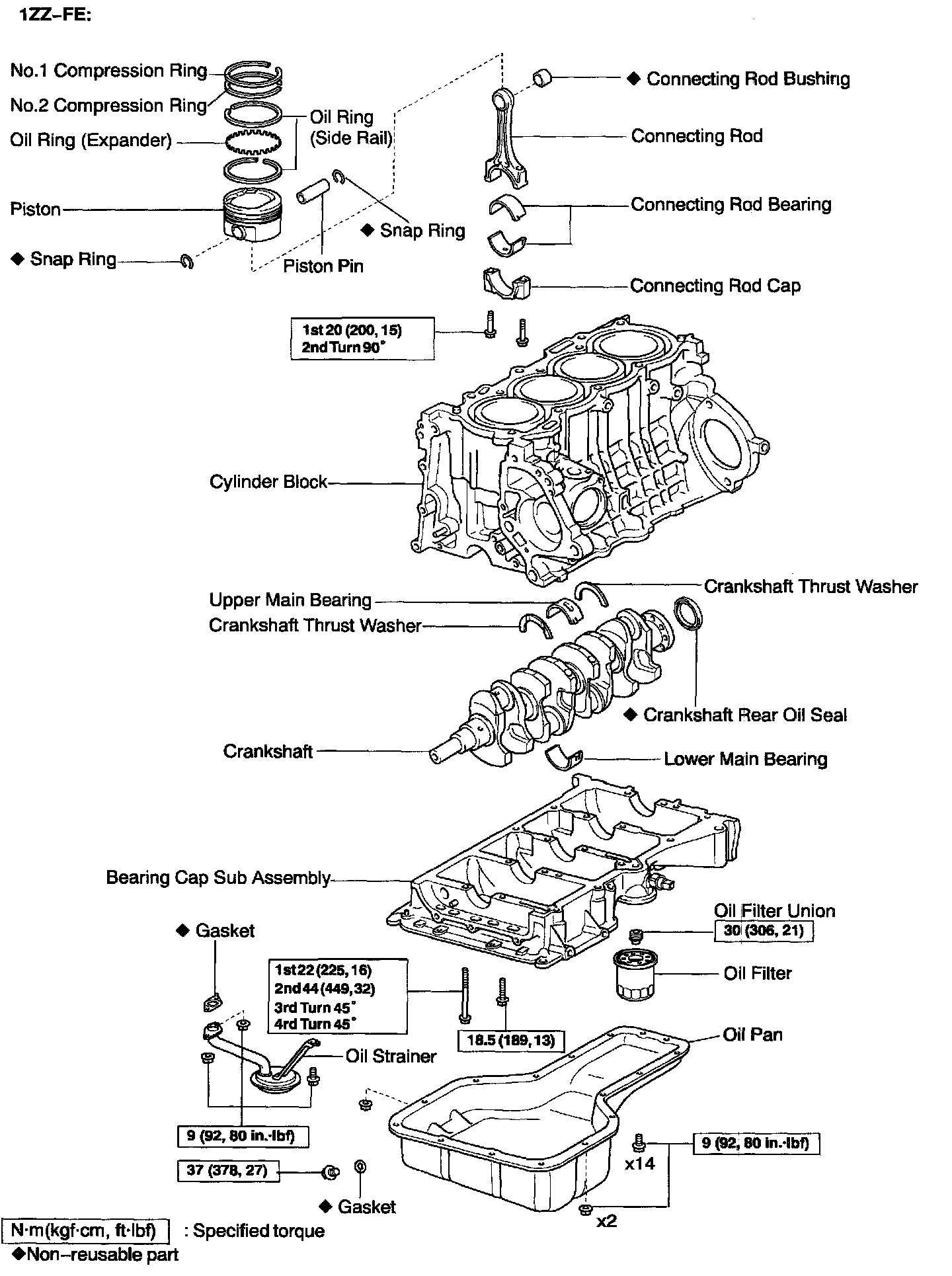

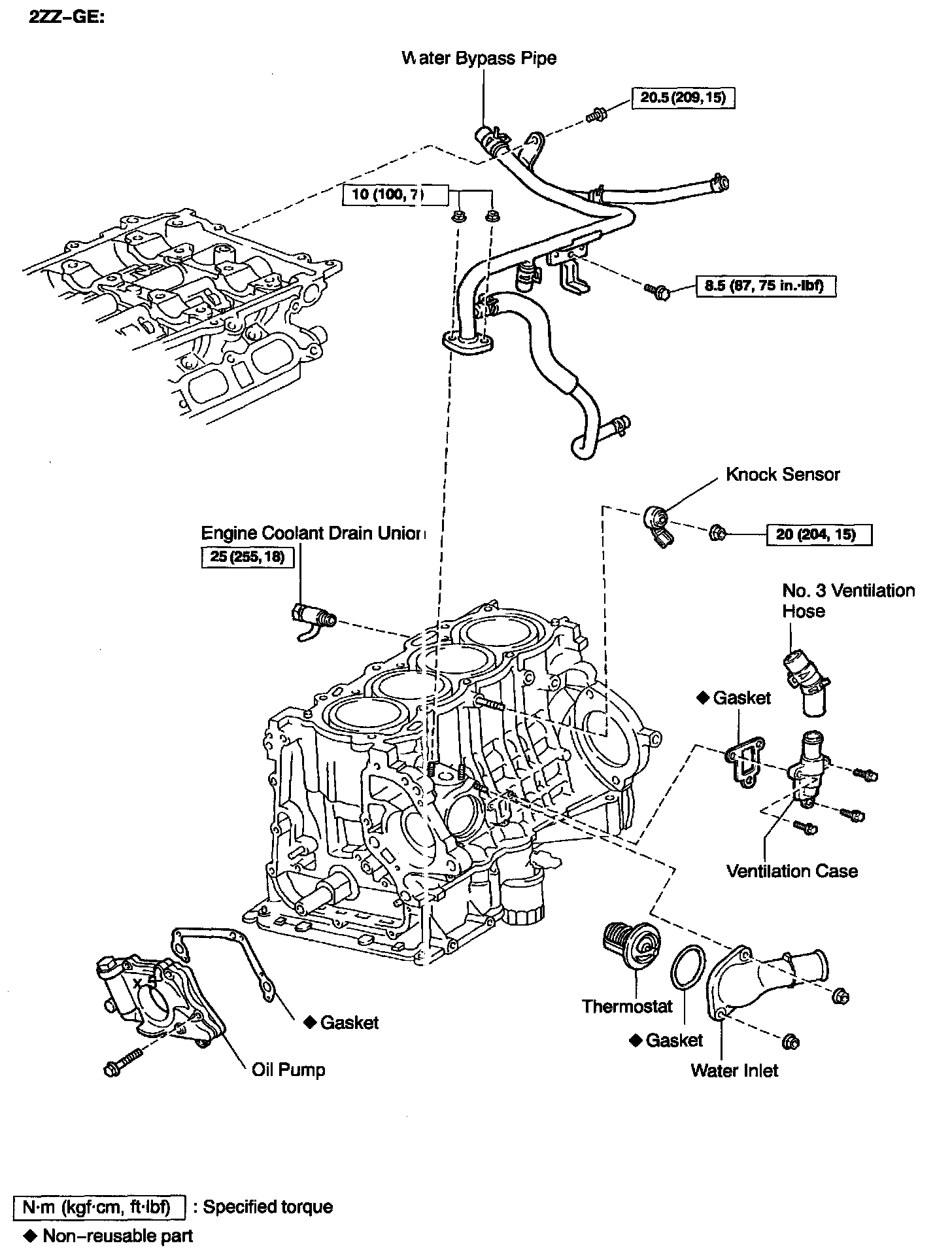

CYLINDER BLOCK OVERHAUL W/ RELATED COMPONENTS
