Control Switch Circuit (Cruise Control Switch)
CIRCUIT DESCRIPTIONThis circuit carries the SET/COAST, RESUME/ACCEL and CANCEL signals (each voltage) to the ECU.
Wiring Diagram:

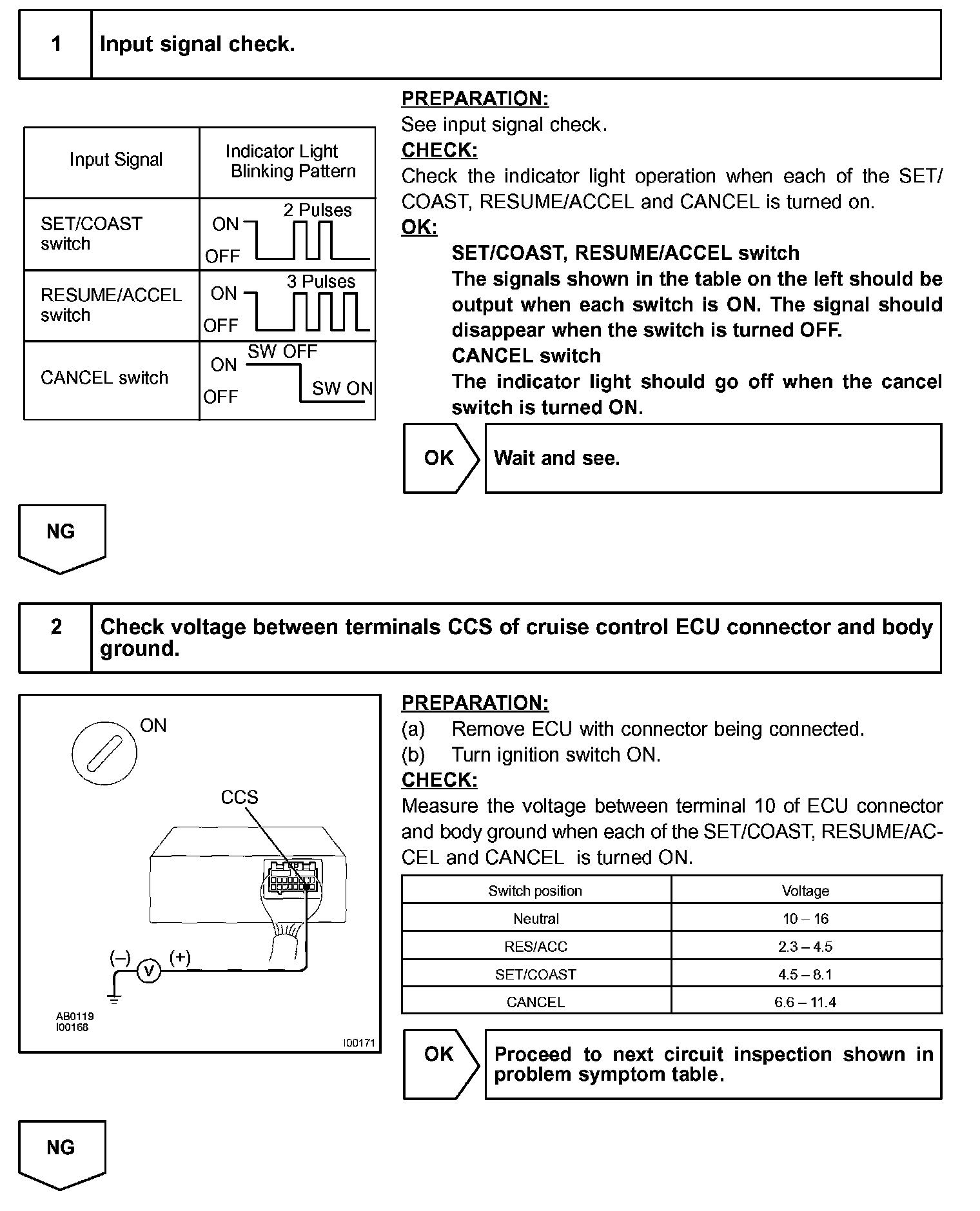

Step 1 - 2:
Step 3 - 5:
INSPECTION PROCEDURE
This circuit carries the SET/COAST, RESUME/ACCEL and CANCEL signals (each voltage) to the ECU.
INSPECTION PROCEDURE
