Rear Defogger Relay Circuit
REAR DEFOGGER RELAY CIRCUIT

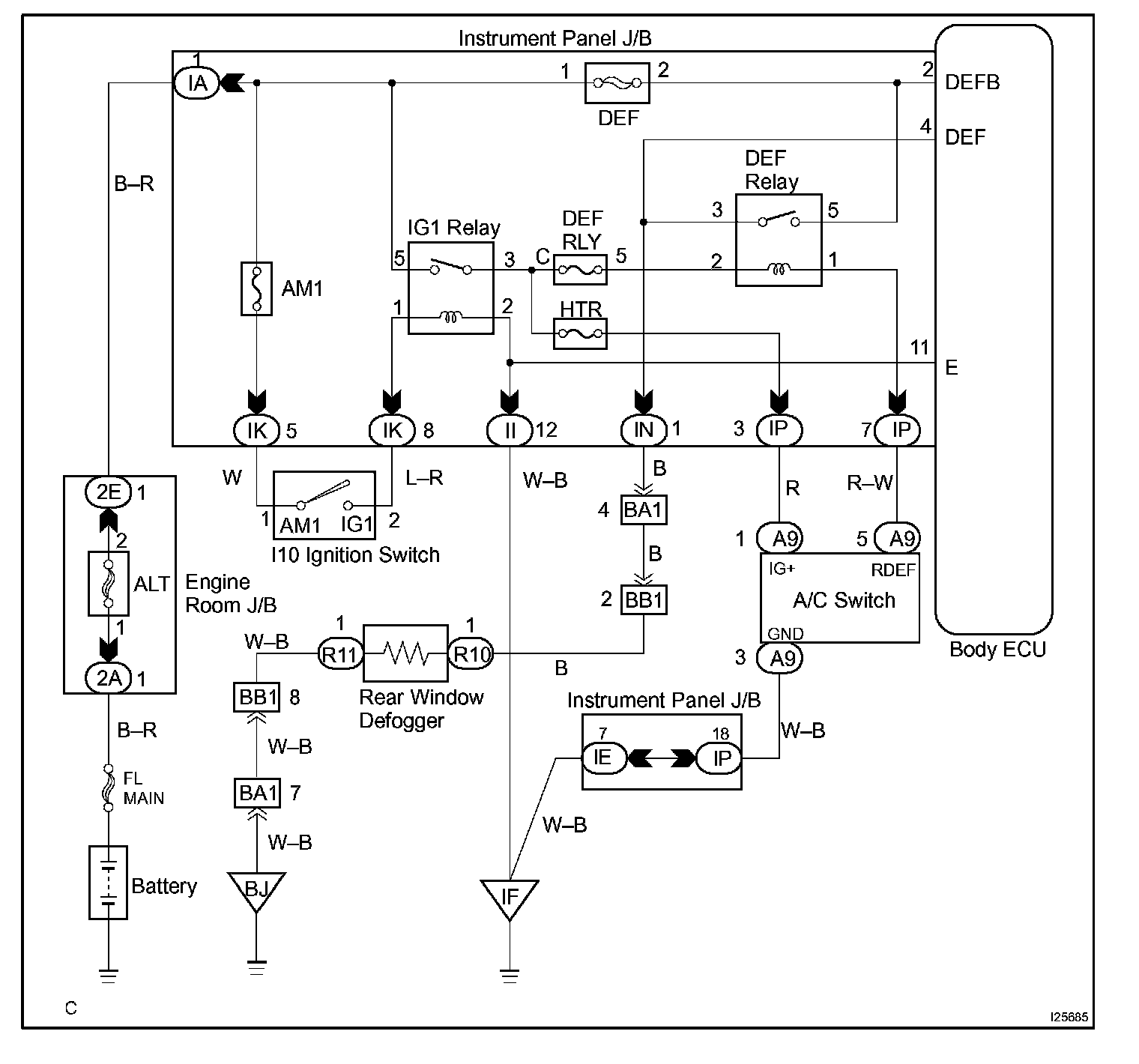

Wiring Diagram:

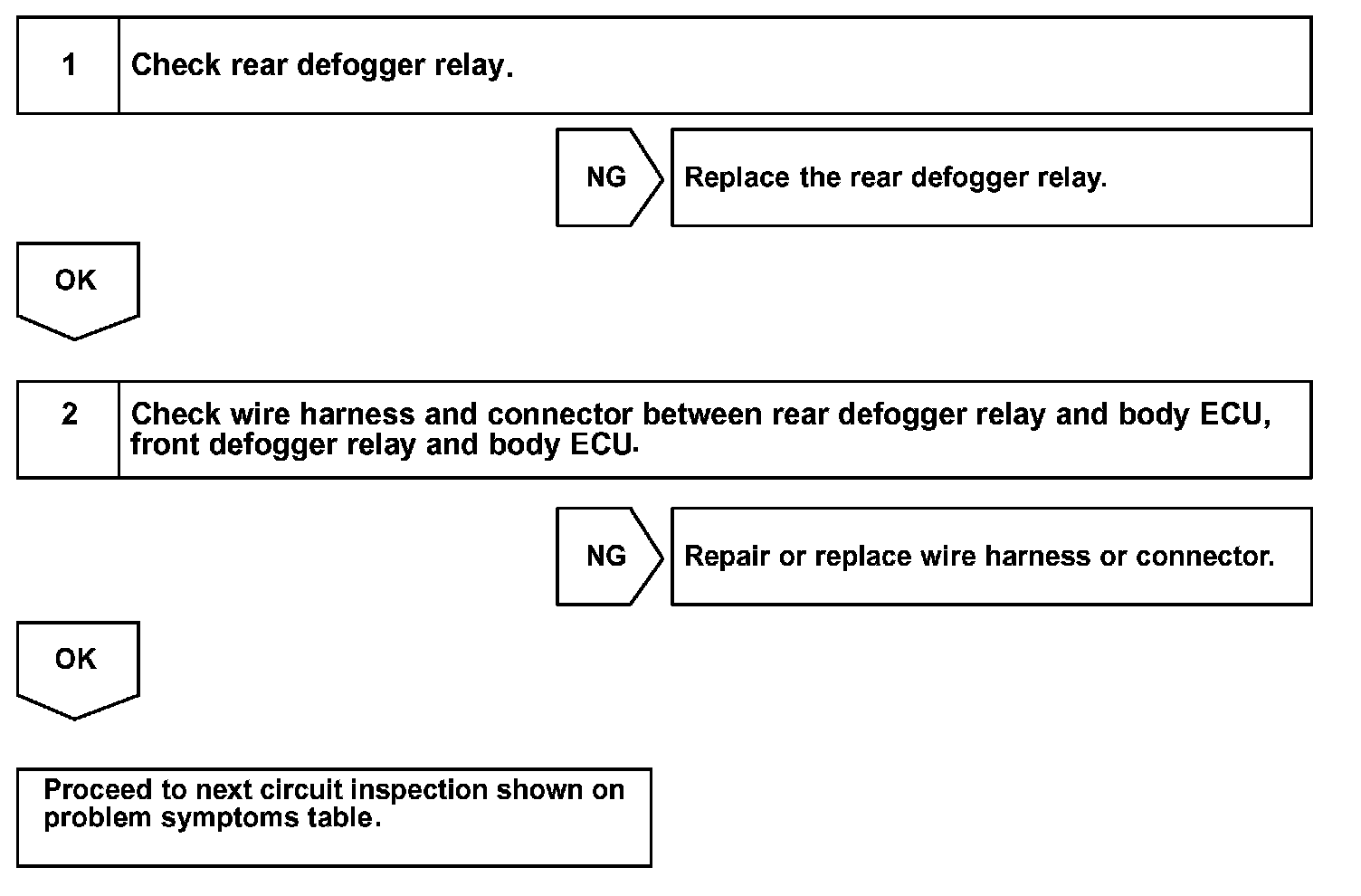

Step 1 - 2:
INSPECTION PROCEDURE
