Taillight Does Not Light Up

TAILLIGHT DOES NOT LIGHT UP

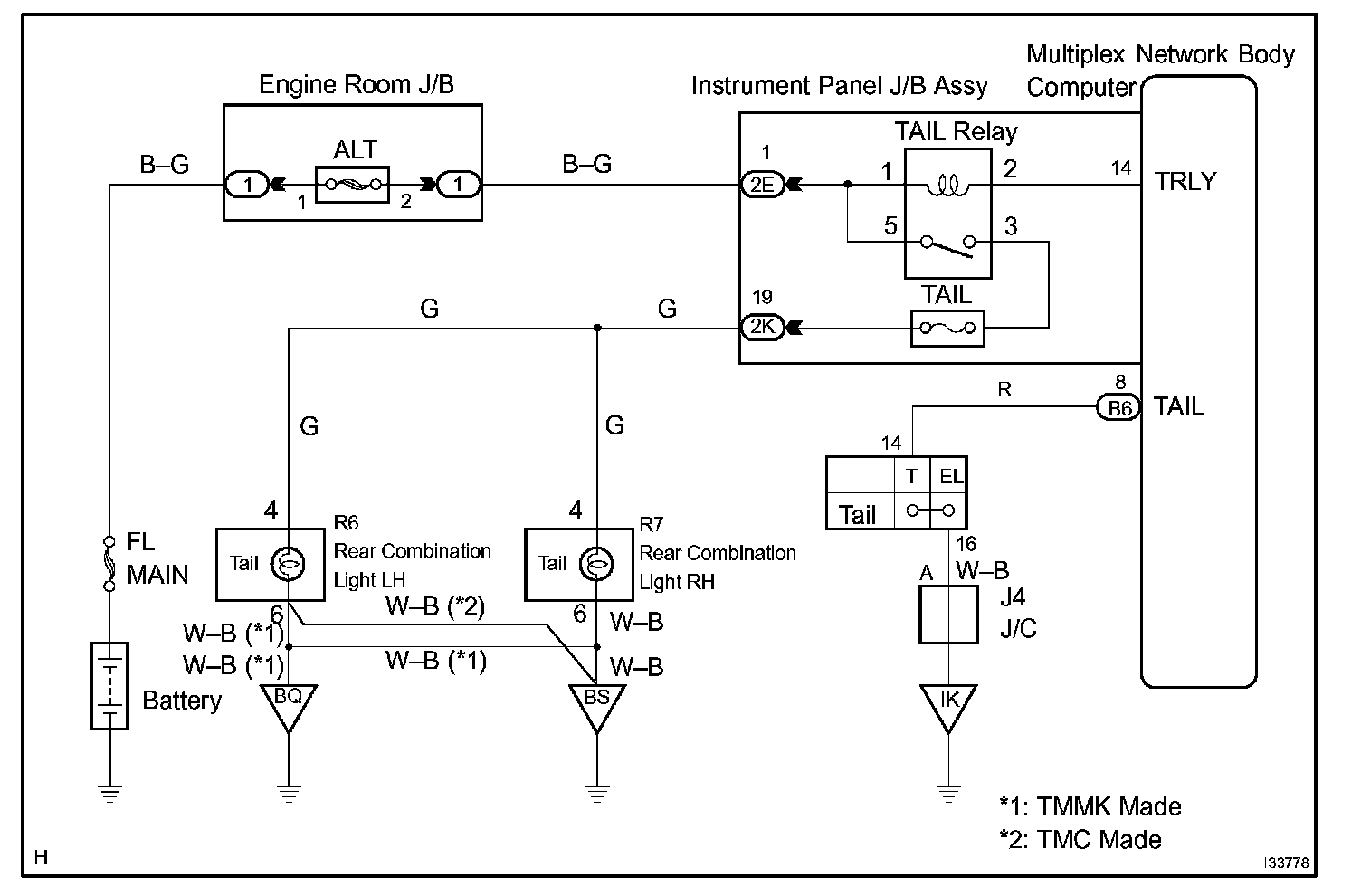

Wiring Diagram:

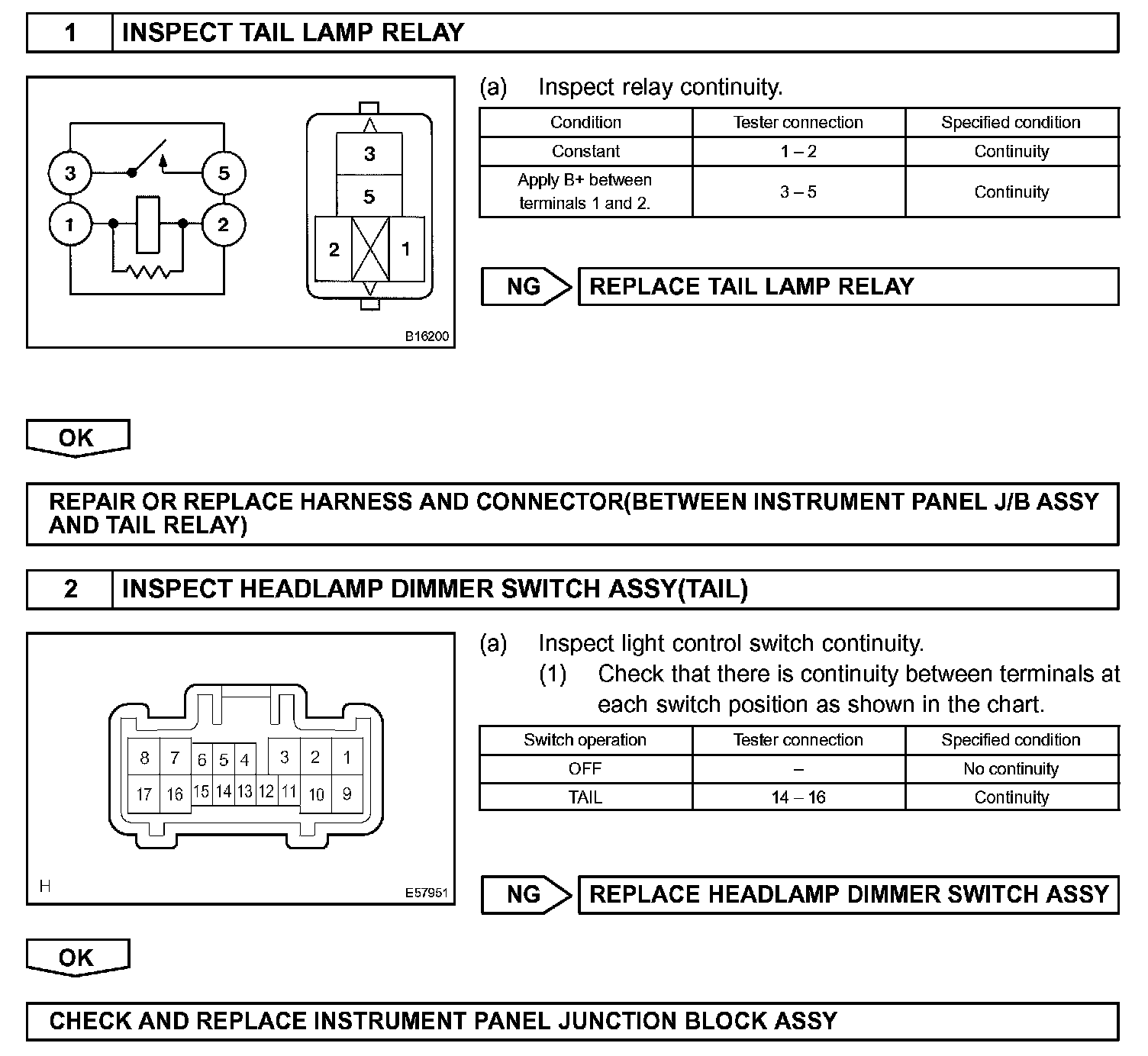

Step 1- 2:




INSPECTION PROCEDURE
