Malfunction In Clock Display
Malfunction In Clock Display
MALFUNCTION IN CLOCK DISPLAY

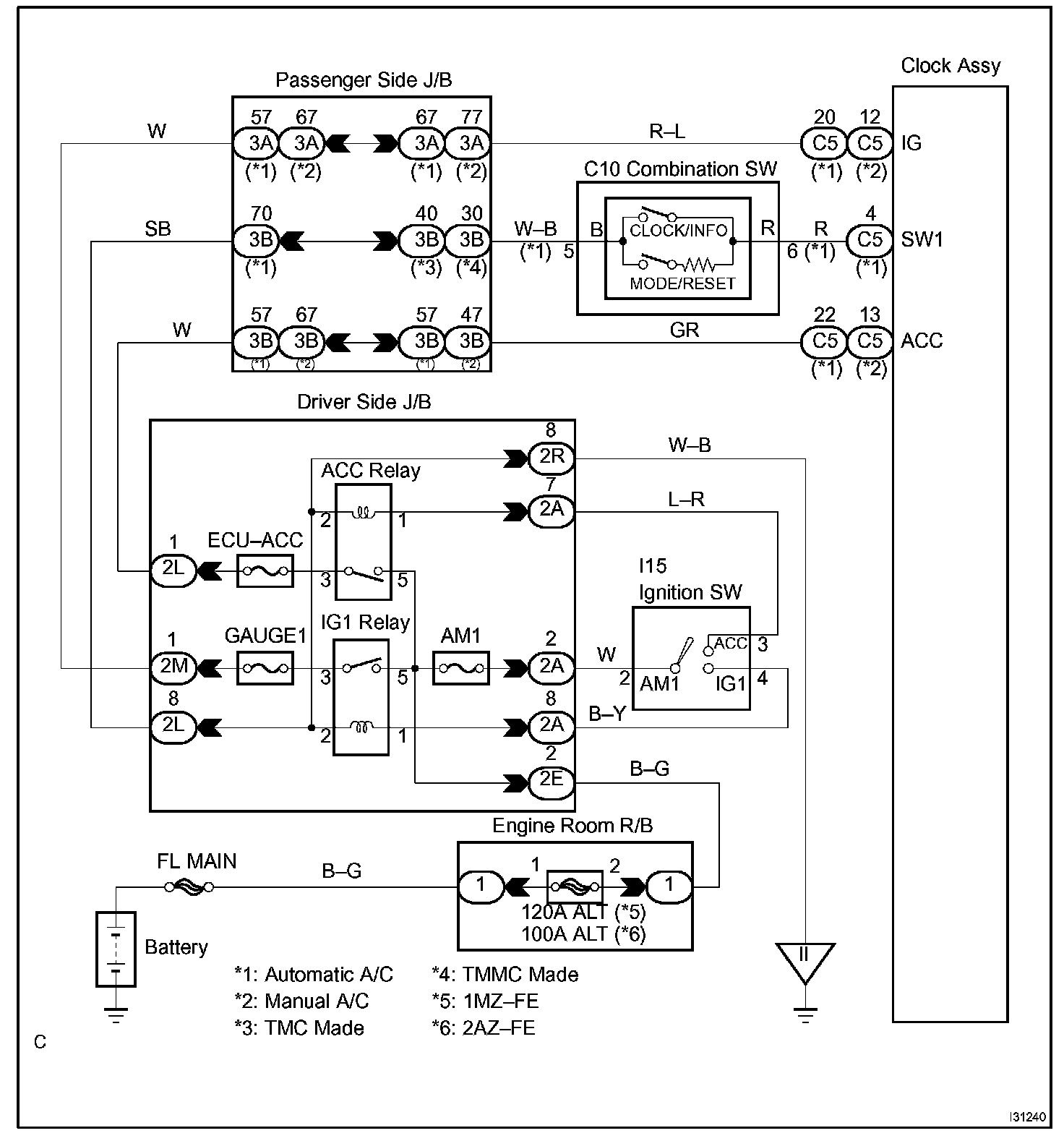

Wiring Diagram:

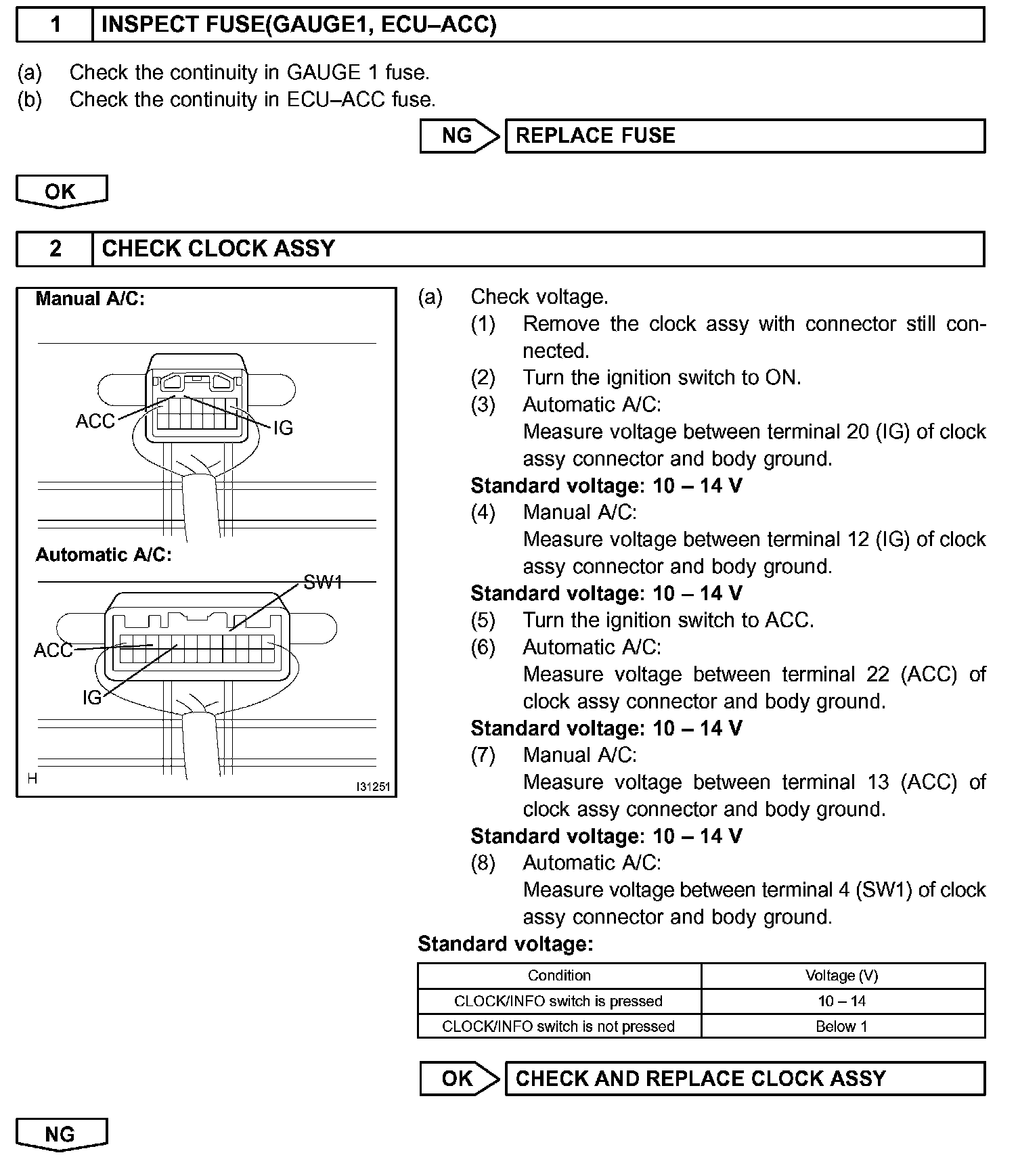

Step 1 - 2:

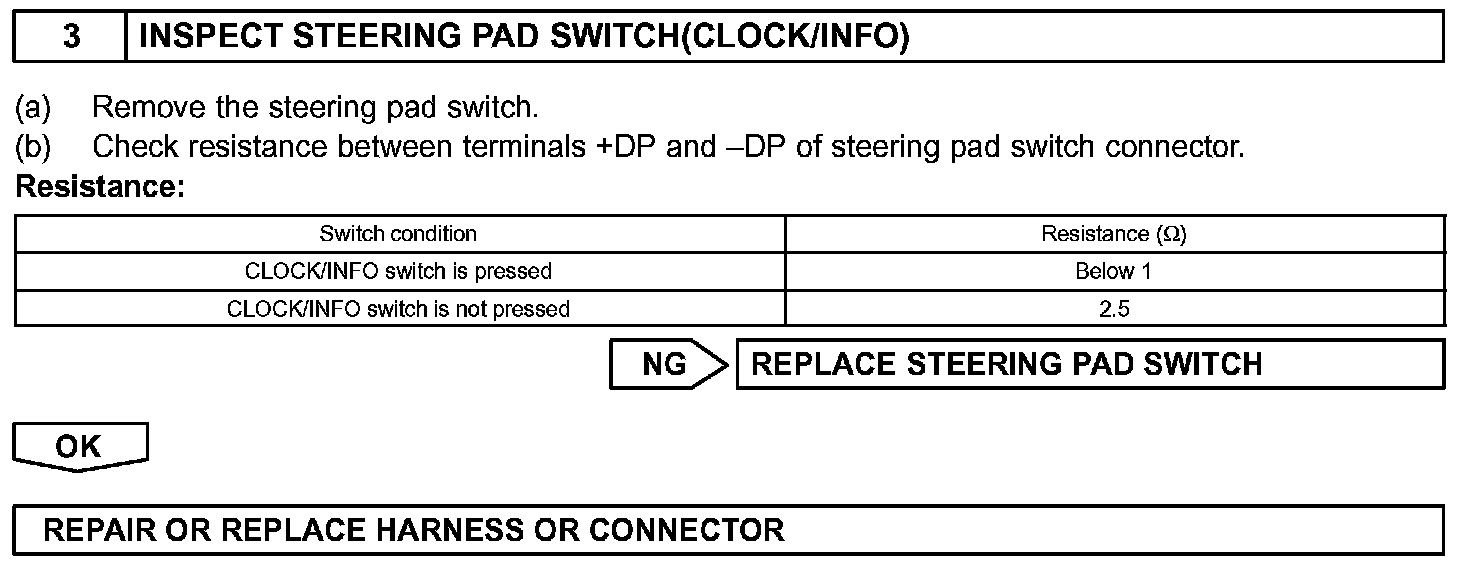

Step 3:
INSPECTION PROCEDURE
