Daytime Running Lamp Relay: Testing and Inspection

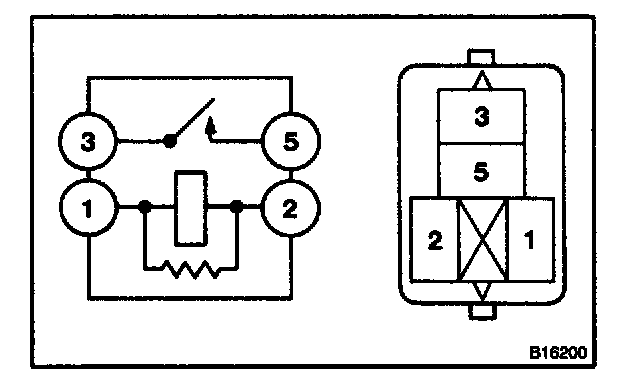

DAY TIME RUNNING LIGHT RELAY NO.2

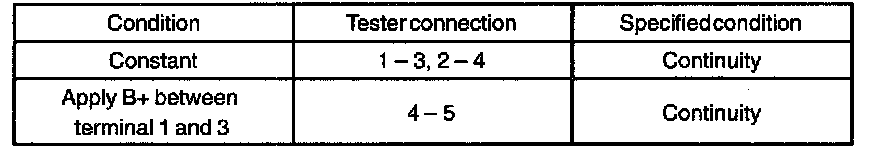

Inspect relay continuity.

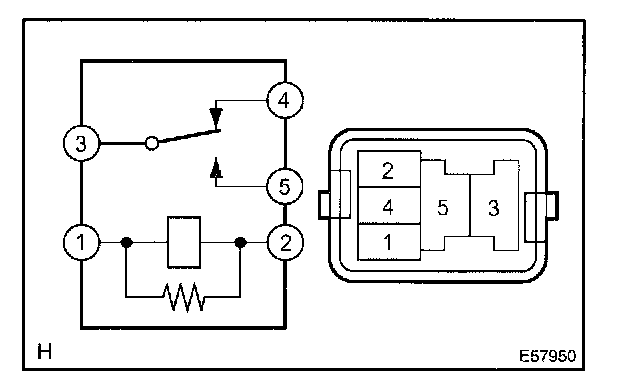

RUNNING LIGHT RELAY
Inspect relay continuity.
