Accelerator Pedal: Testing and Inspection

INSPECTION (From July 2003)

INSPECT ACCELERATOR PEDAL ASSY

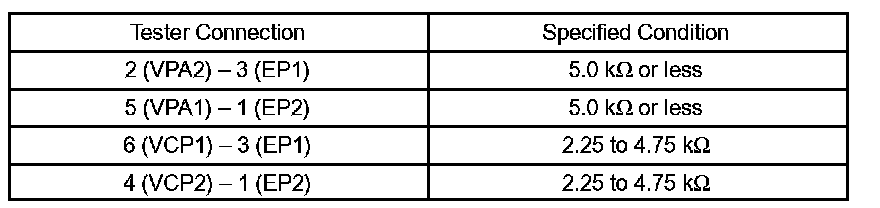

Standard:

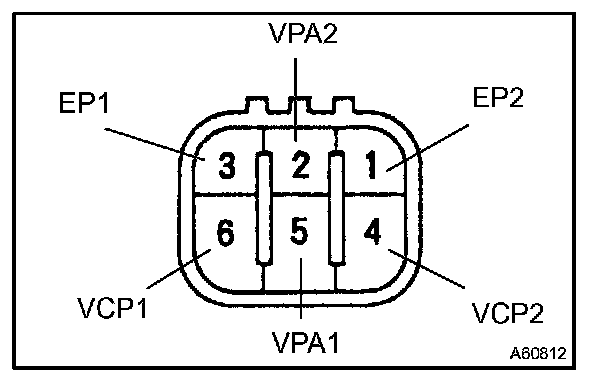

Measure the resistance between the terminals.

If the result is not as specified, replace the pedal assy.
