Home >> Toyota >> 2004 >> Camry L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Except PZEV Engine

Except PZEV Engine

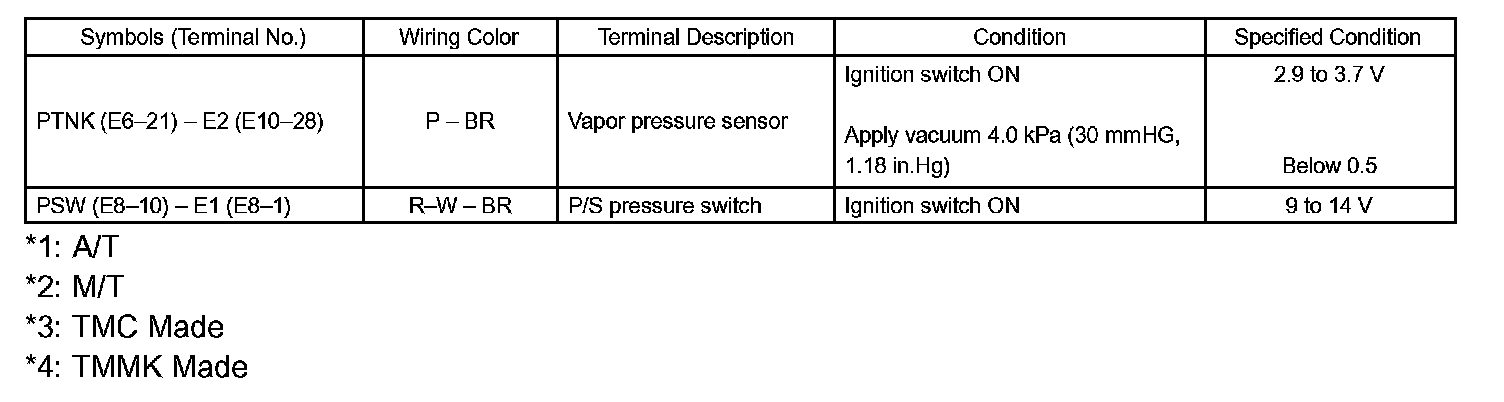

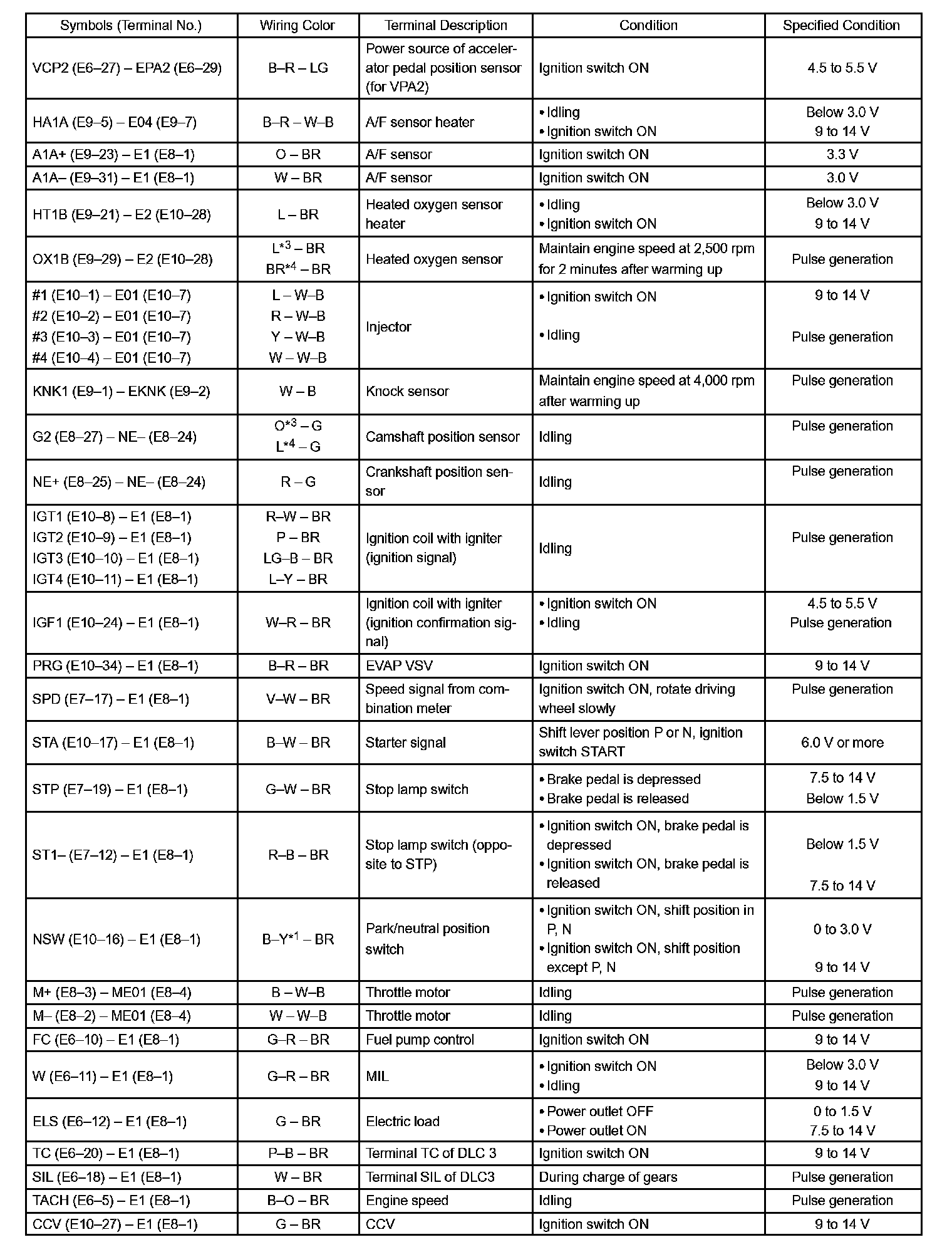

Terminals Of ECM/Pinouts Part 1:




Terminals Of ECM/Pinouts Part 2:




Terminals Of ECM/Pinouts Part 3:
