IG Power Source Circuit

IG POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION
This is the power source for the air conditioner amplifier (contains the ECU) and servomotor, etc.

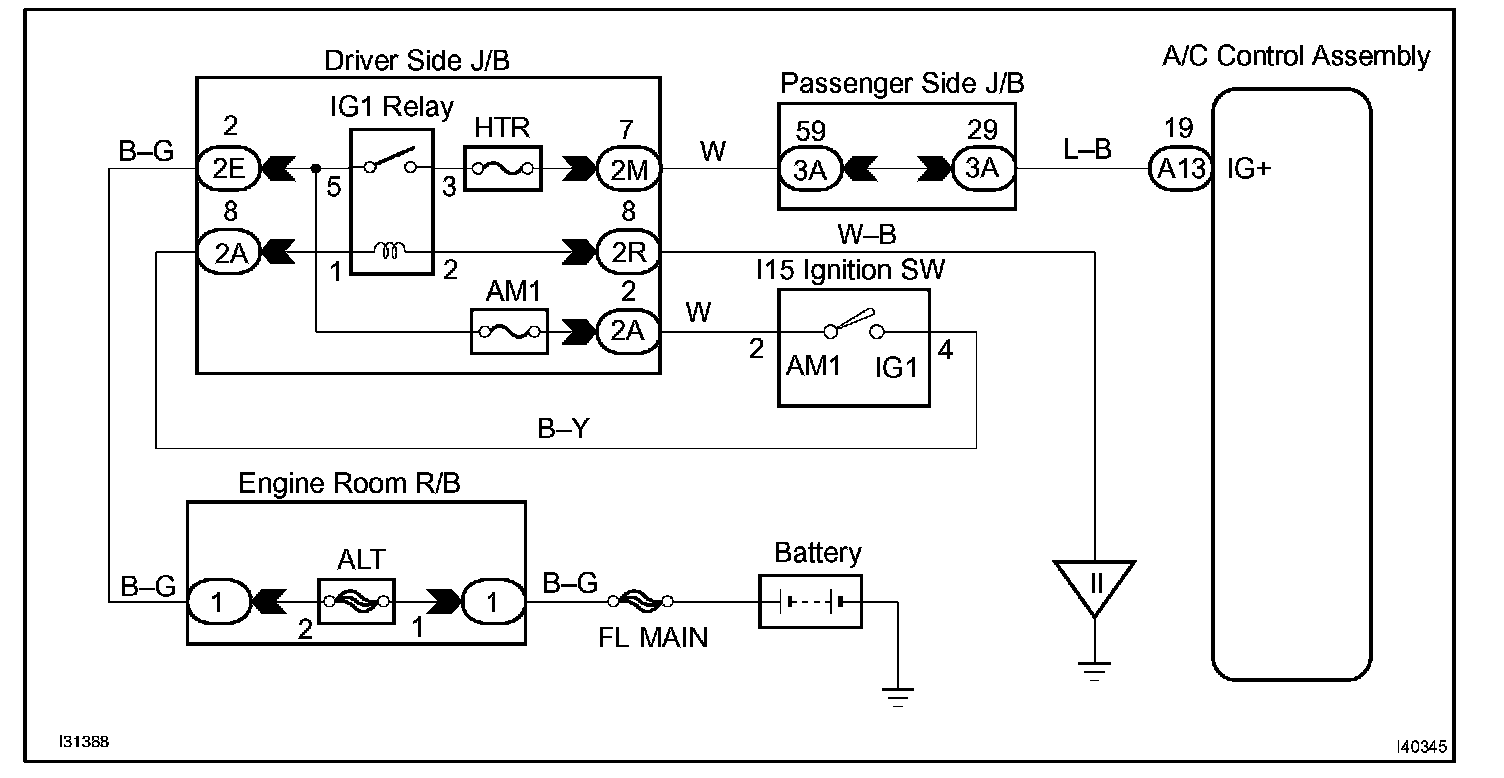

Wiring Diagram:

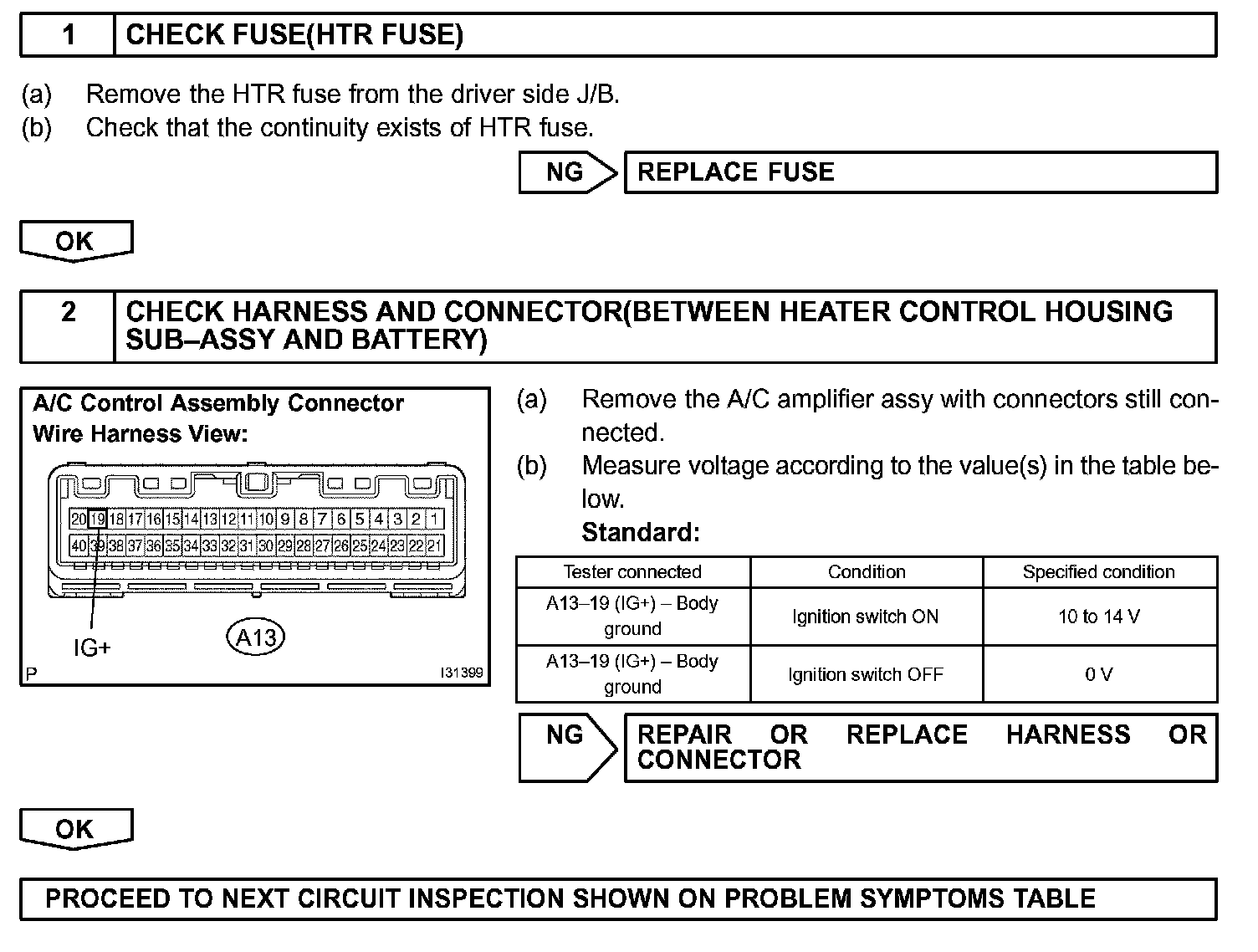

Step 1:




INSPECTION PROCEDURE
