Home
>>
Toyota
>>
2004
>>
Camry L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Parking Brake System
>>
System Diagram

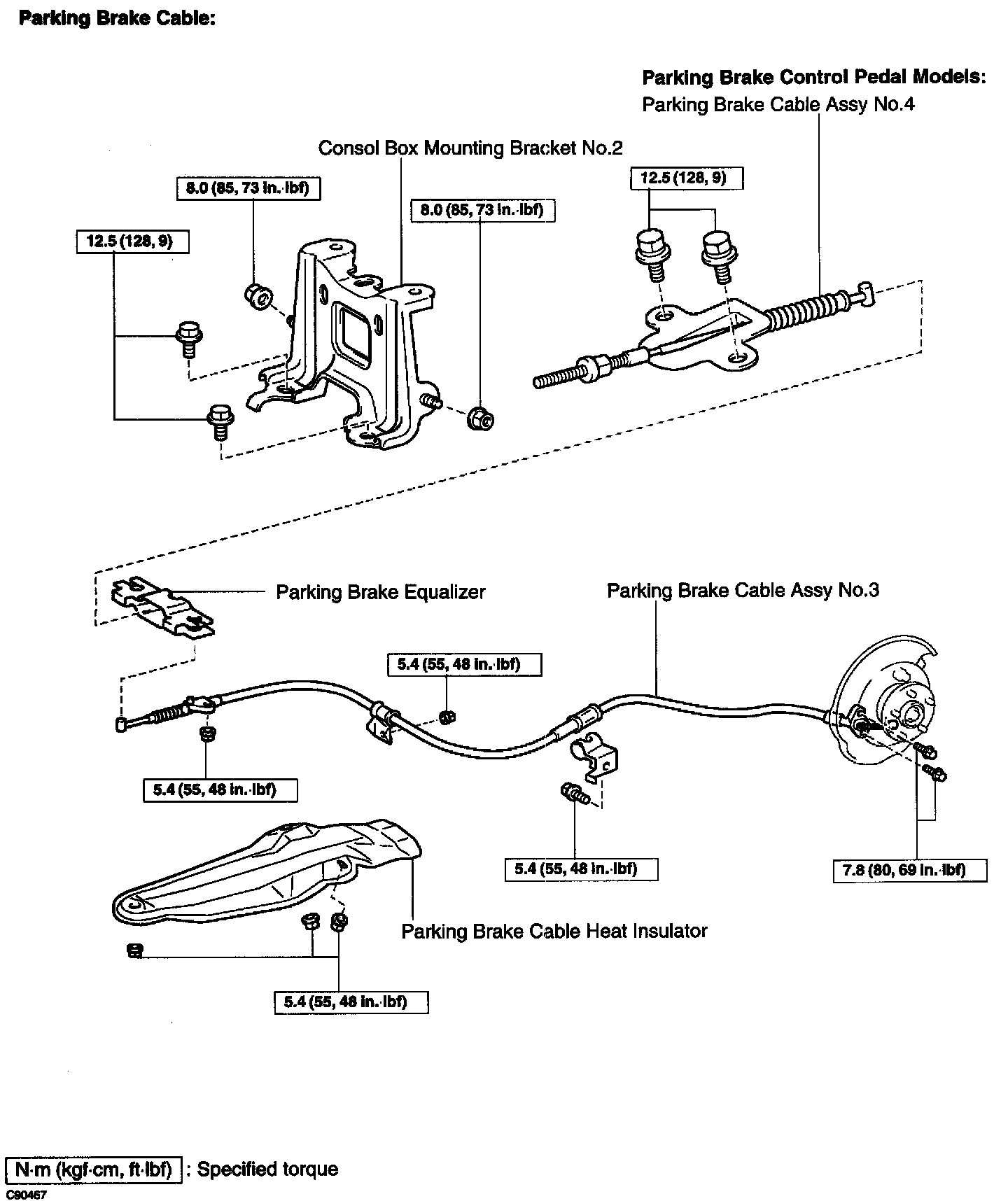

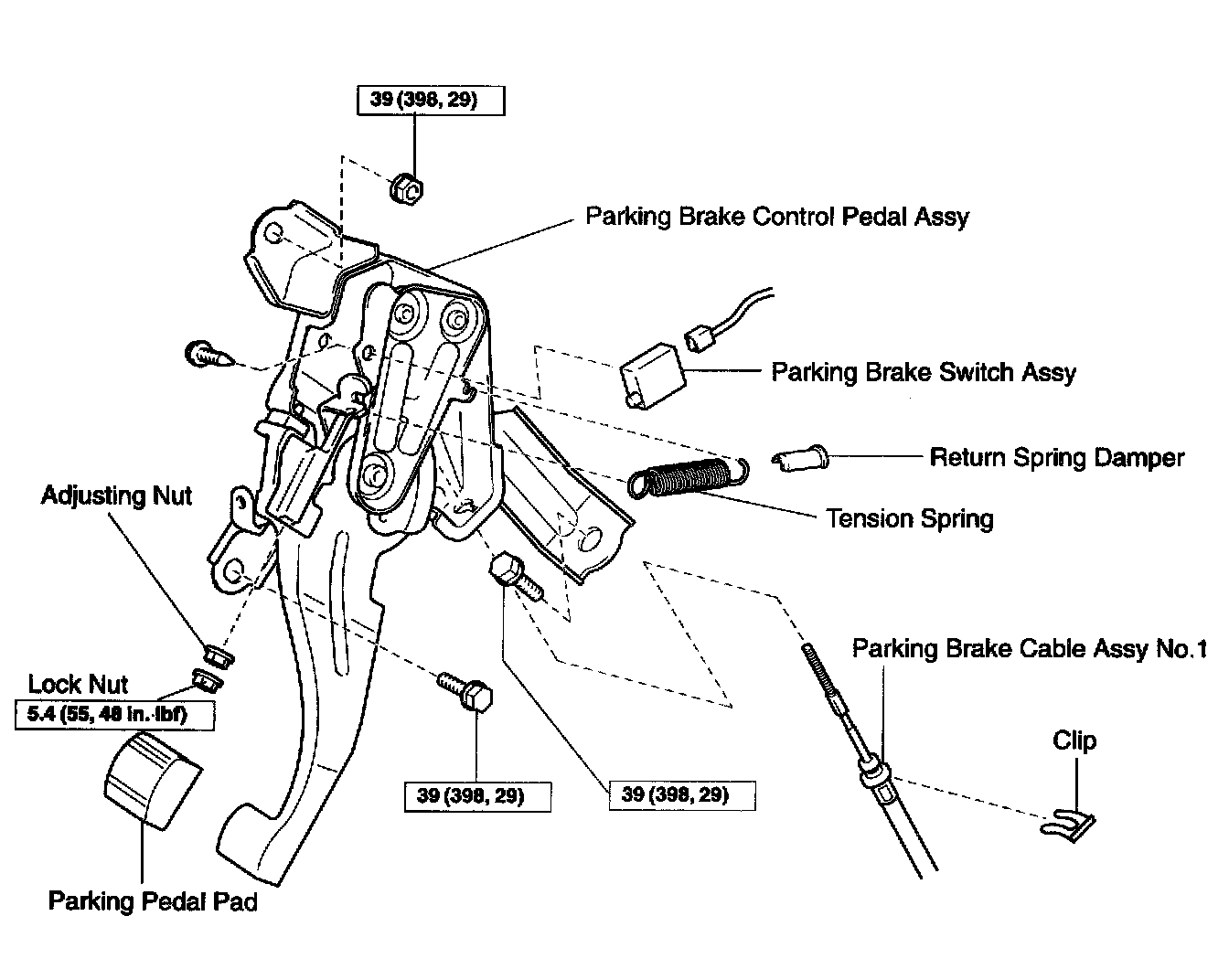

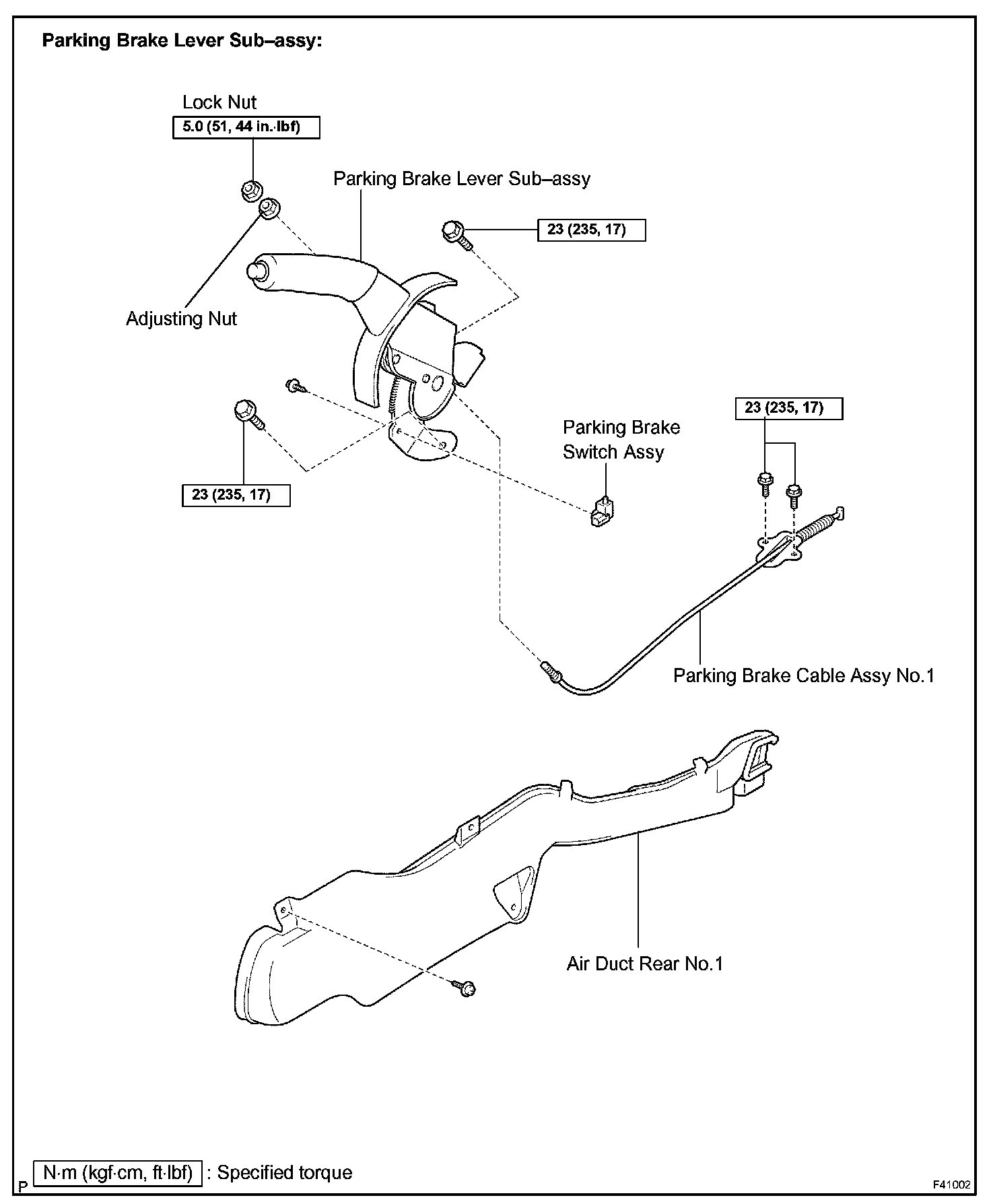

System Diagram

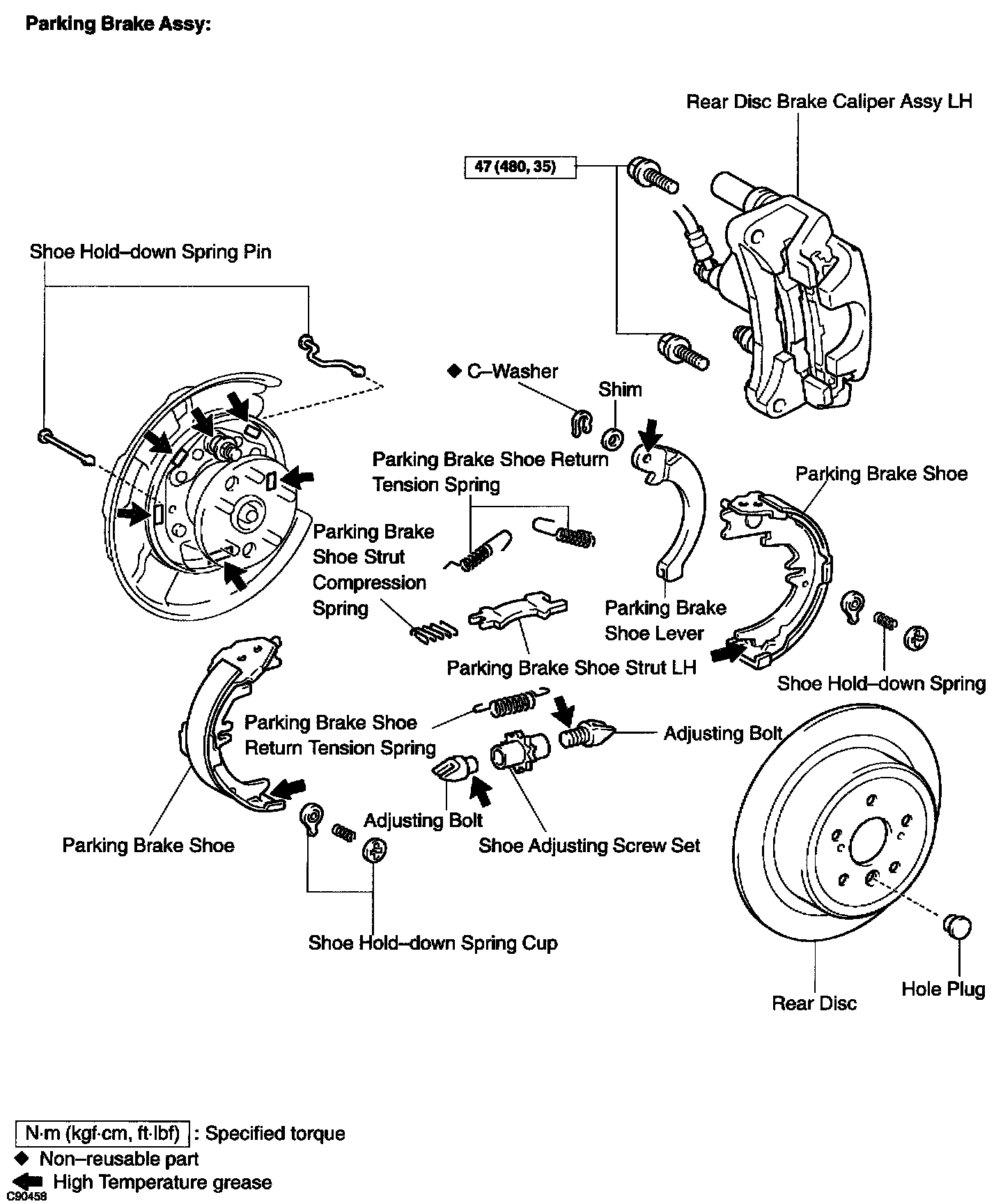

PARKING BRAKE ASSY OVERHAUL W/ RELATED COMPONENTS
