Toyota
>>
2004
>>
Camry L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Air Bag Systems
>>
Impact Sensor
>>
Air Bag Sensor Assy Center
Air Bag Sensor Assy Center

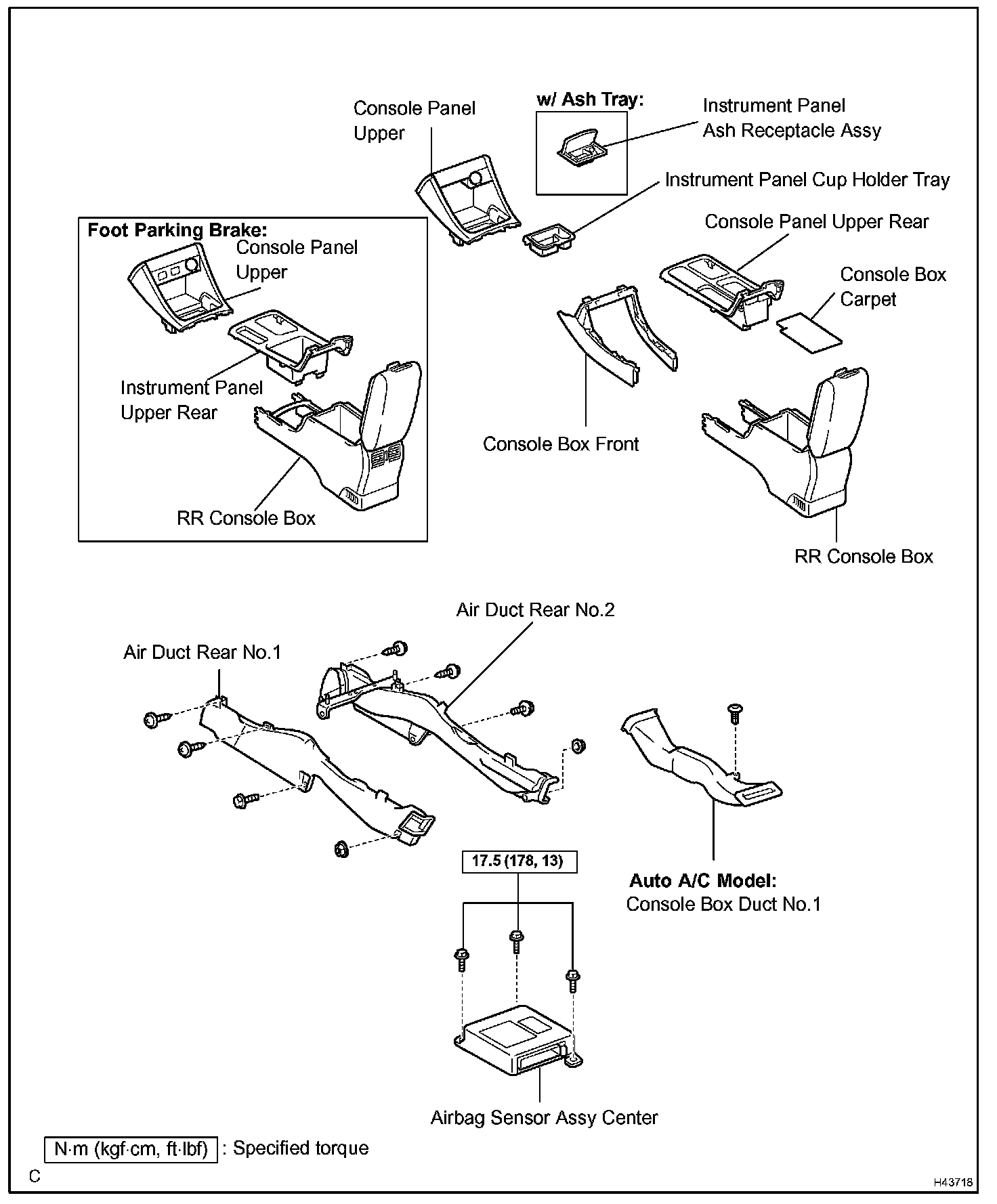

Air Bag Sensor Assy Center:
