Wiper Motor: Testing and Inspection

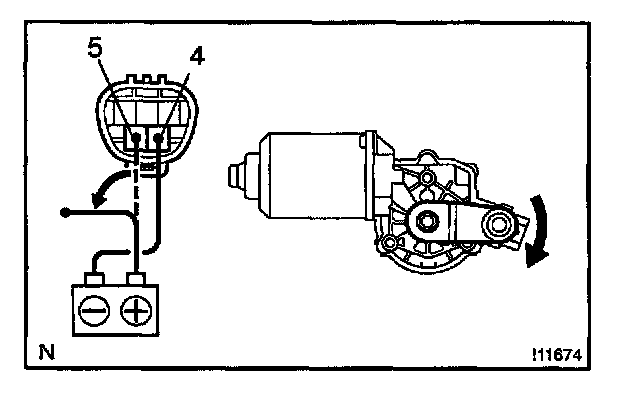

1. Low Speed:
INSPECT FRONT WIPER MOTOR OPERATION
Connect the positive (+) lead from the battery to terminal 5 and the negative (-) lead to terminal 4, check that the motor operates at low speed.
If operation is not as specified, replace the motor.

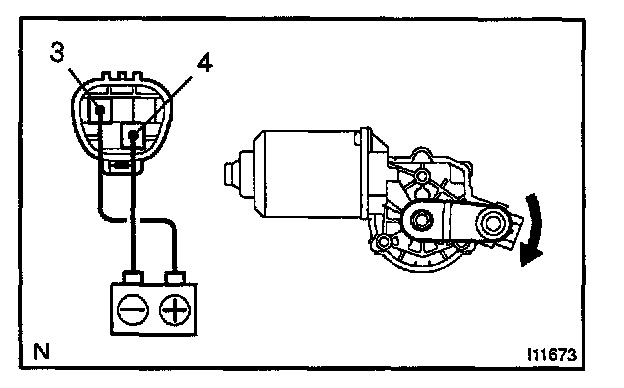

2. High Speed:
INSPECT FRONT WIPER MOTOR OPERATION
Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 4, check that the motor operates at high speed.
If operation is not as specified, replace the motor.

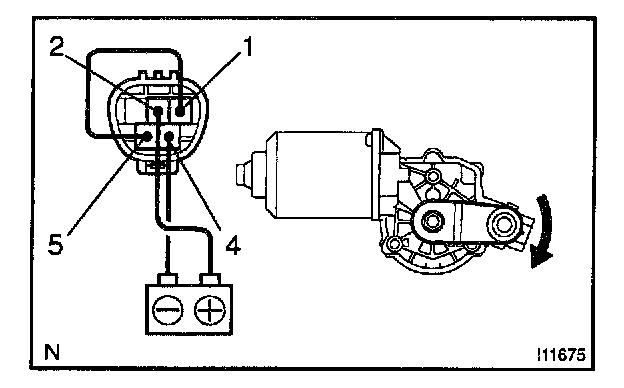

3. Stopping at Stop Position:
INSPECT FRONT WIPER MOTOR OPERATION




a. Operate the motor at low speed and stop the motor operation anywhere except at the stop position by disconnecting positive (+) lead from terminal 5.




b. Connect terminals 1 and 5.
c. Connect the positive (+) lead from the battery to terminal 2 and negative (-) lead to terminal 4, check that the motor stops running at the stop position after the motor operates again.
If operation is not as specified, replace the motor.
