Counter Drive Gear

DISASSEMBLY

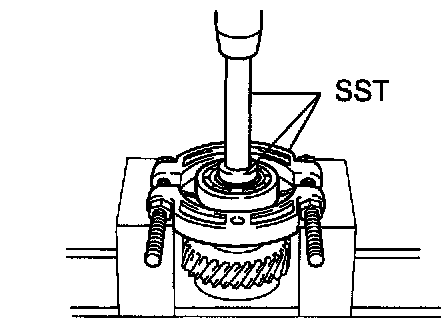

1. REMOVE BALL BEARING LH (MG2 side)
Using SST and a press, drive out the ball bearing.
SST 09950-00020, 09950-60010 (09951-00330), 09950-70010 (09951-07100)

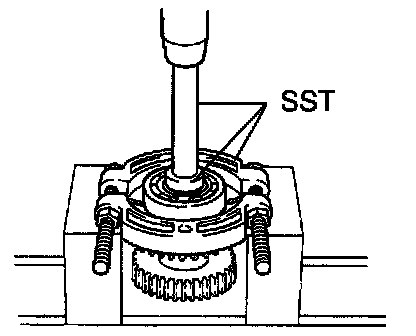

2. REMOVE BALL BEARING RH (MG2 side)
Using SST and a press, drive out the ball bearing.
SST 09950-00020, 09950-60010 (09951-00330), 09950-70010 (09951-07100)

INSPECTION
CHECK 2 BALL BEARINGS





Check that burnt spots, deformation or play due to the wear is not identified.
If they are identified, replace the ball bearing.

REASSEMBLY

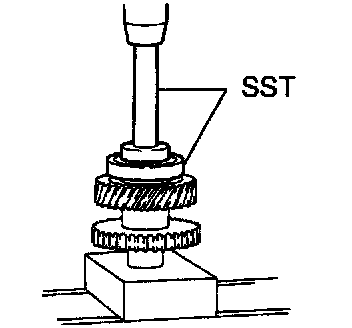

1. INSTALL BALL BEARING RH (MG1 side)
Using SST and a press, press in the ball bearing.
SST 09950-60010 (09951-00460), 09950-70010 (09951-07100)

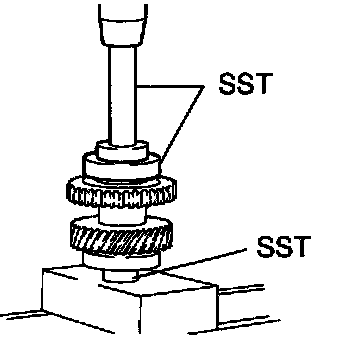

2. INSTALL BALL BEARING LH (MG2 side)
Using SST and a press, press in the ball bearing.
SST 09950-60010 (09951-00330, 09951-00460), 09950-70010 (09951-07100)
