Fluid Pump: Service and Repair

ON-VEHICLE REPAIR
1. REMOVE ENGINE UNDER COVER LH
2. REMOVE OIL PUMP

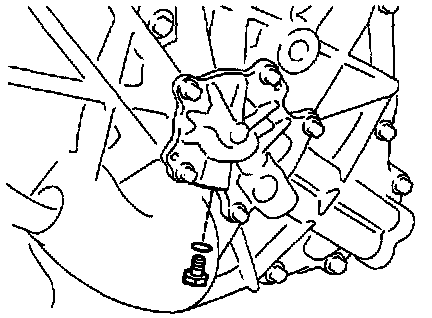

a. Remove the plug.
b. Remove the O-ring from the plug.





c. Remove the 5 bolts and oil pump cover.

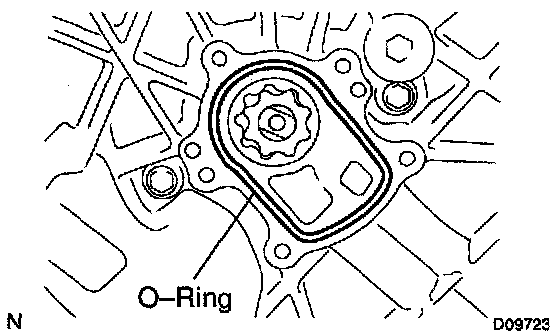

d. Remove the O-ring.

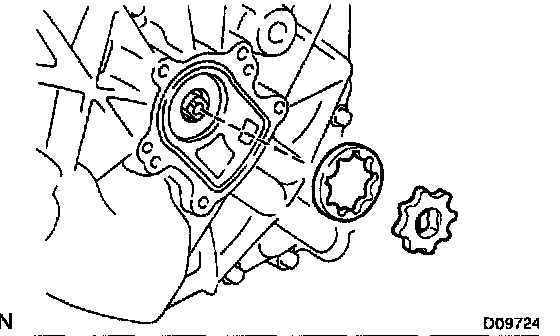

e. Remove the oil pump driven rotor and drive rotor.

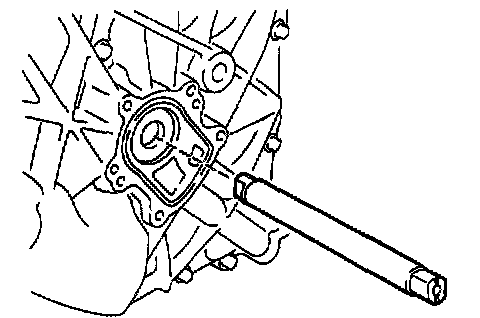

f. Remove the oil pump drive shaft.
3. INSTALL OIL PUMP
a. Apply ATF to each sliding part.





b. Install the oil pump drive shaft.

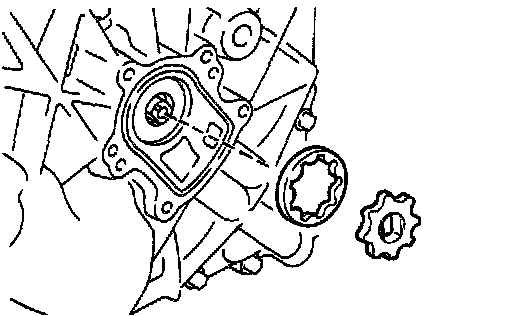

c. Install the oil pump driven rotor and drive rotor.

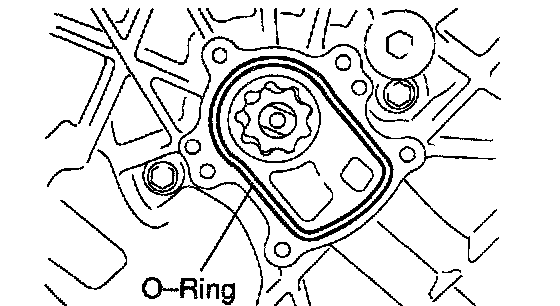

d. Install a new O-ring.
e. Apply liquid sealer to 2 or 3 threads of the bolt end.
Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent

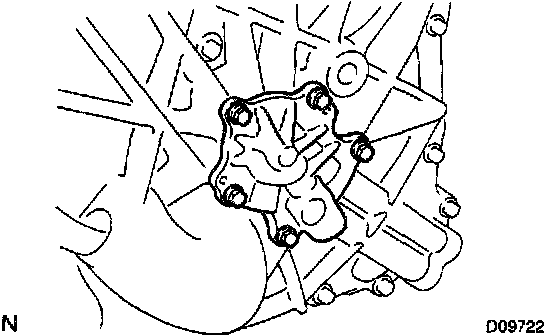

f. Install the oil pump cover with the 5 bolts.
Torque: 5.5 Nm (56 kgf-cm, 49 inch lbs.)

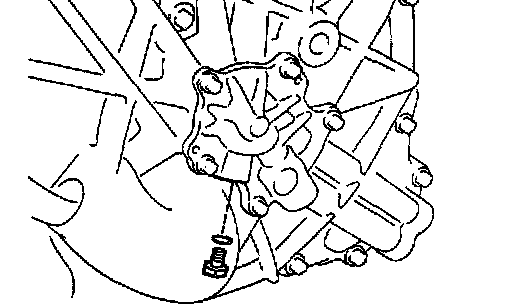

g. Install a new O-ring and the plug.
Torque: 7.35 Nm (75 kgf-cm, 65 inch lbs.)
4. INSTALL ENGINE UNDER COVER LH
