Fluid - CVT: Testing and Inspection

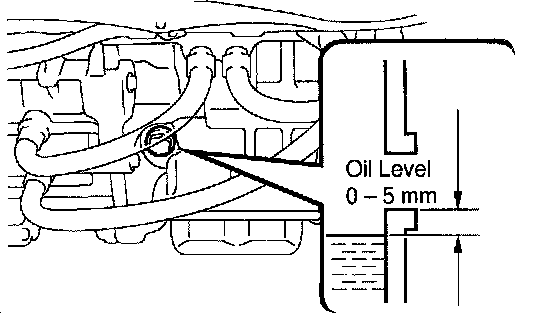

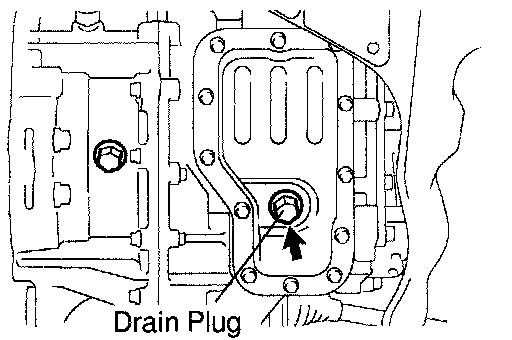

HYBRID TRANSAXLE UNIT ON-VEHICLE INSPECTION
Fluid type: ATF Type T-IV
Capacity: 4.6 liters (4.9 US qts, 4.0 Imp. qts)
Torque: 49 N.m (498 kgf.cm, 36 ft.lbf)
HYBRID TRANSAXLE UNIT ON-VEHICLE INSPECTION
Fluid type: ATF Type T-IV
Capacity: 4.6 liters (4.9 US qts, 4.0 Imp. qts)
Torque: 49 N.m (498 kgf.cm, 36 ft.lbf)
