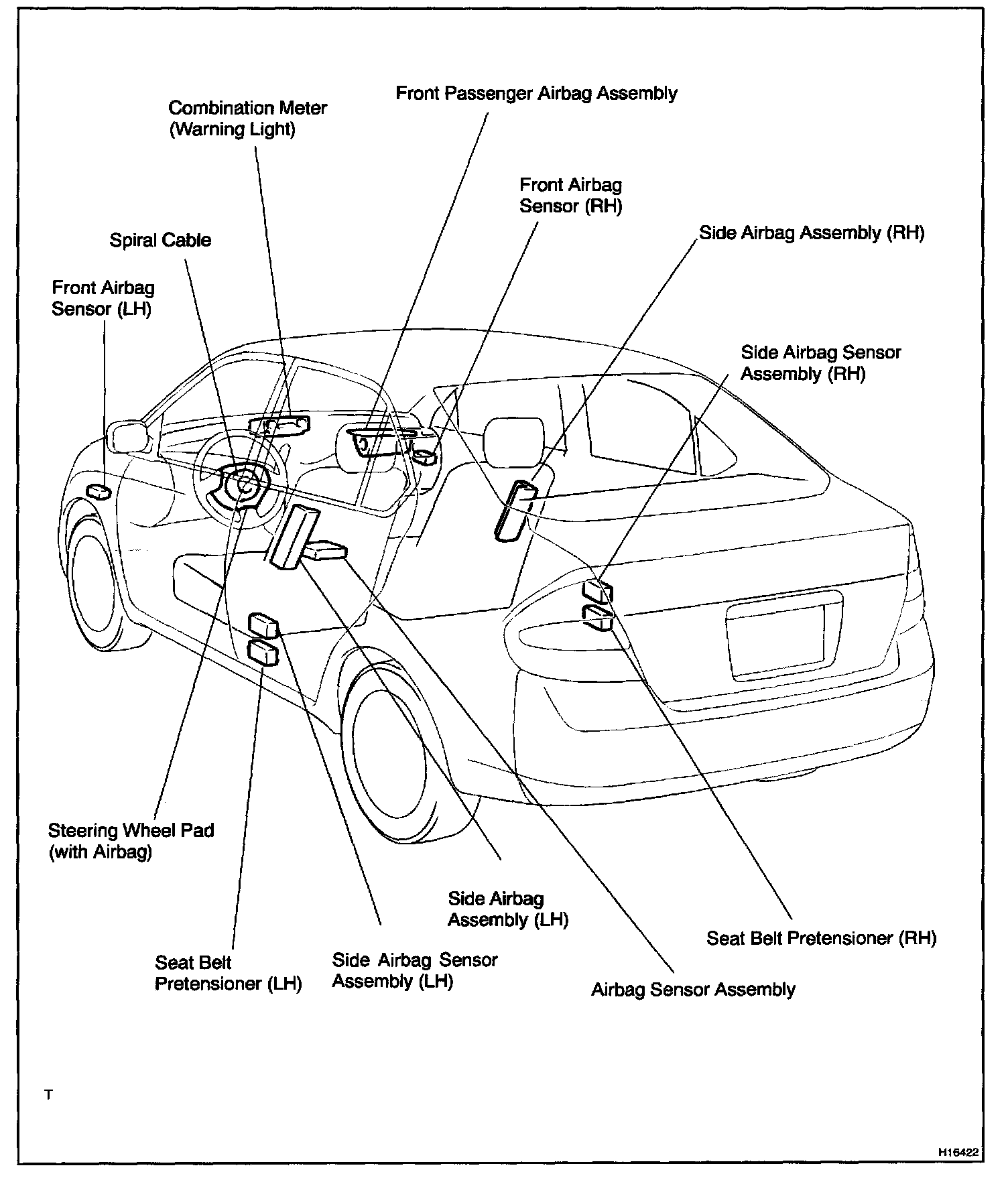

Impact Sensor: Locations

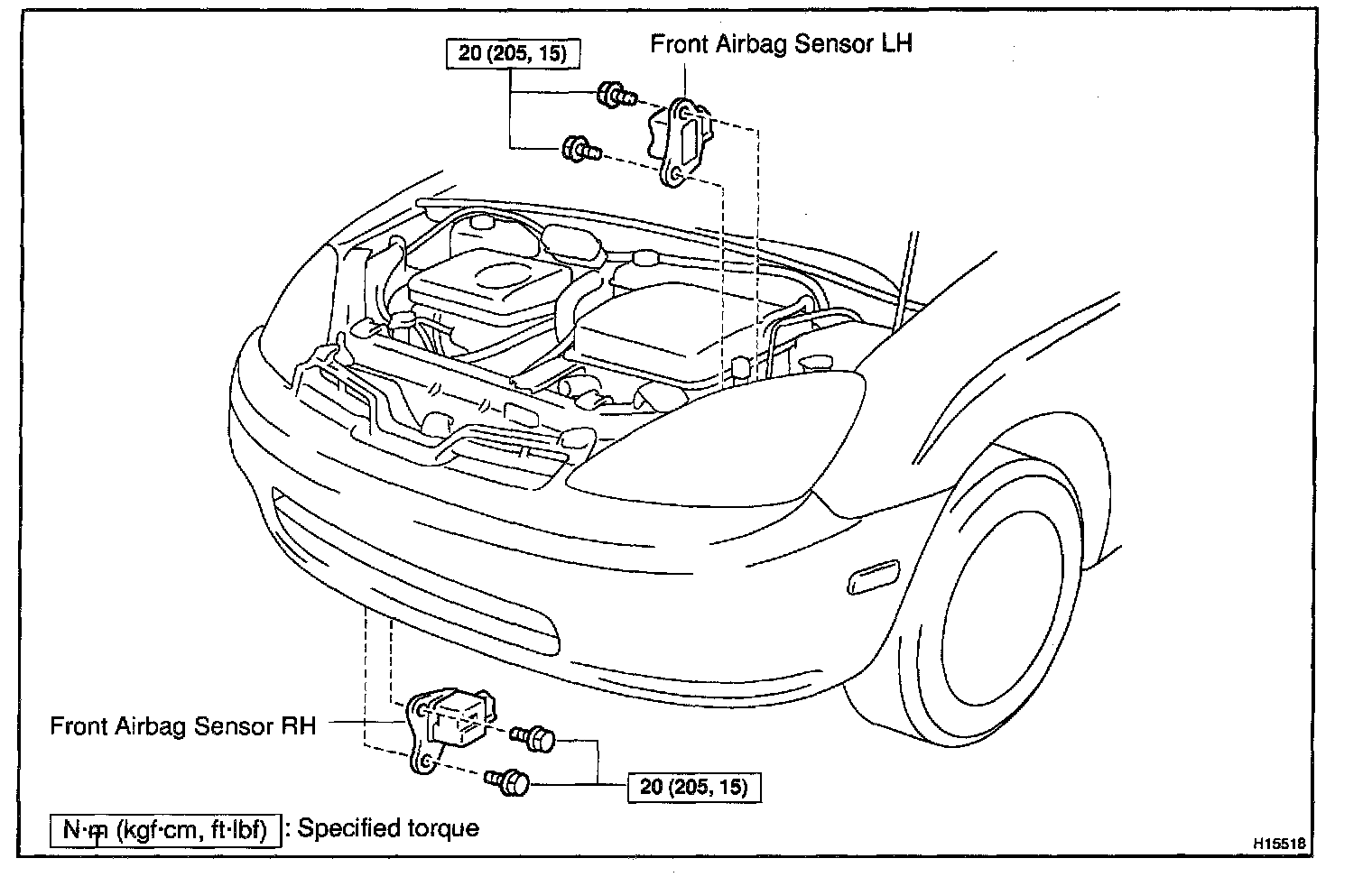

Front Airbag Sensor:



A/C - Hy:



Na - VS:



Hybrid Vehicle Control System:



Supplemental Restraint System:
