Ignition Coil: Service and Repair

Ignition Coil:

REMOVAL




1. REMOVE AIR CLEANER ASSEMBLY




2. DISCONNECT 4 IGNITION COIL CONNECTORS
3. REMOVE IGNITION COILS (WITH IGNITER) FROM SPARK PLUGS

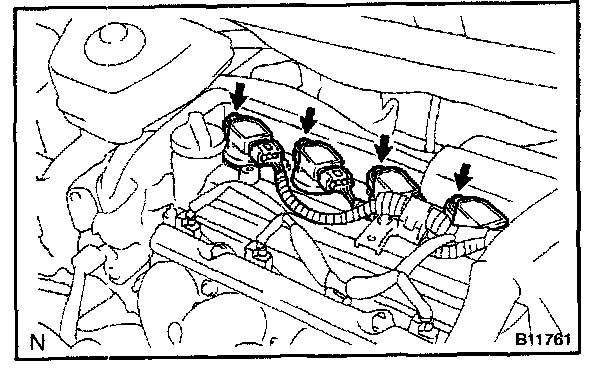

Remove the 4 bolts and pull out the 4 ignition coils (with igniter).

Torque: 9.0 N.m (92 kgf.cm, 80 in.lbf)

INSTALLATION
Installation is in the reverse order of removal.
