Hybrid Vehicle Control System

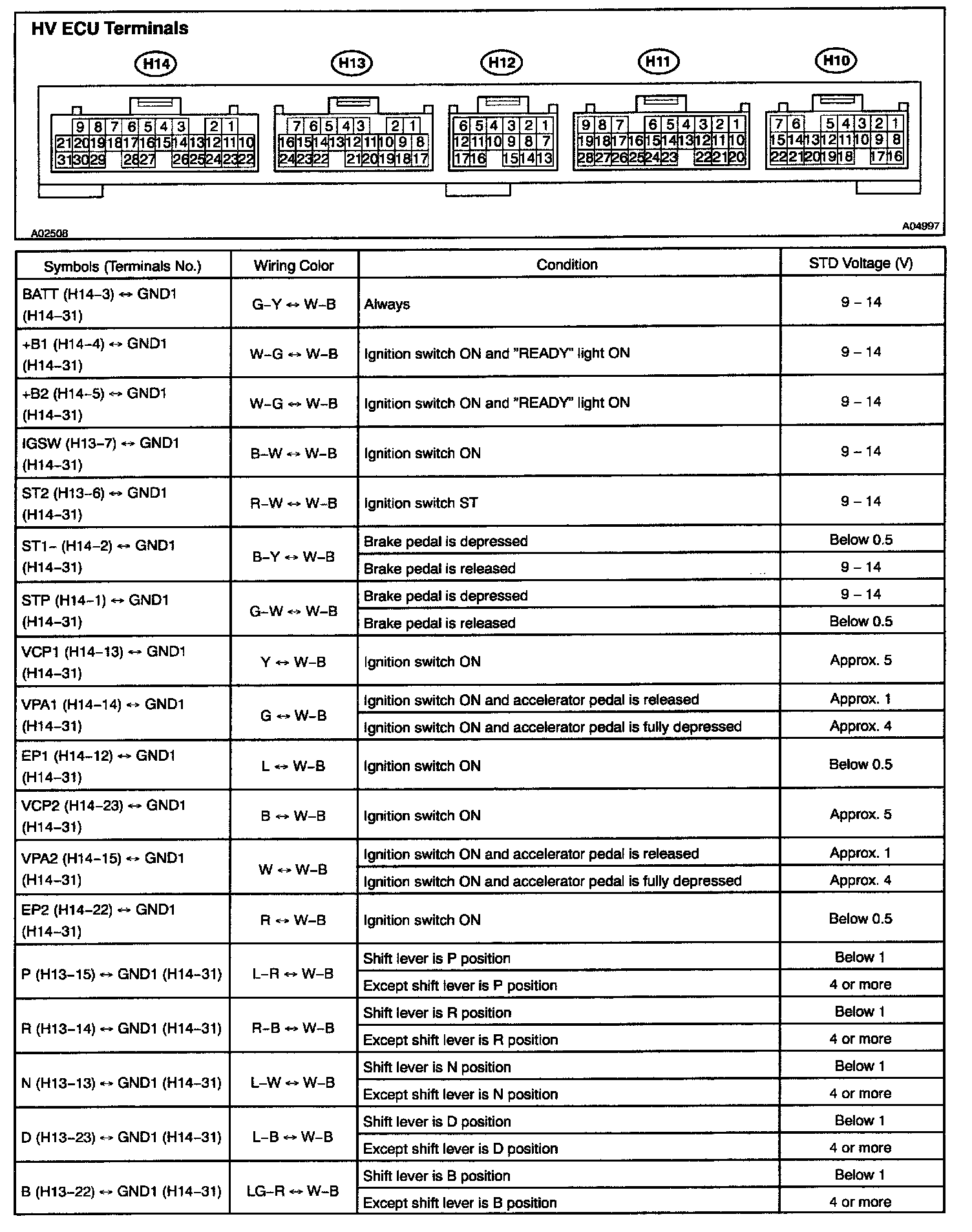

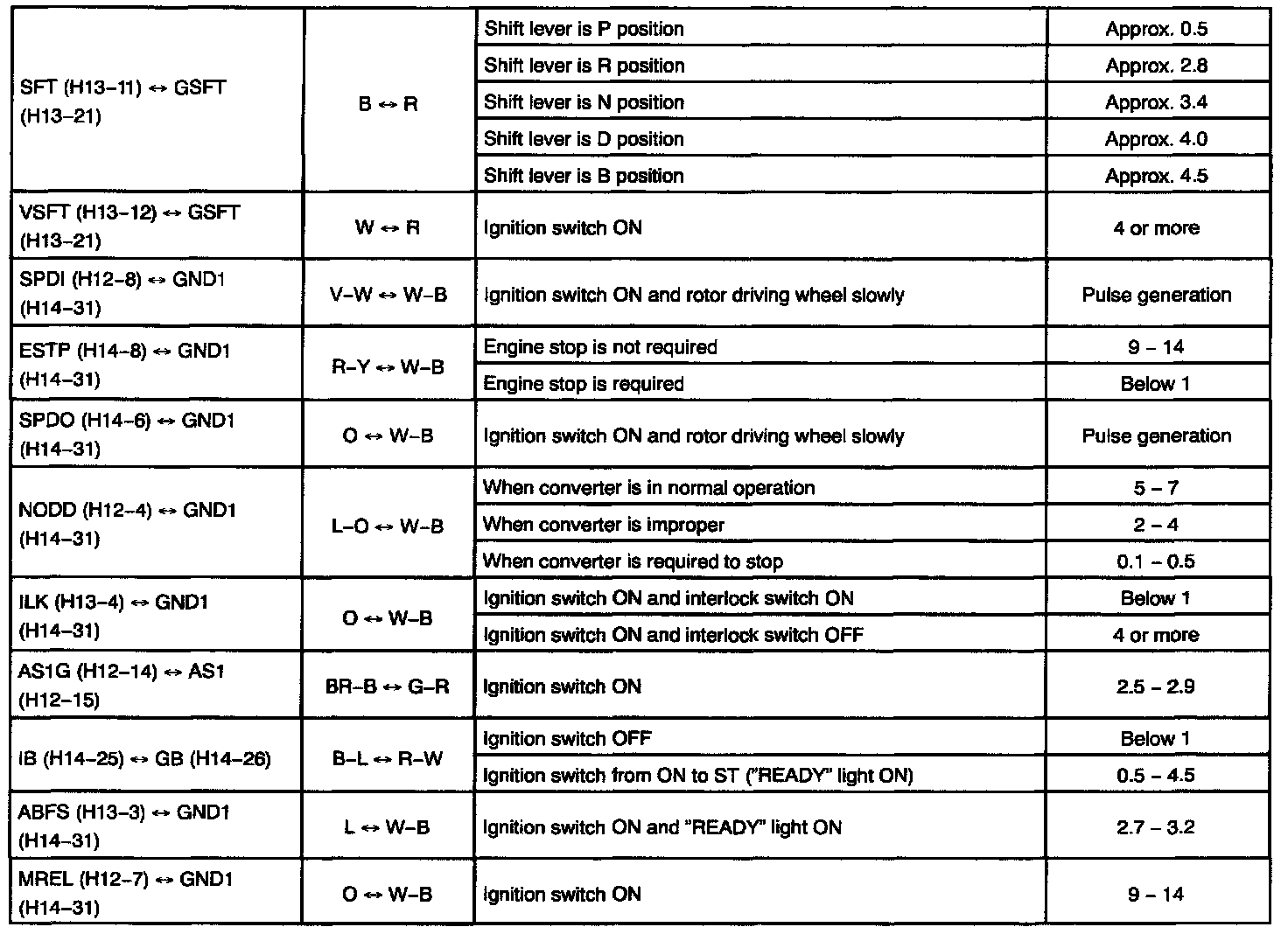

Terminals Of ECU/Pinouts Part 1:

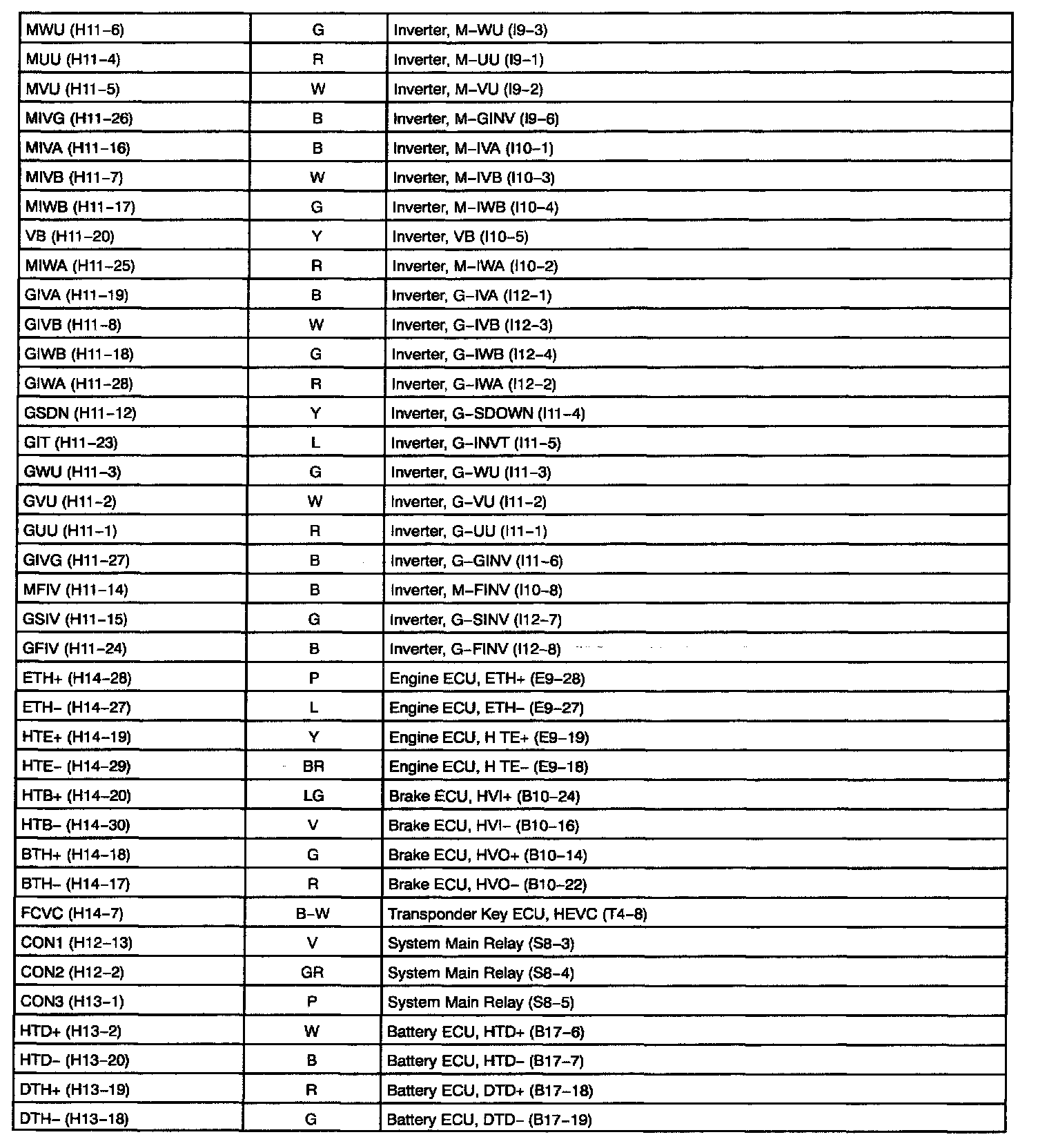

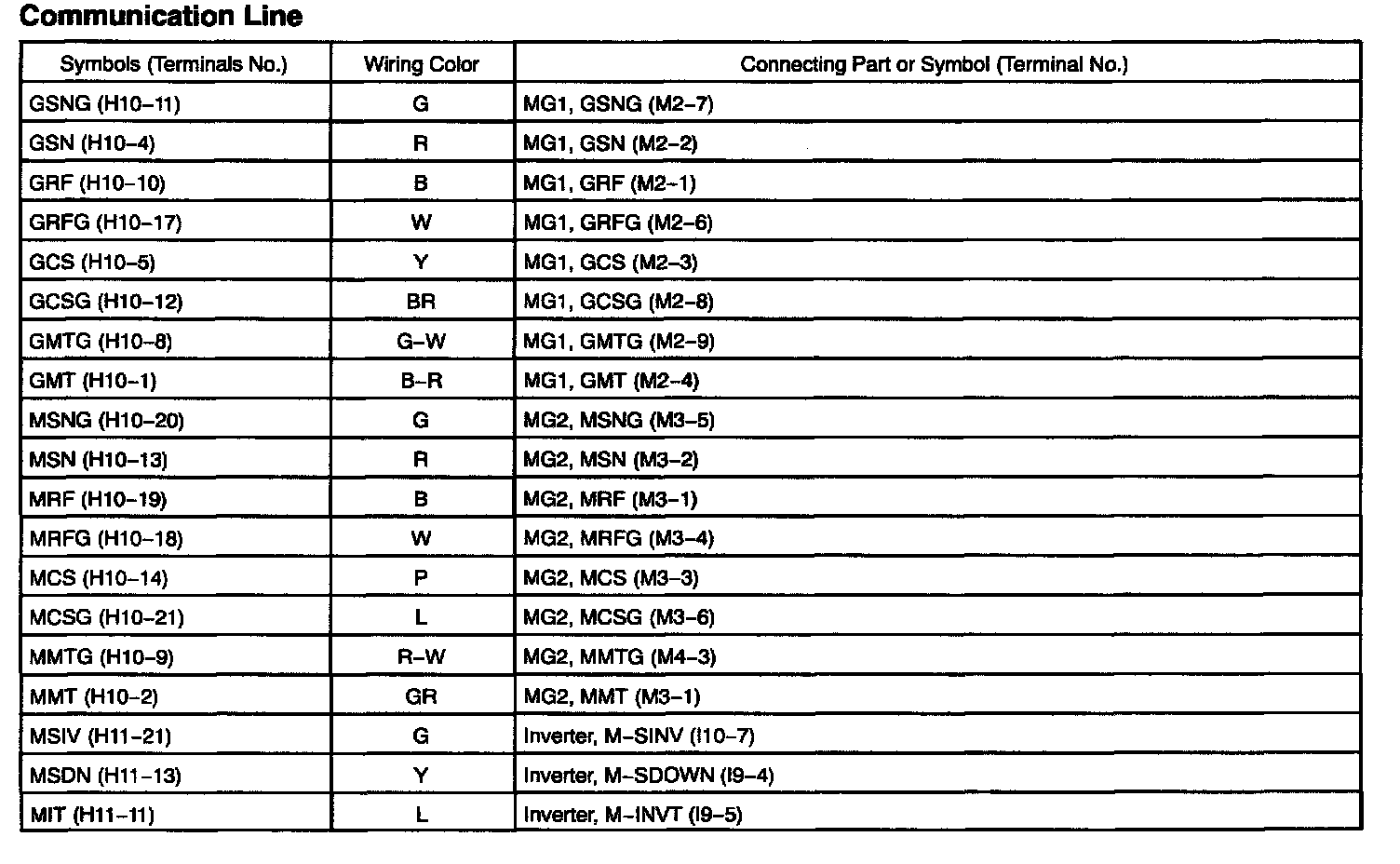

Terminals Of ECU/Pinouts Part 2:



Part 1:



Part 2:
