Fail-Safe Operation

FAIL-SAFE CHART

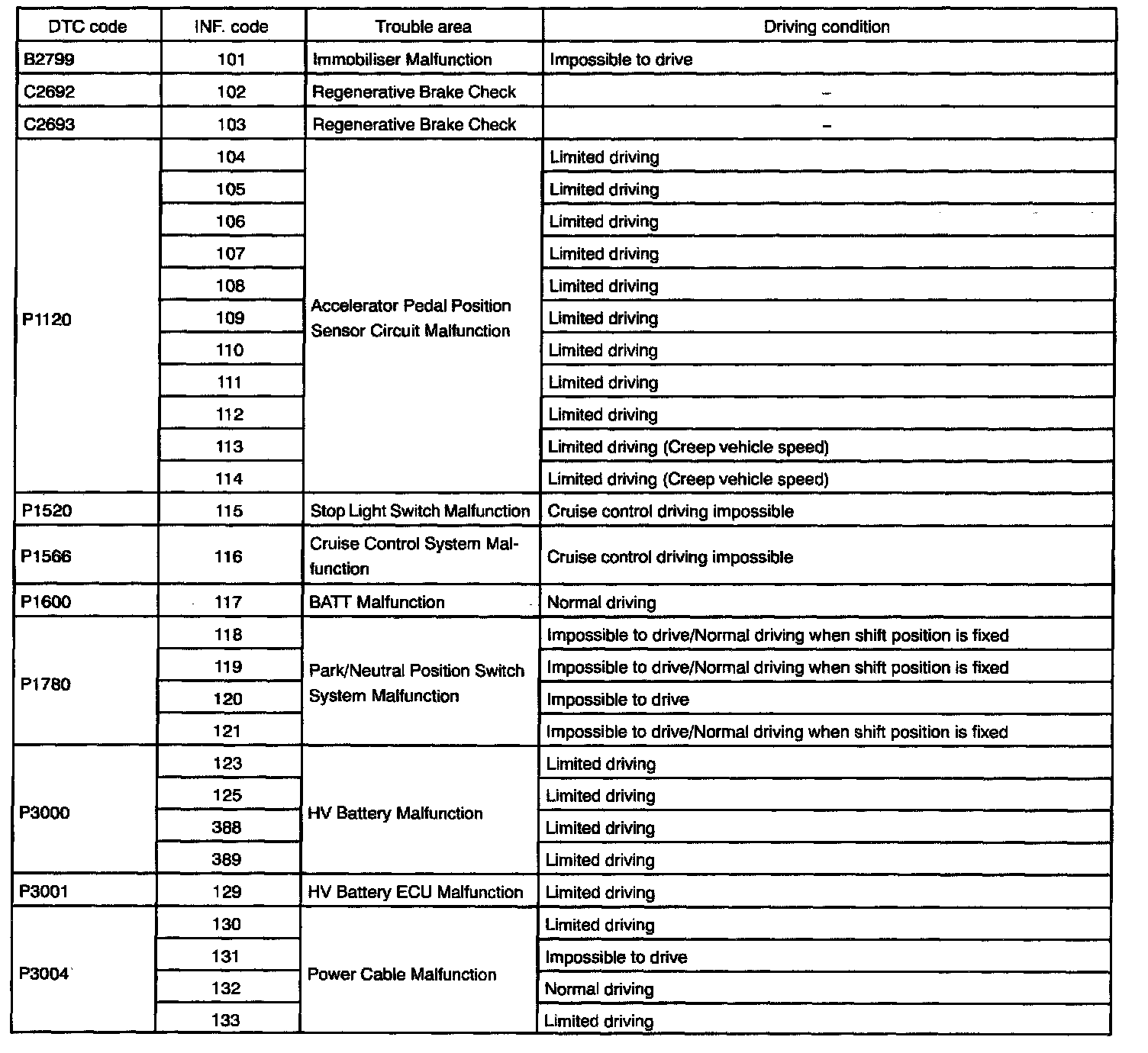

B2799, C2692 - C2693, P1120 - P3004:

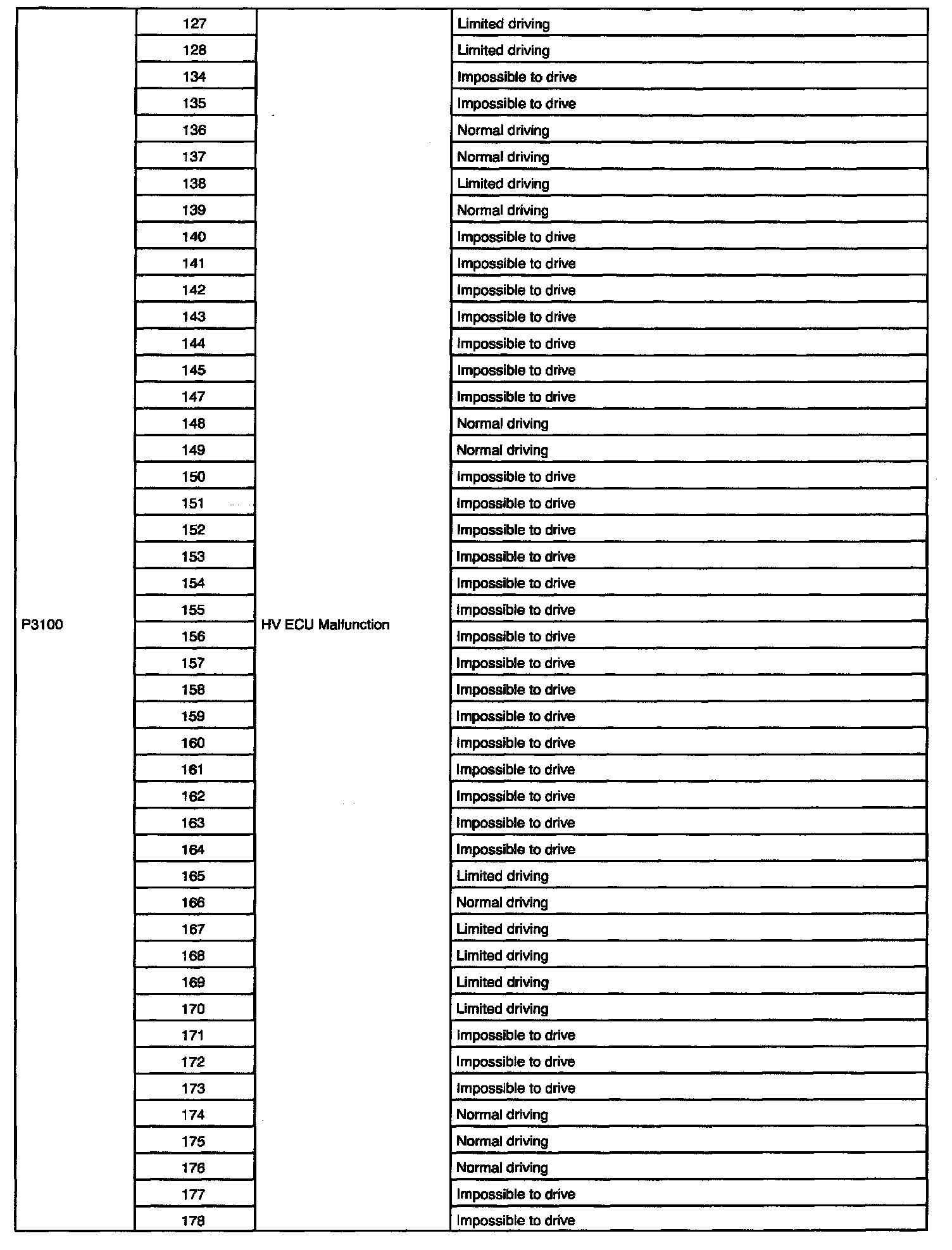

P3100:

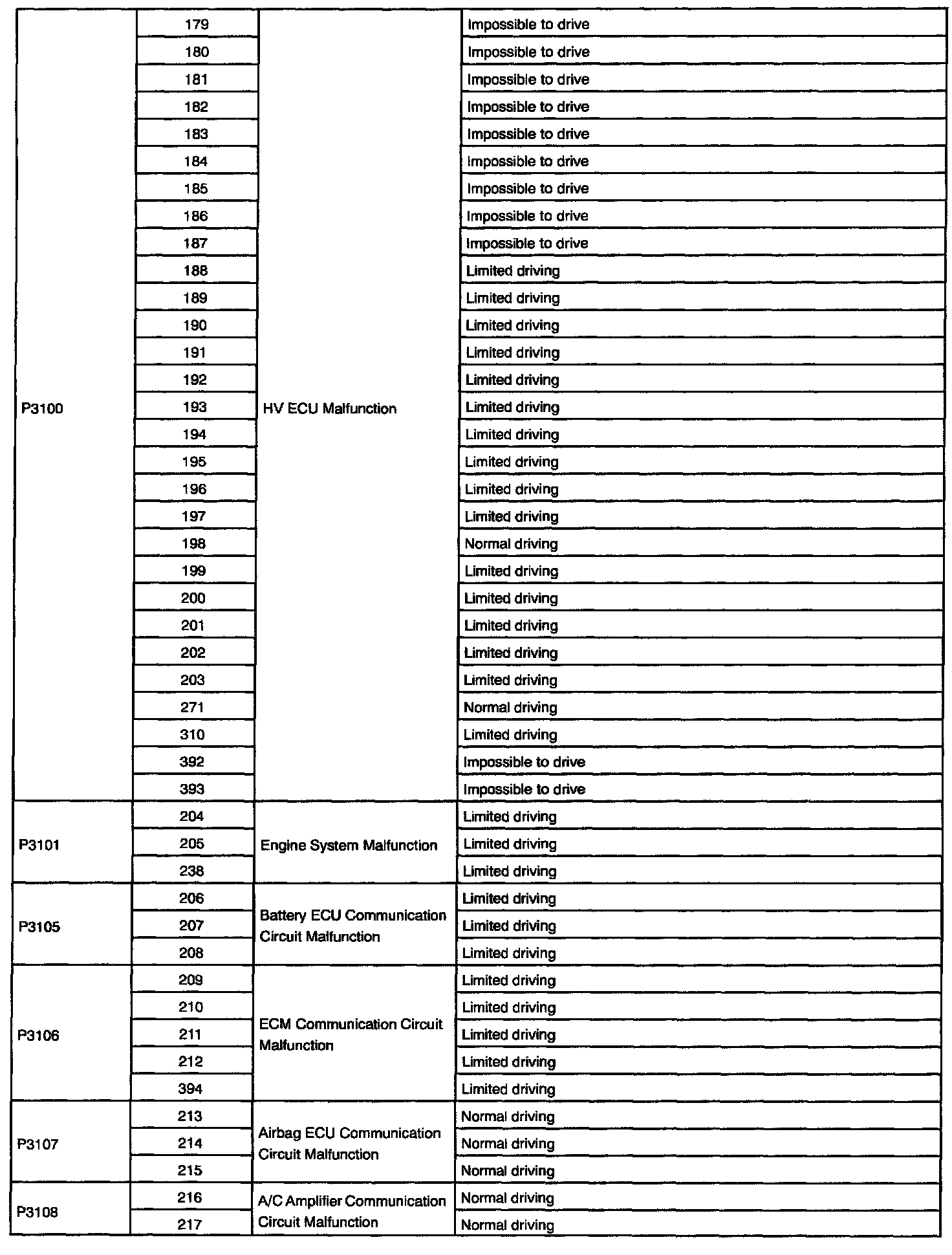

P3100 - P3108:

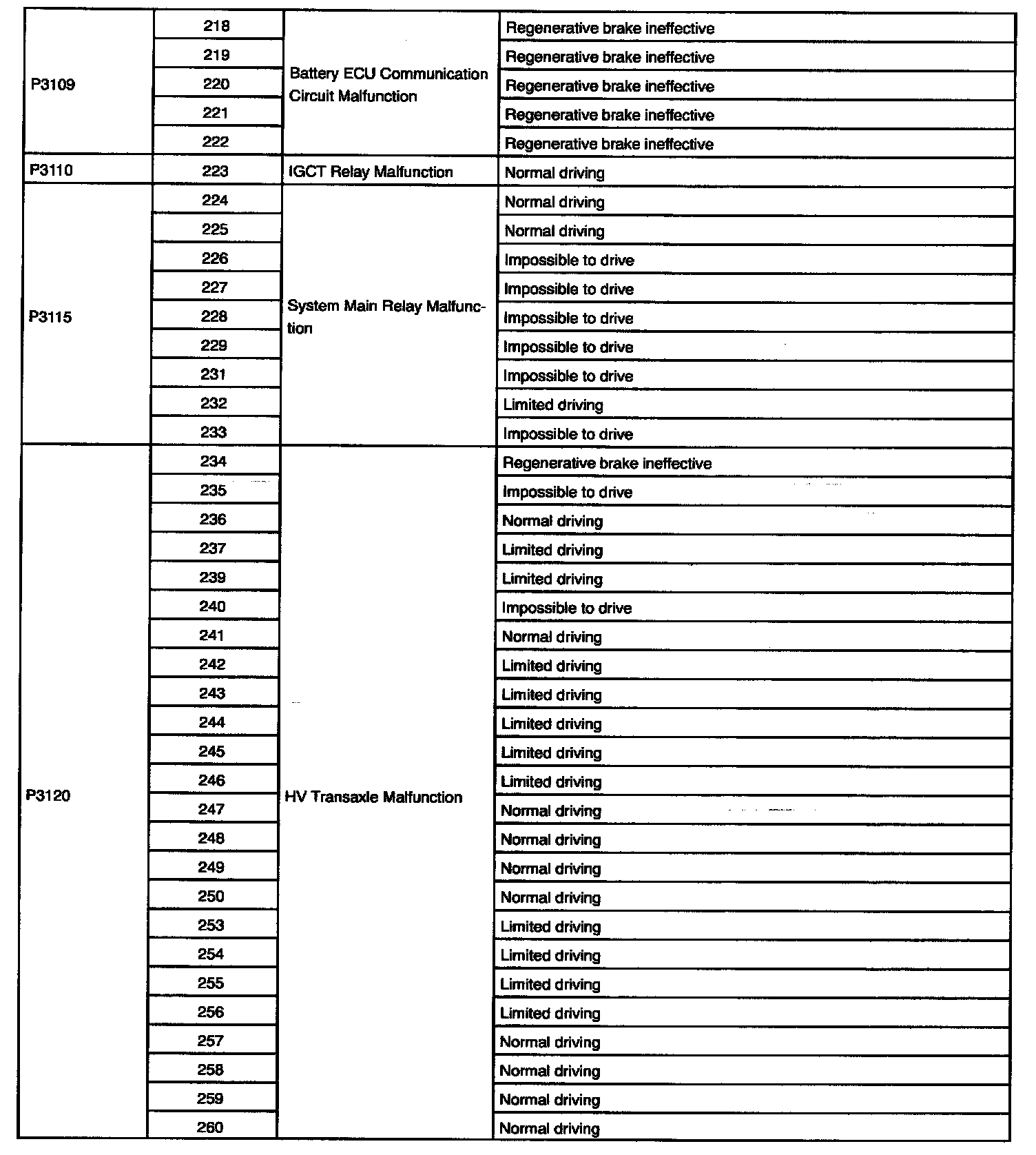

P3109 - P3120:

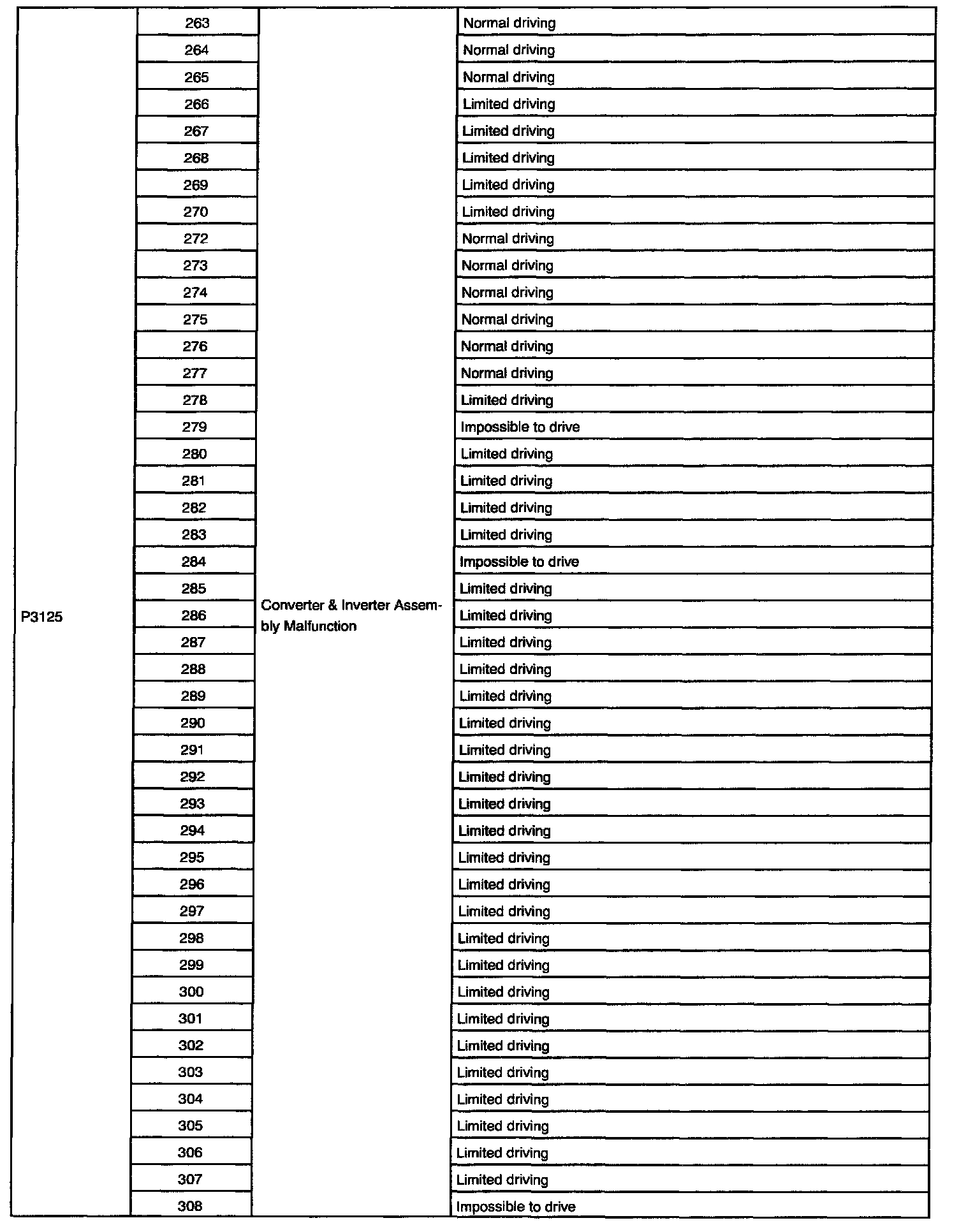

P3125:

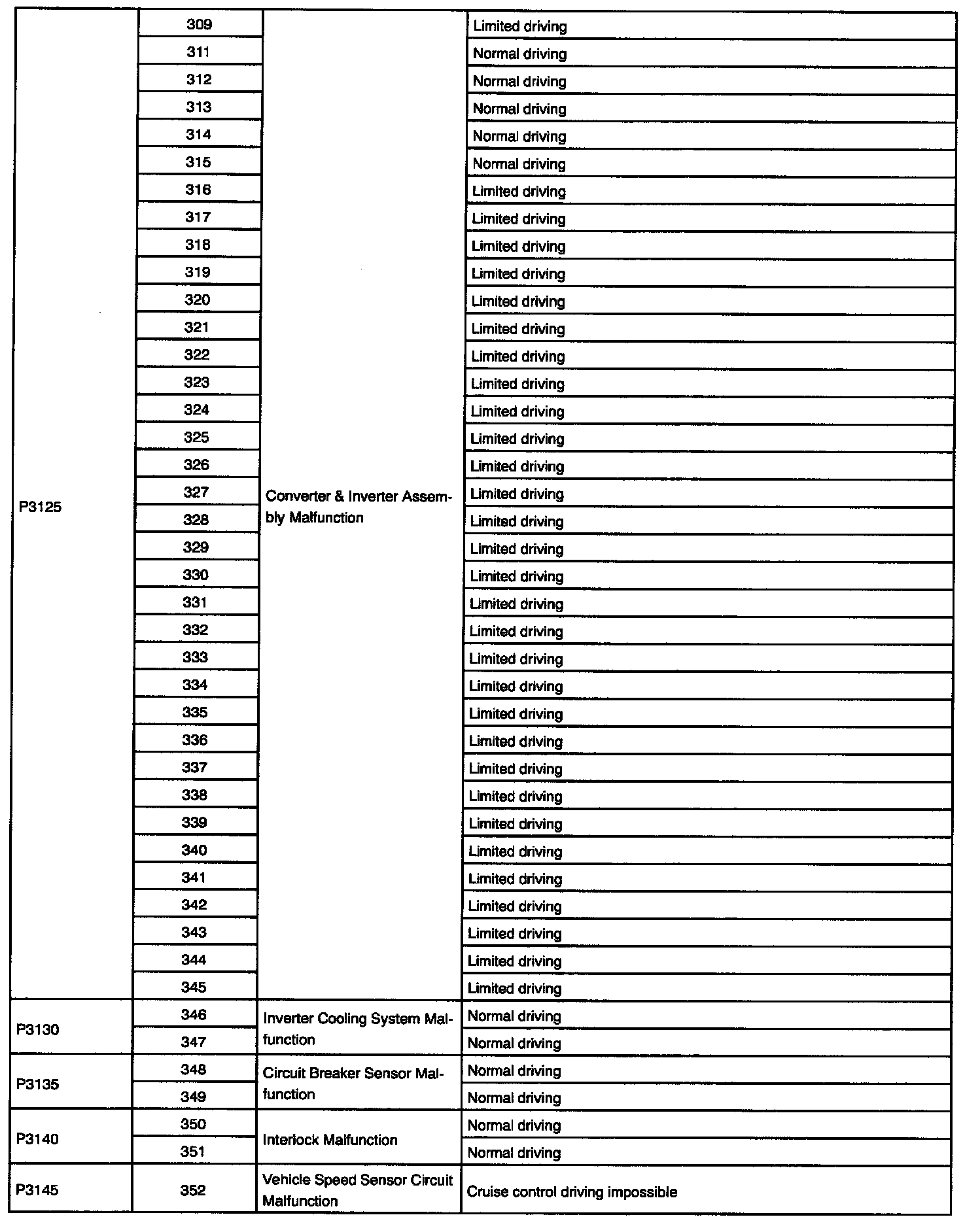

P3125 - P3145:




If any the codes is recorded, the HV ECU enters the fail safe mode.
