Voltage Inverter: Locations

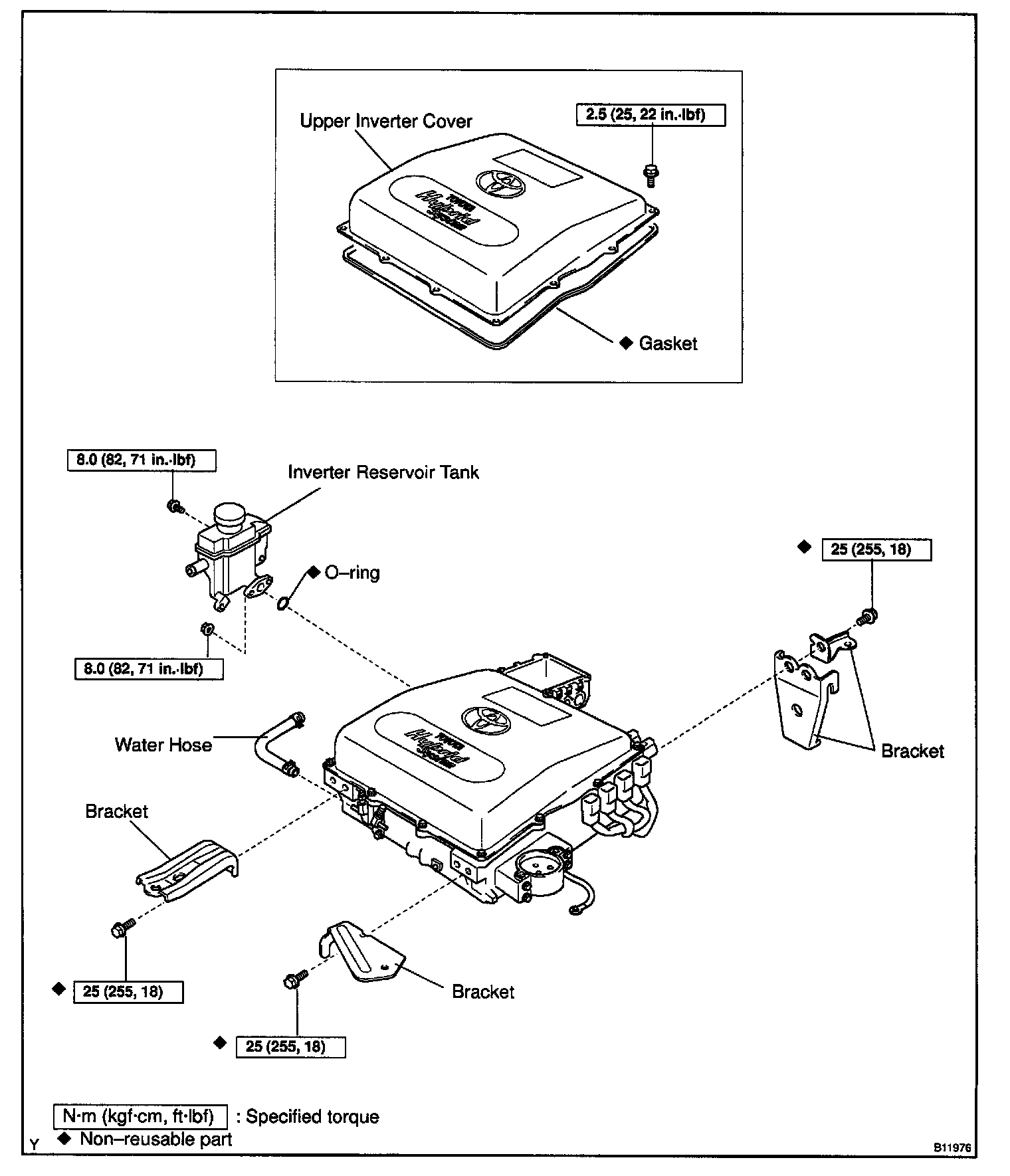

Converter And Inverter Assembly (Part 1):
Converter And Inverter Assembly (Part 2):
