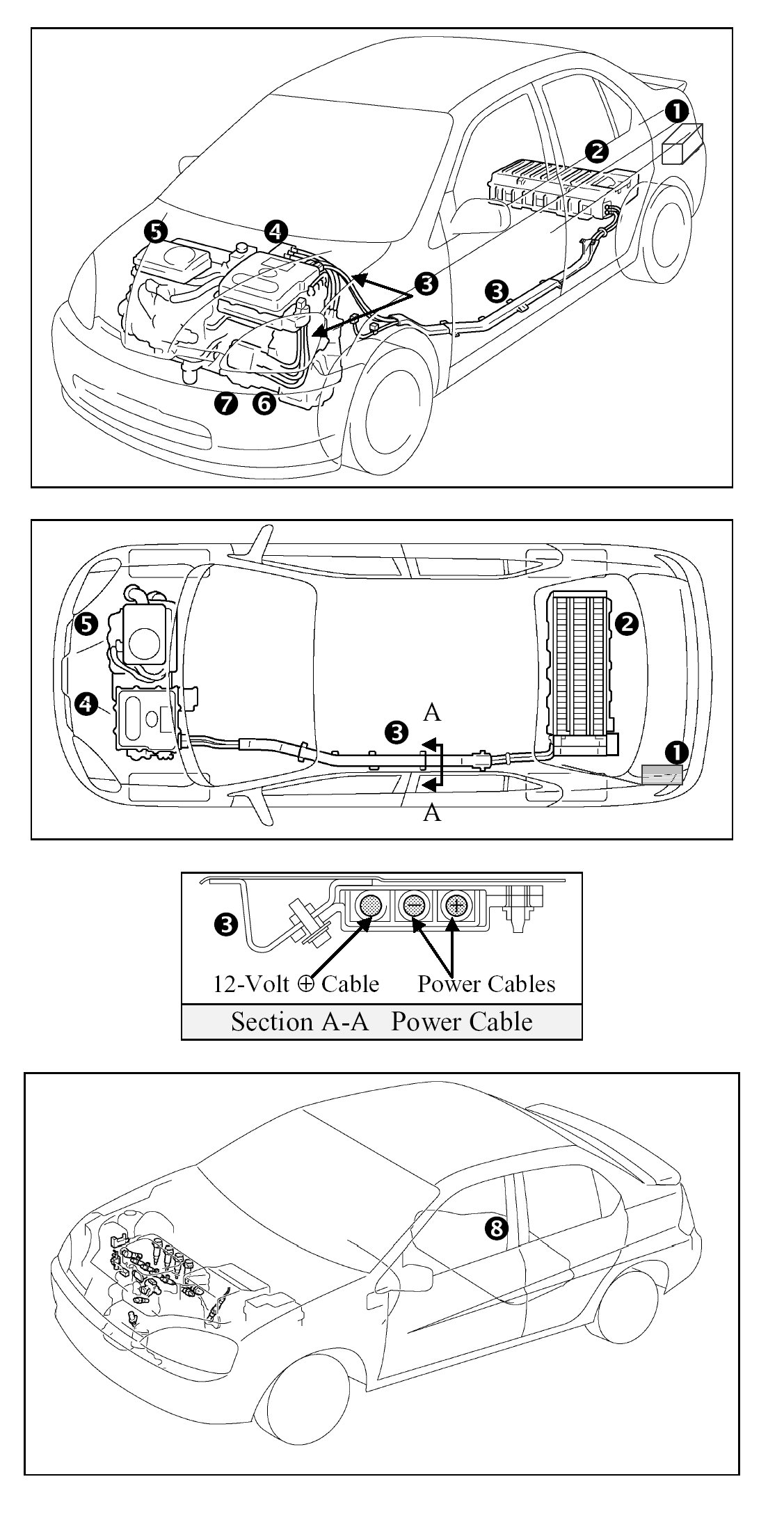

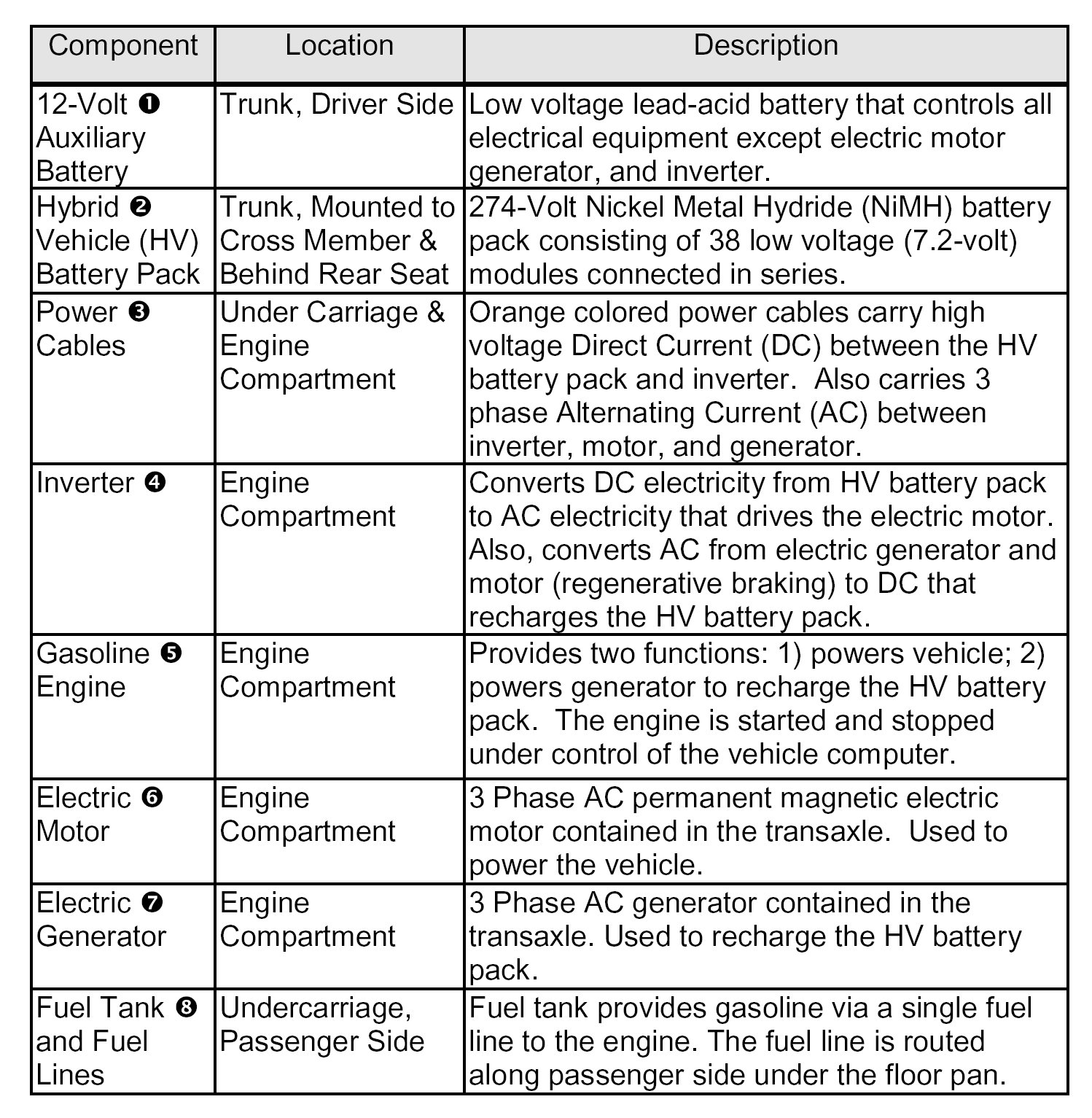

Hybrid Component Locations & Descriptions

Hybrid Component Locations & Descriptions






Specifications
Gasoline Engine: 70 hp, 1.5 liter Aluminum Alloy Engine Electric
Motor: 44 hp, Permanent Magnet Motor
Transmission: Automatic Only HV
Battery: 274-Volt Sealed NiMH
Curb Weight: 2,765 lbs
Fuel Tank: 11.9 gals
Fuel Economy: 52/45 (City/Hwy)
Frame Material: Steel Unibody & Steel Body Panels
