Hybrid Transaxle Assembly
Hybrid Transaxle Assembly

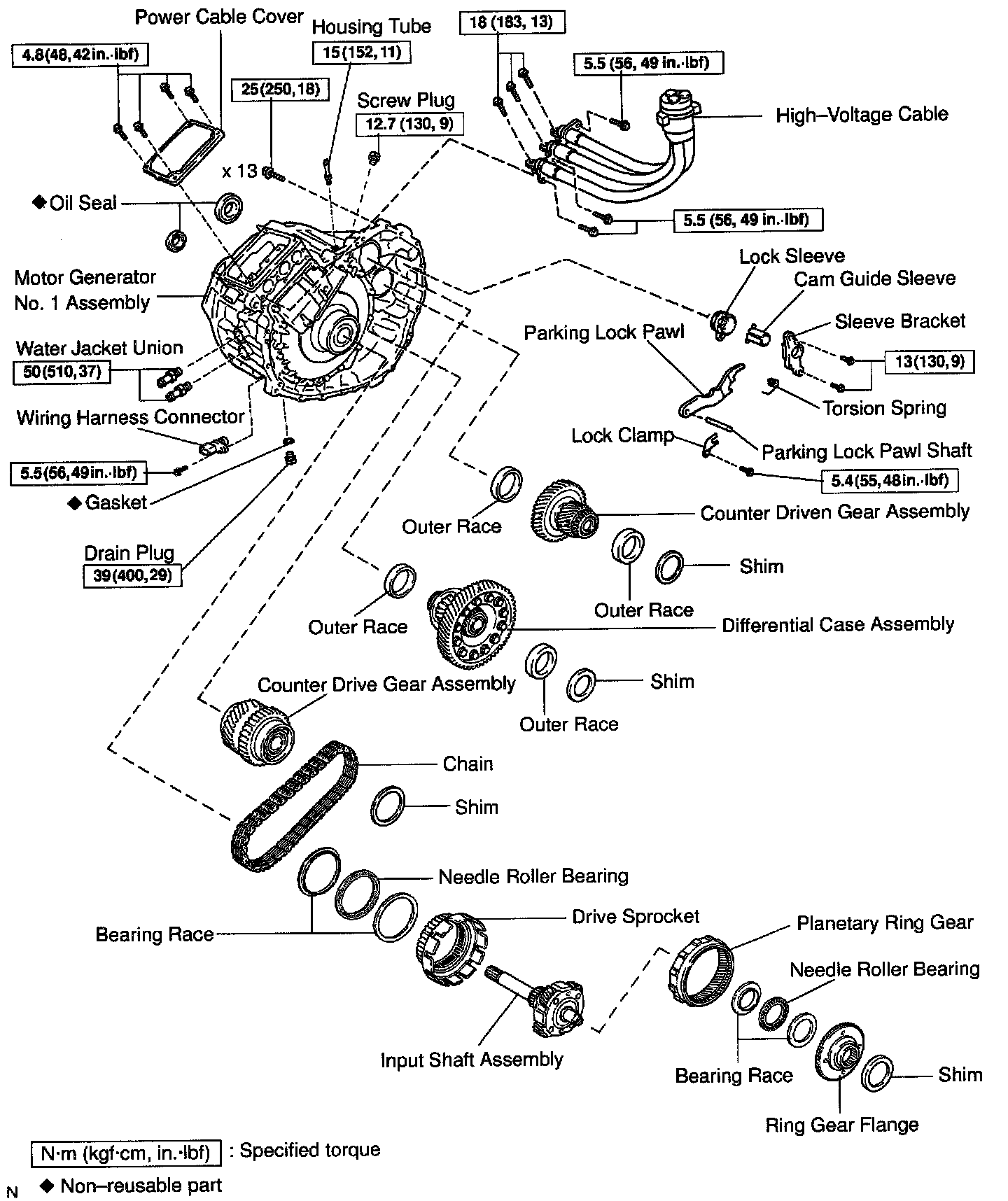

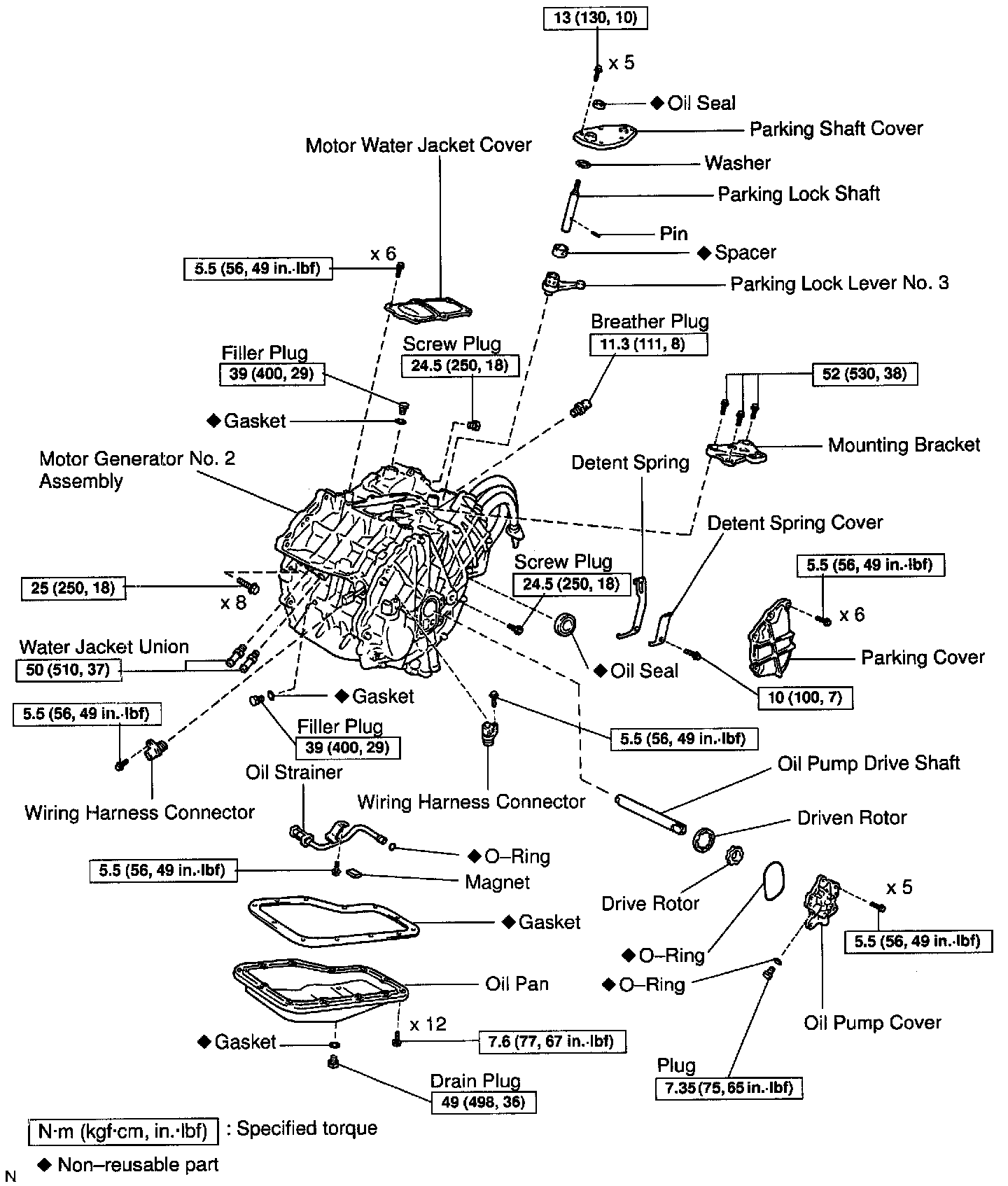

HYBRID TRANSAXLE ASSEMBLY OVERHAUL W/ RELATED COMPONENTS
