Battery System, Hybrid Drive: Locations

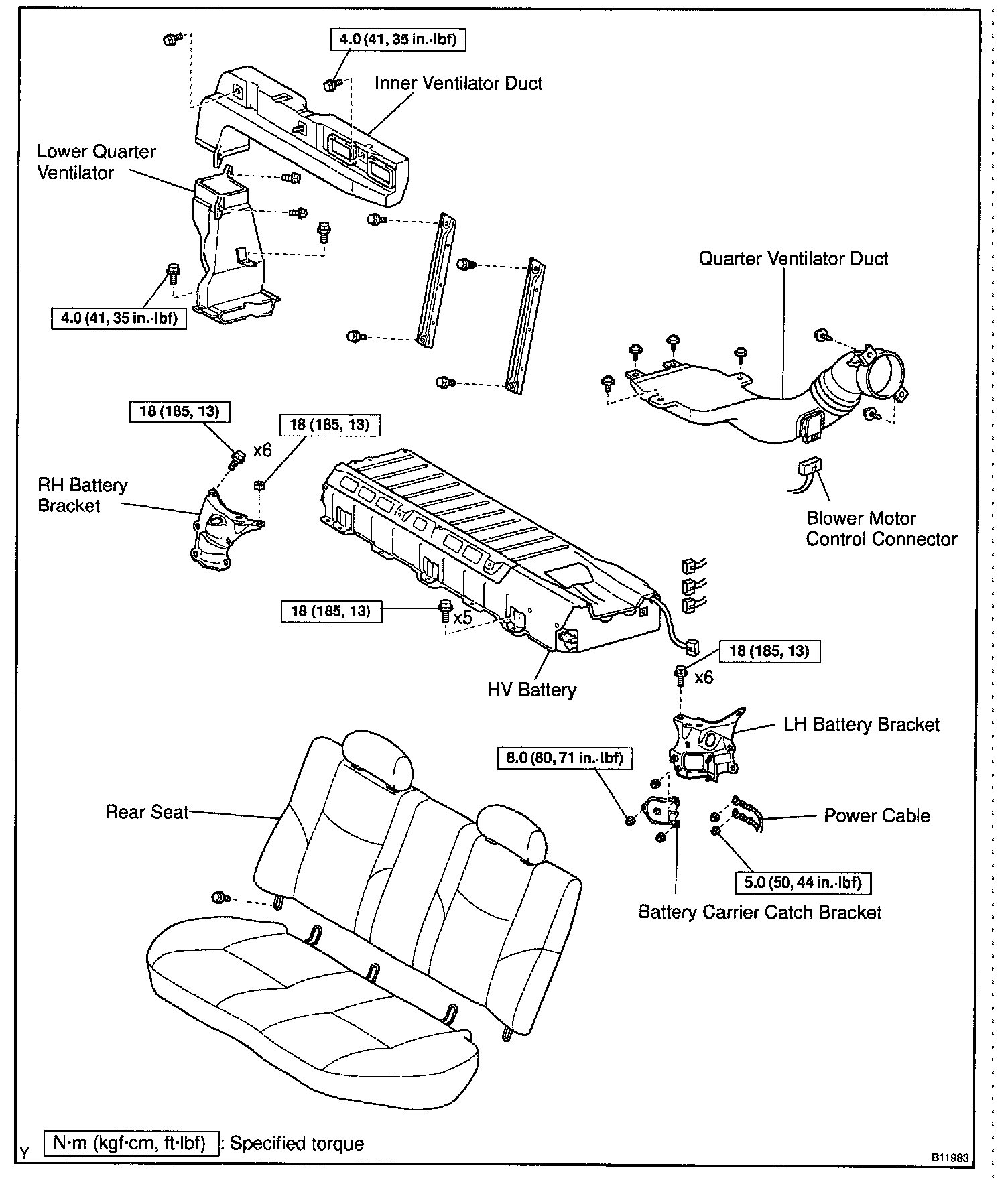

HV Battery (Part 1):

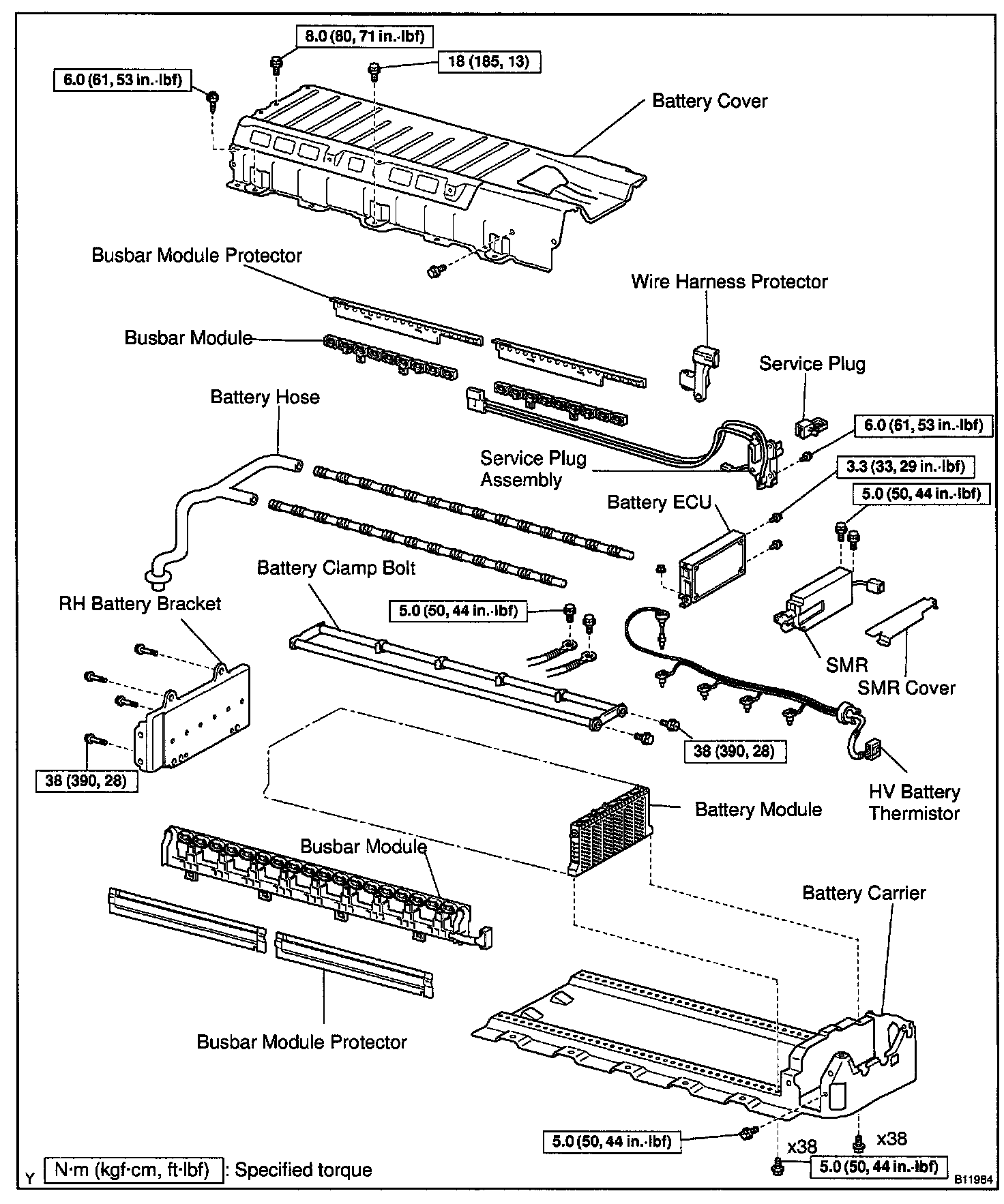

HV Battery (Part 2):

HV Battery Control System:
