Water Pump Circuit

CIRCUIT DESCRIPTION
This is the power source for the water pump motor.

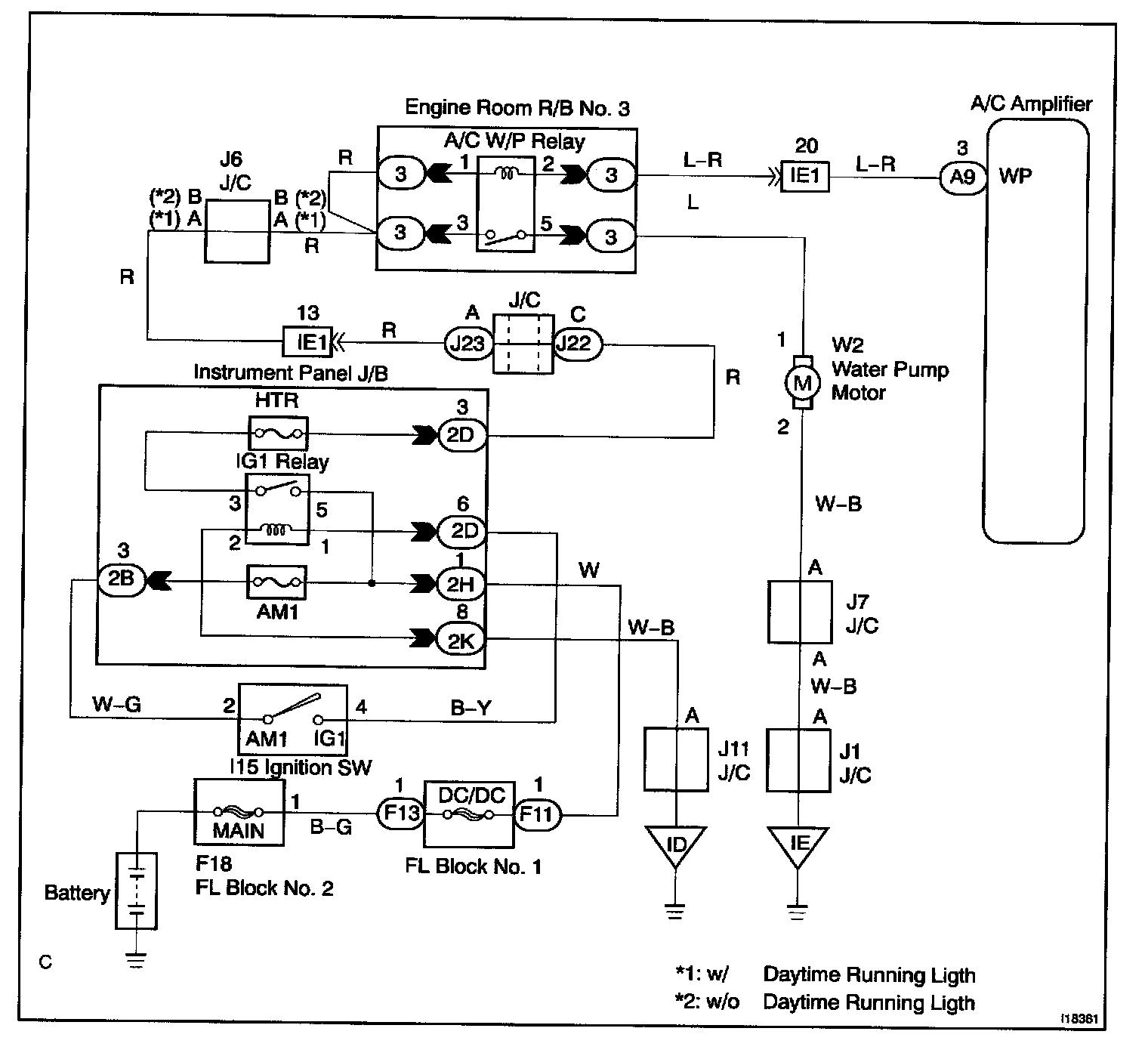

Wiring Diagram:

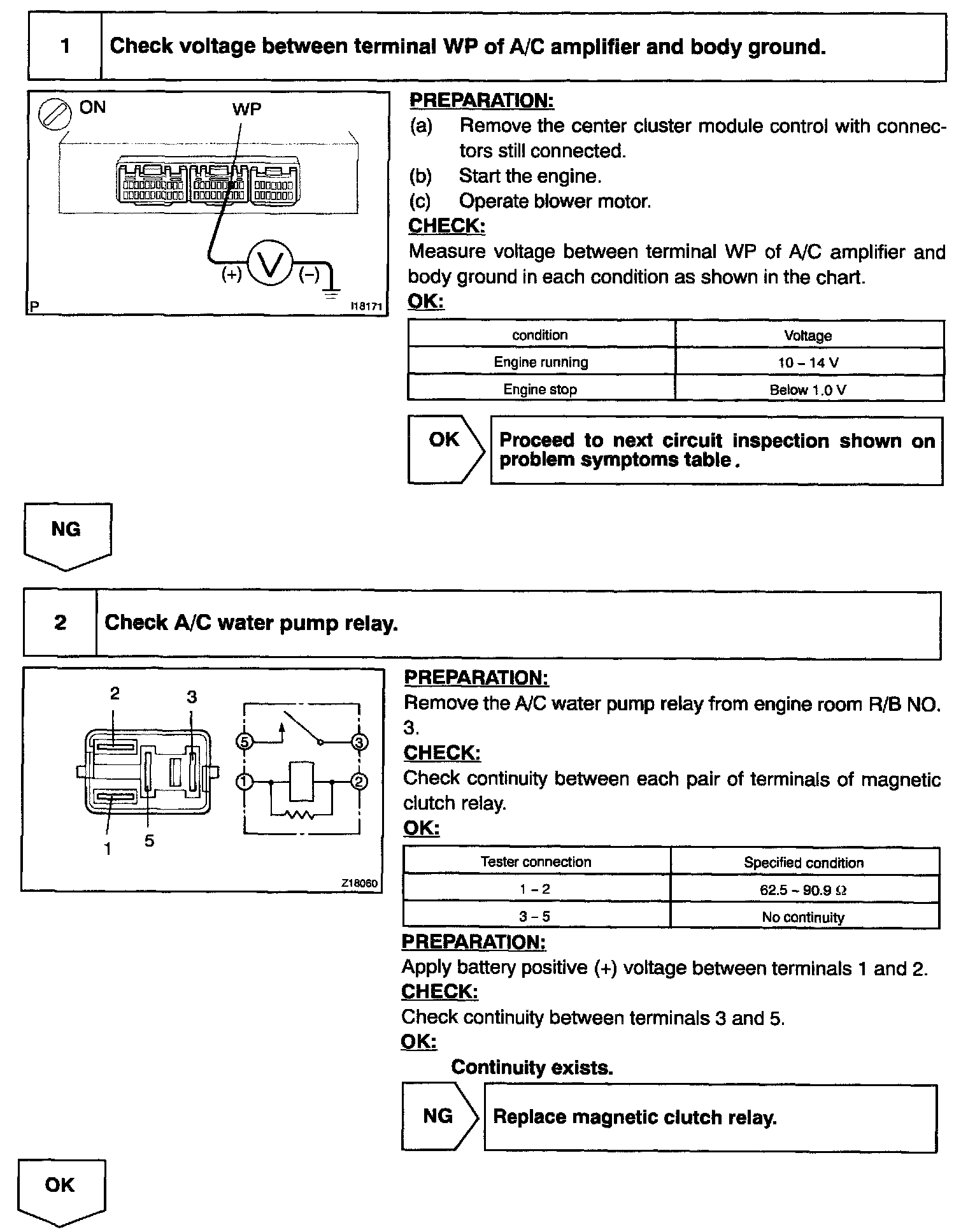

Step 1 - 2:

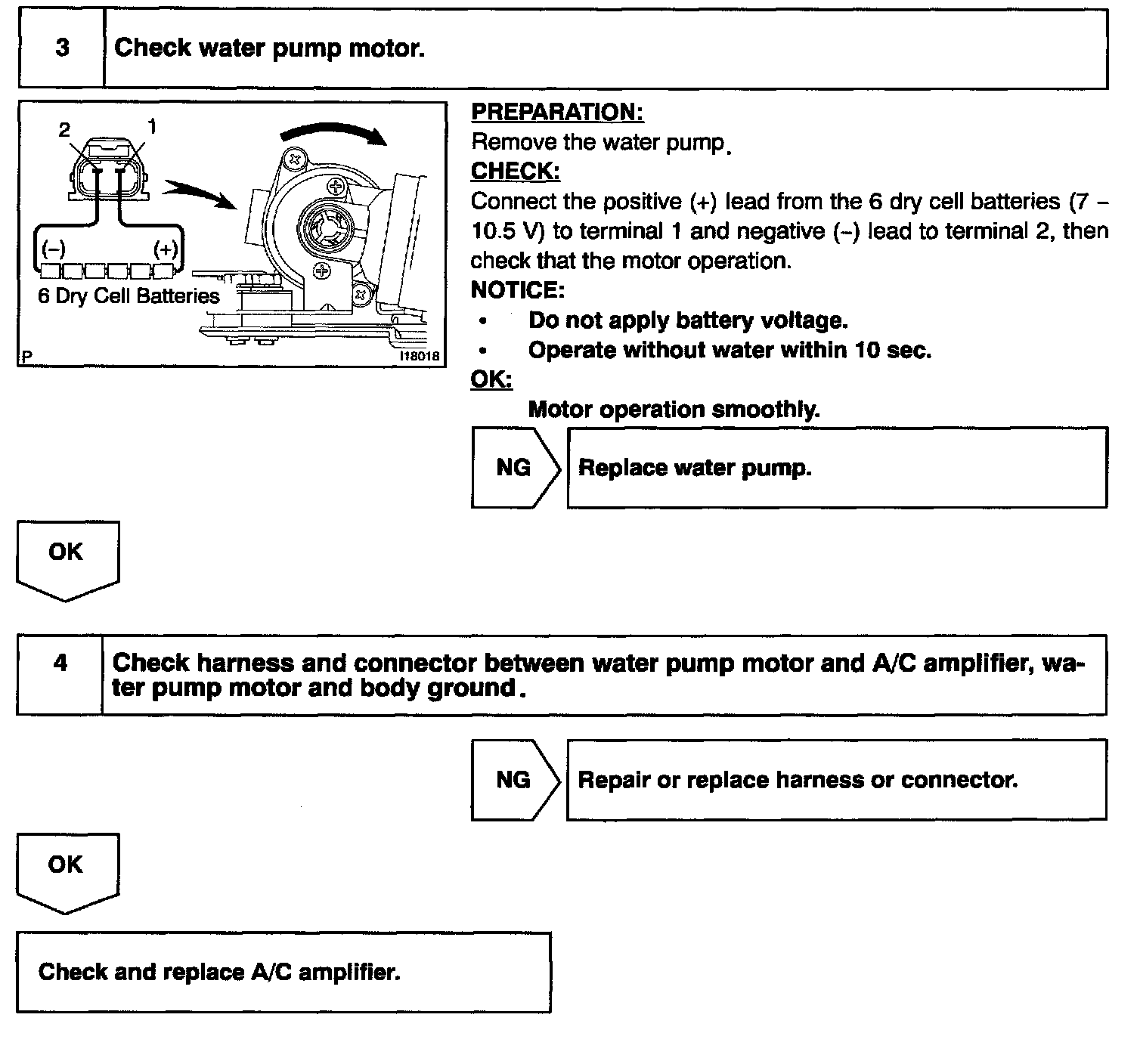

Step 3 - 4:




INSPECTION PROCEDURE
