PTC Heater Circuit (Quick Heater)

CIRCUIT DESCRIPTION
A/C amplifier switches the HTR3 relay ON by signal from the A/C amplifier. It supplies power to PTC heater (Quick heater).

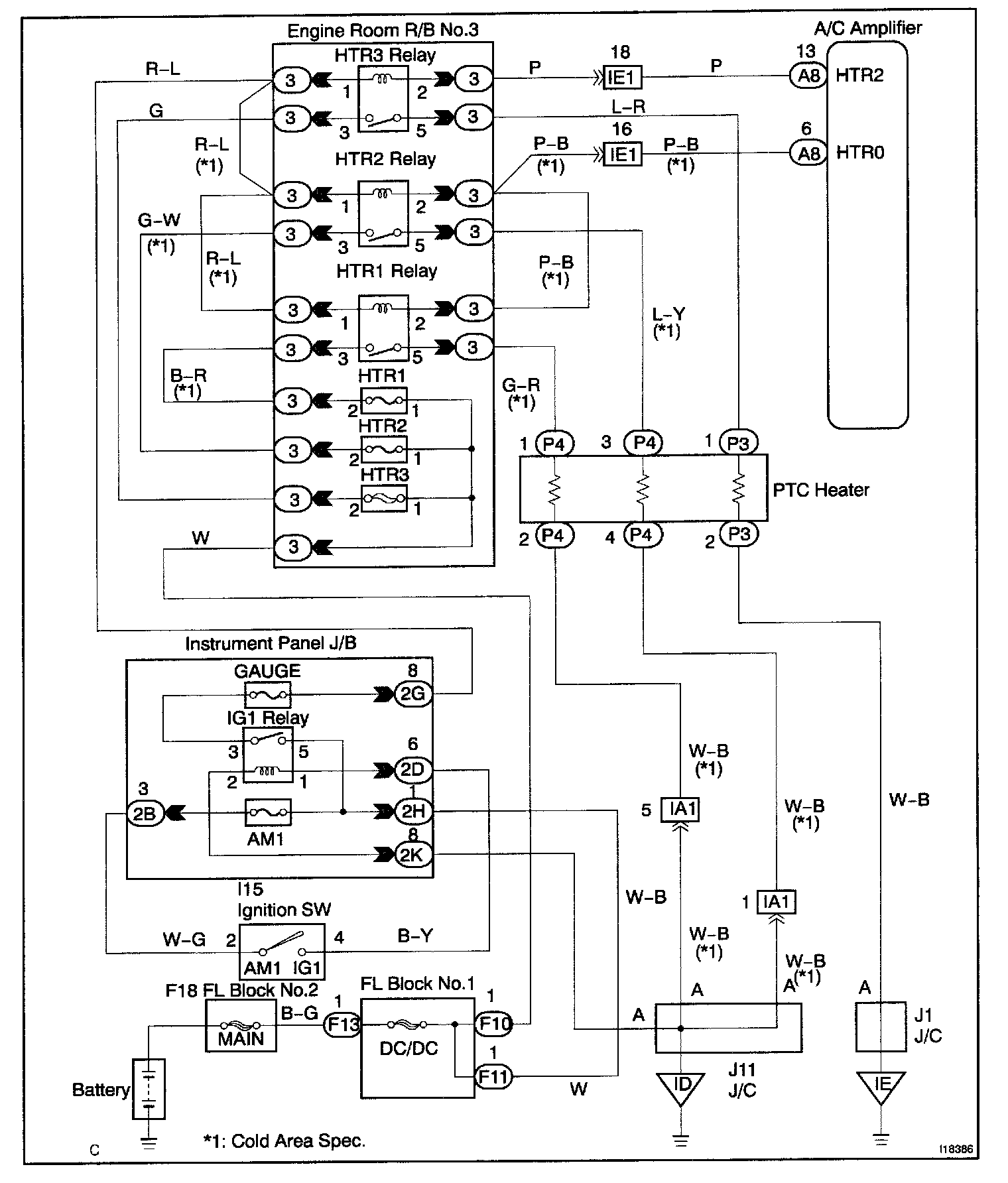

Wiring Diagram:

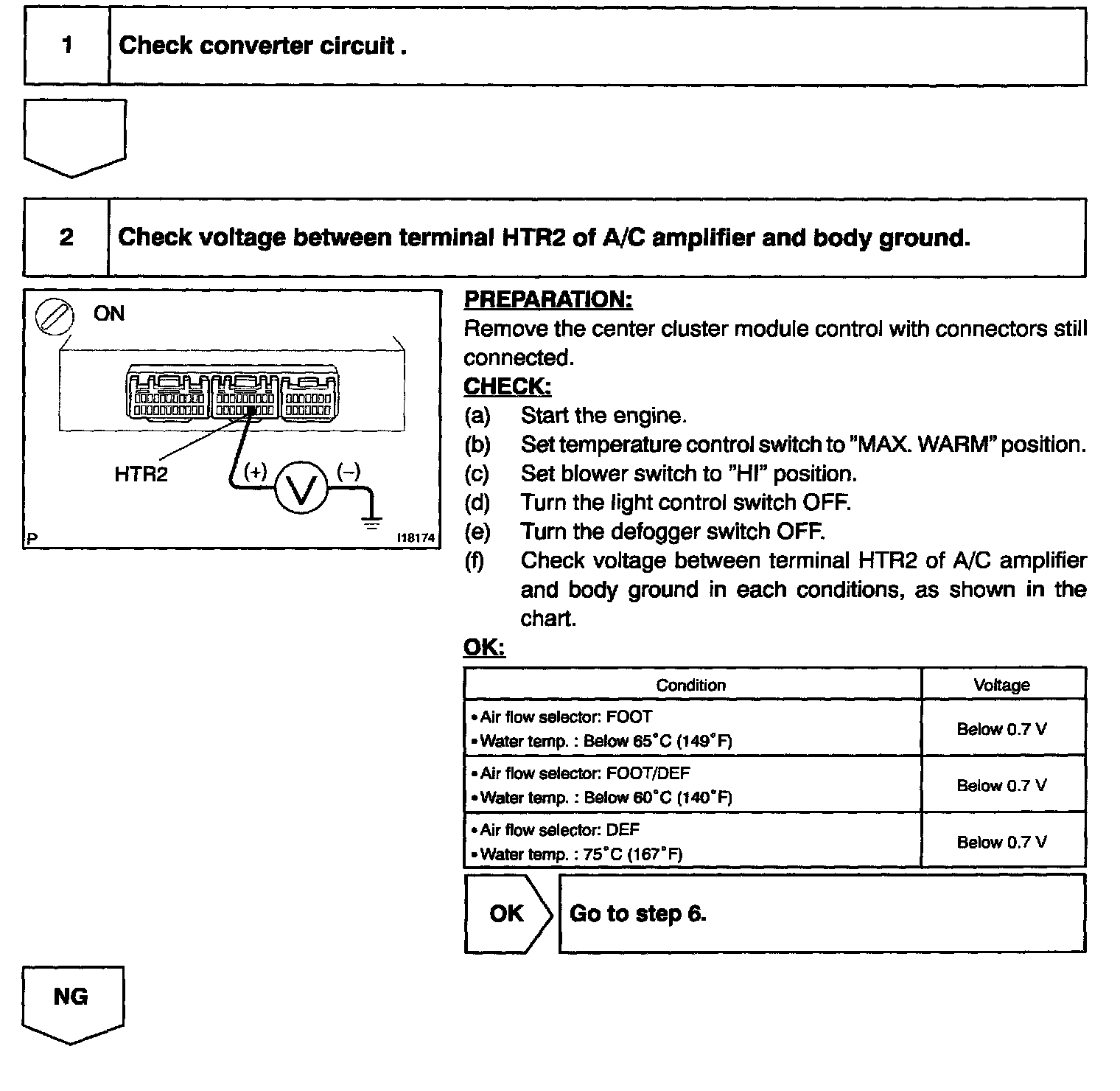

Step 1 - 2:

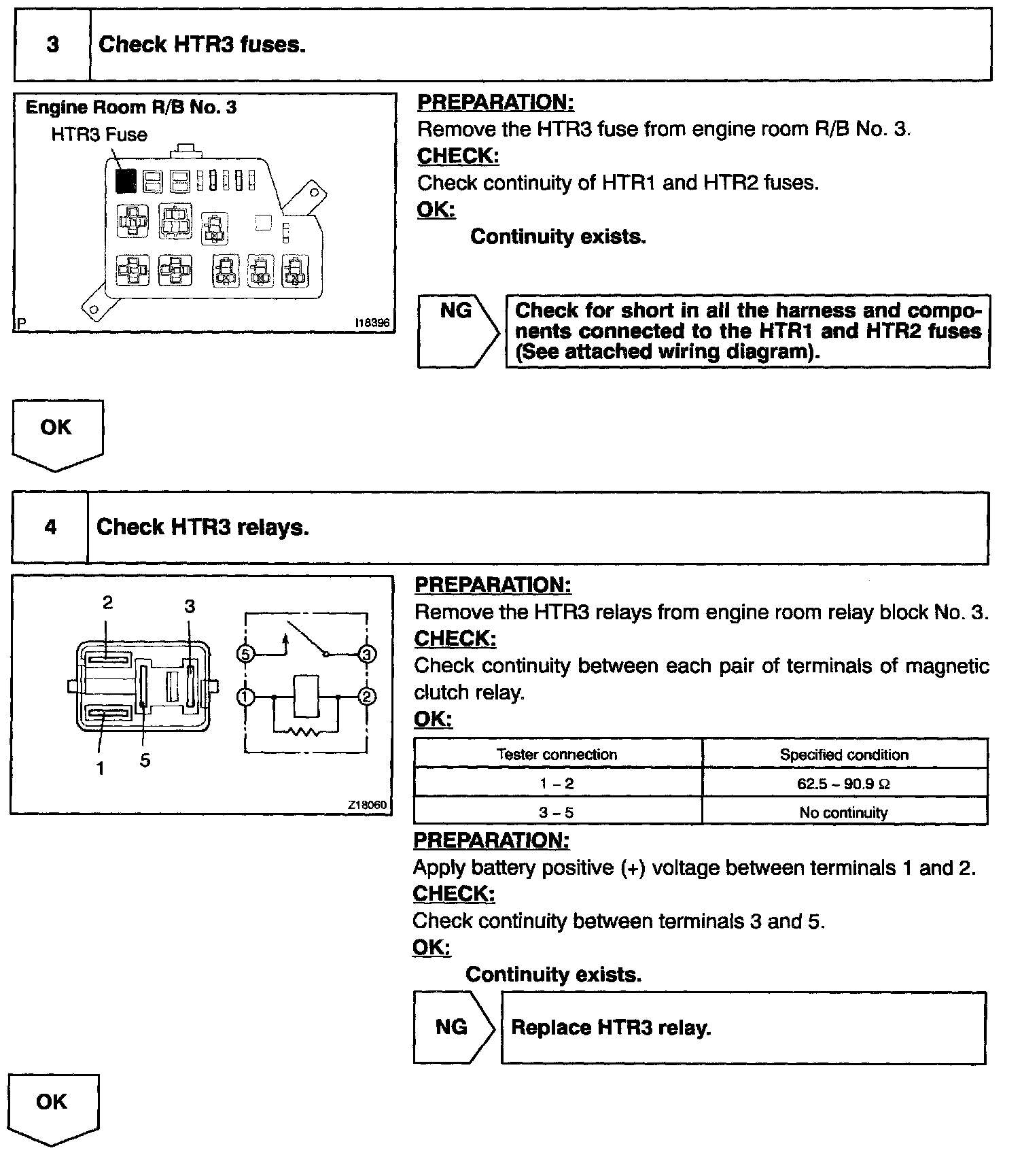

Step 3 - 4:

Step 5 - 6:

INSPECTION PROCEDURE
