PTC Heater Circuit (Heater Radiator)

CIRCUIT DESCRIPTION
A/C amplifier switches the HTR1 relay and HTR2 relay ON by signal from the A/C amplifier. It supplies power to PTC heater (Heater radiator).

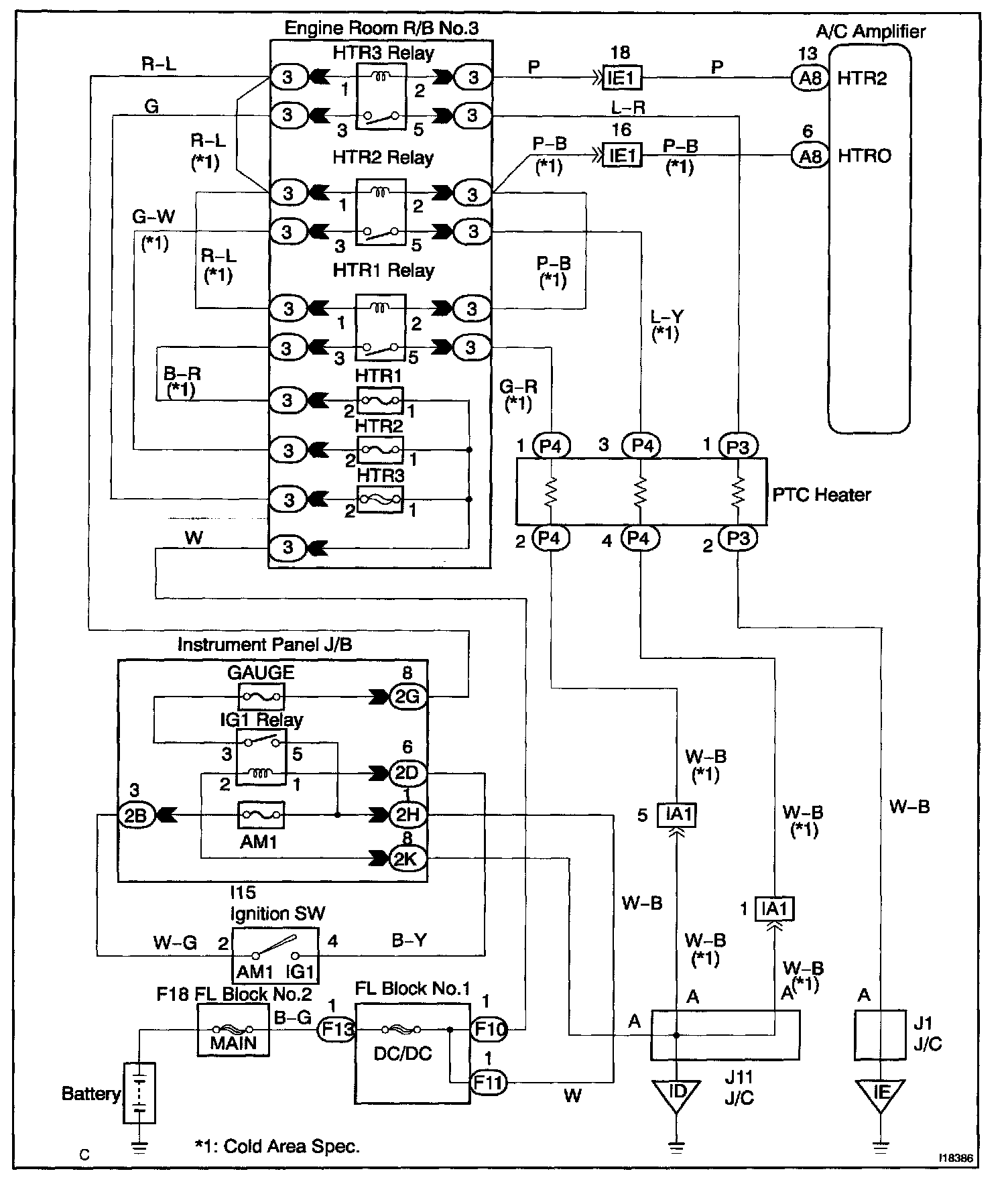

Wiring Diagram:

Step 1 - 2:

Step 3 - 4:

Step 5 - 6:

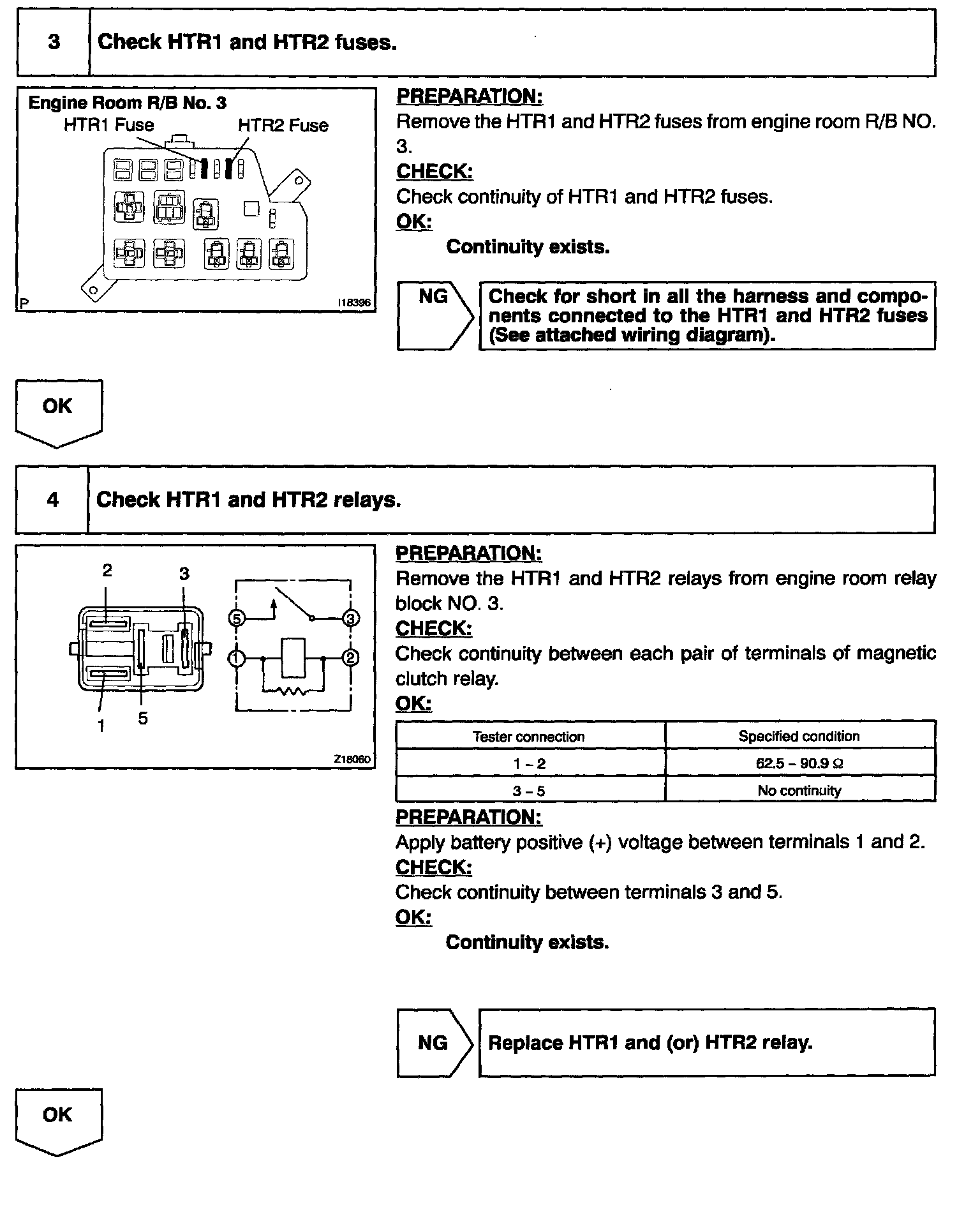

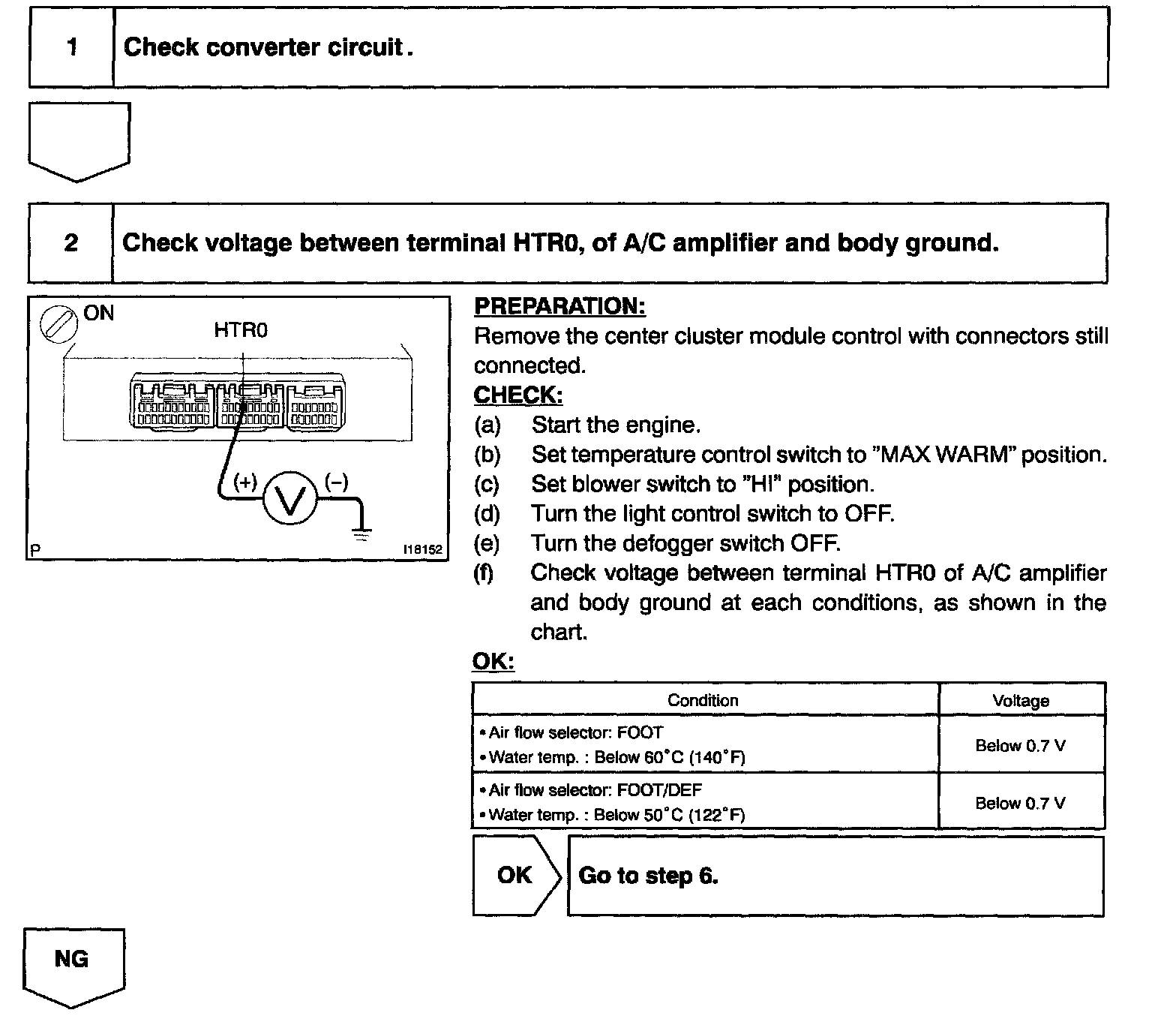

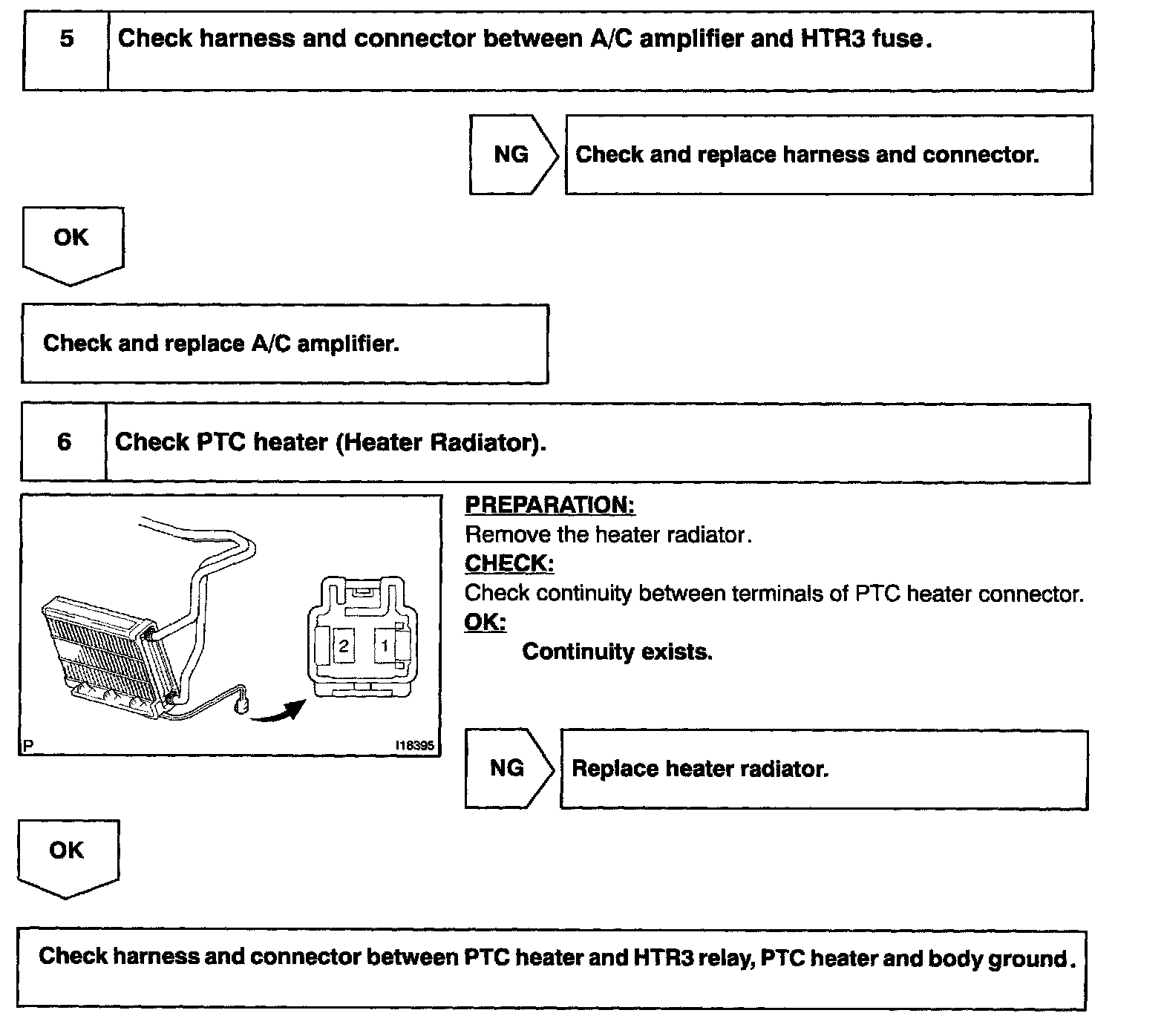

INSPECTION PROCEDURE
