Evaporator Temperature Sensor / Switch: Service and Repair
THERMISTORINSPECTION
1. REMOVE BLOWER UNIT

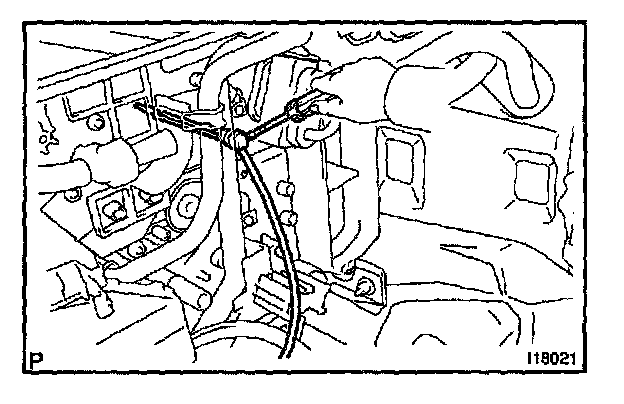

2. REMOVE THERMISTOR
a. Disconnect the connector.
b. Using a screwdriver, pull out the thermistor.
HINT: Tape the screwdriver tip before use.
3. INSPECT THERMISTOR
Refer to diagnostic information at Heating and Air Conditioning; Testing and Inspection.
4. INSTALL THERMISTOR
5. INSTALL BLOWER UNIT
