Disassembly And Reassembly

DISASSEMBLY

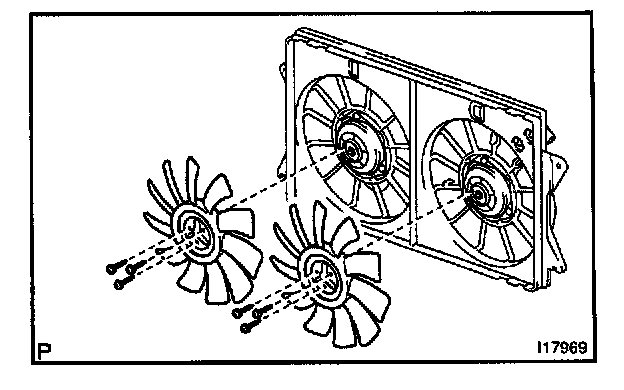

1. REMOVE FANS
Remove the 6 screws and 2 fans.

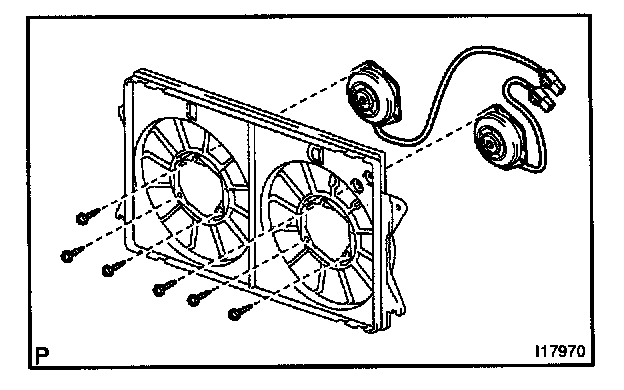

2. REMOVE FAN MOTOR FROM FAN SHROUD
a. Disconnect the connector.
b. Remove the 6 screws and 2 motors.

REASSEMBLY
Reassembly is in the reverse order of disassembly.
