Cabin Air Filter / Purifier: Service and Repair

REPLACEMENT

1. REMOVE AIR REFINER FILTER

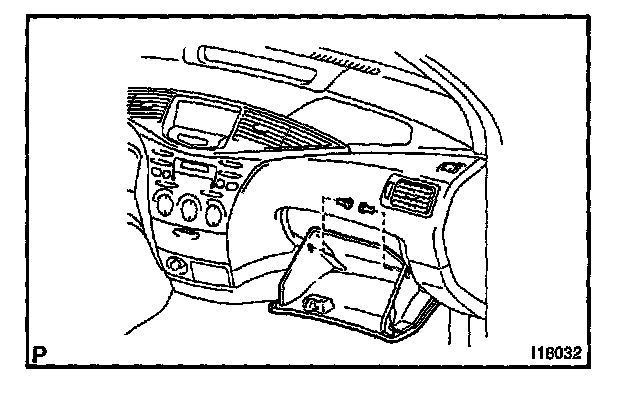

a. Remove the 2 pins in the glove box and open the glove box widely by pulling it down.

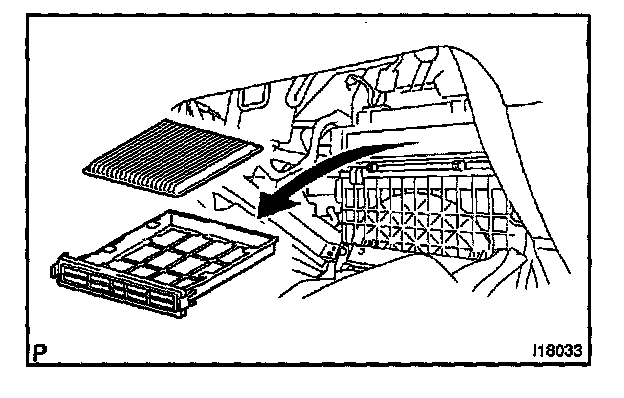

b. Pull out the filter case.
c. Remove the air refiner filter from the filter case.

2. INSTALL AIR REFINER FILTER
