Removal and Installation

REMOVAL

1. REMOVE GLOVE COMPARTMENT DOOR
2. DISCONNECT CONNECTOR
3. REMOVE BLOWER UNIT

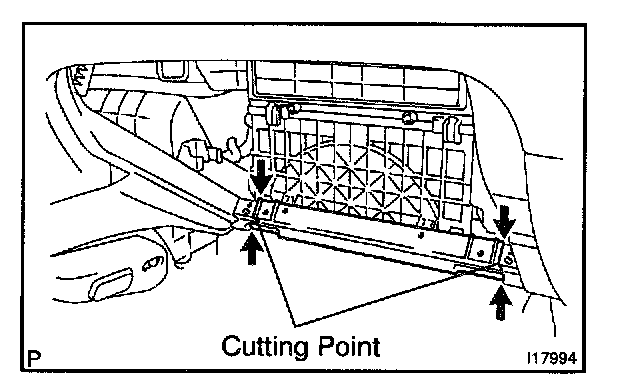

a. Using a knife, cut off the reinforcement of glove compartment.

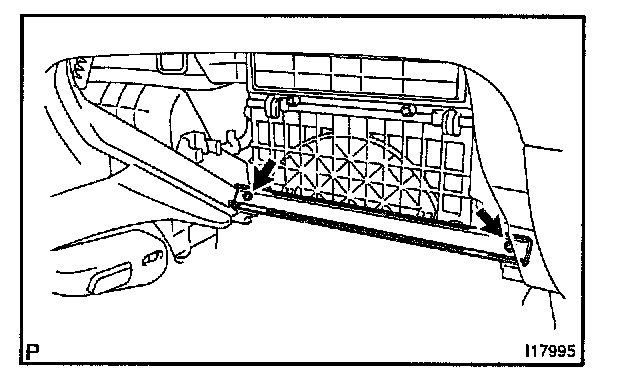

HINT: At the time of installation, please refer to the following item.Install the glove compartment door reinforcement (supply parts), instead of cutting reinforcement.

Part No.: 55558-47010

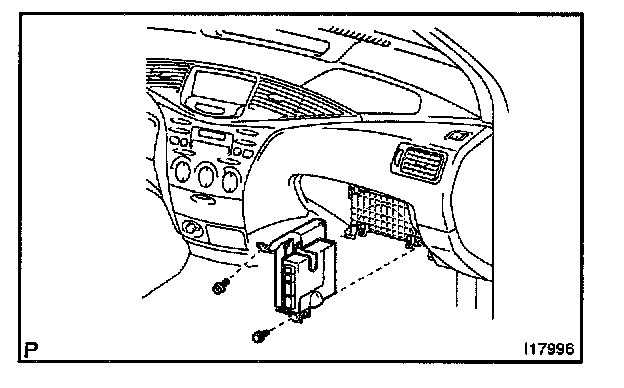

b. Remove the 2 bolts and ECM & EMPS ECU.

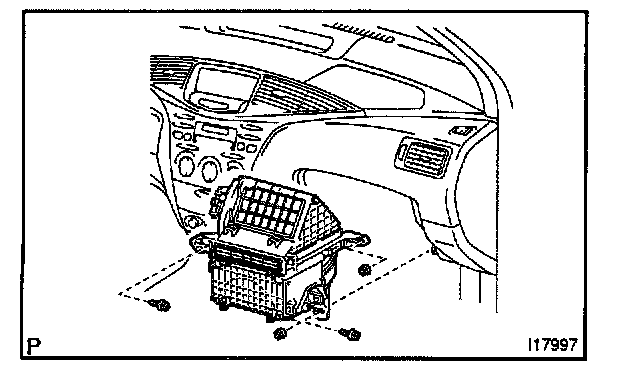

c. Remove the 2 screws and 2 nuts.
d. Remove the blower unit.

INSTALLATION
Installation is in the reverse order of removal.
