Disassembly and Reassembly

DISASSEMBLY

1. REMOVE AIR REFINER FILTER




2. REMOVE BLOWER MOTOR CONTROL

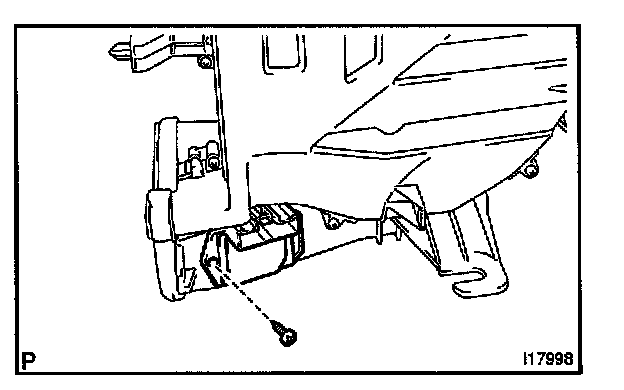

Remove the screw and blower motor control.
3. REMOVE BLOWER MOTOR

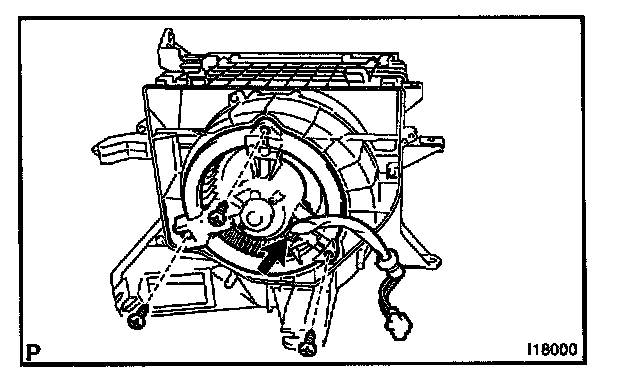

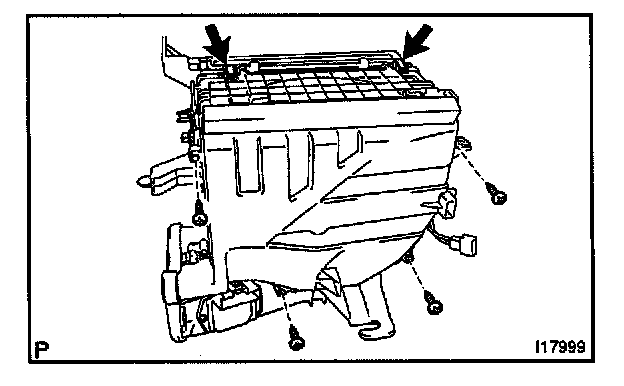

a. Remove the 4 screws and 2 clips.
b. Remove the blower case.




c. Disconnect the connector.
d. Remove the 3 screws and blower motor.




4. REMOVE AIR INLET SERVOMOTOR

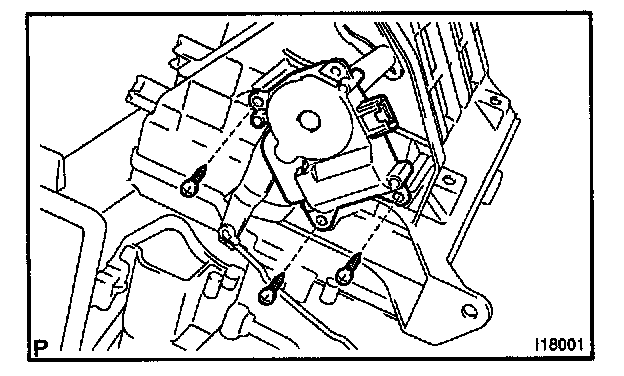

Remove the 3 screws and servomotor.

REASSEMBLY
Reassembly is in the reverse order of disassembly.
