System Diagram

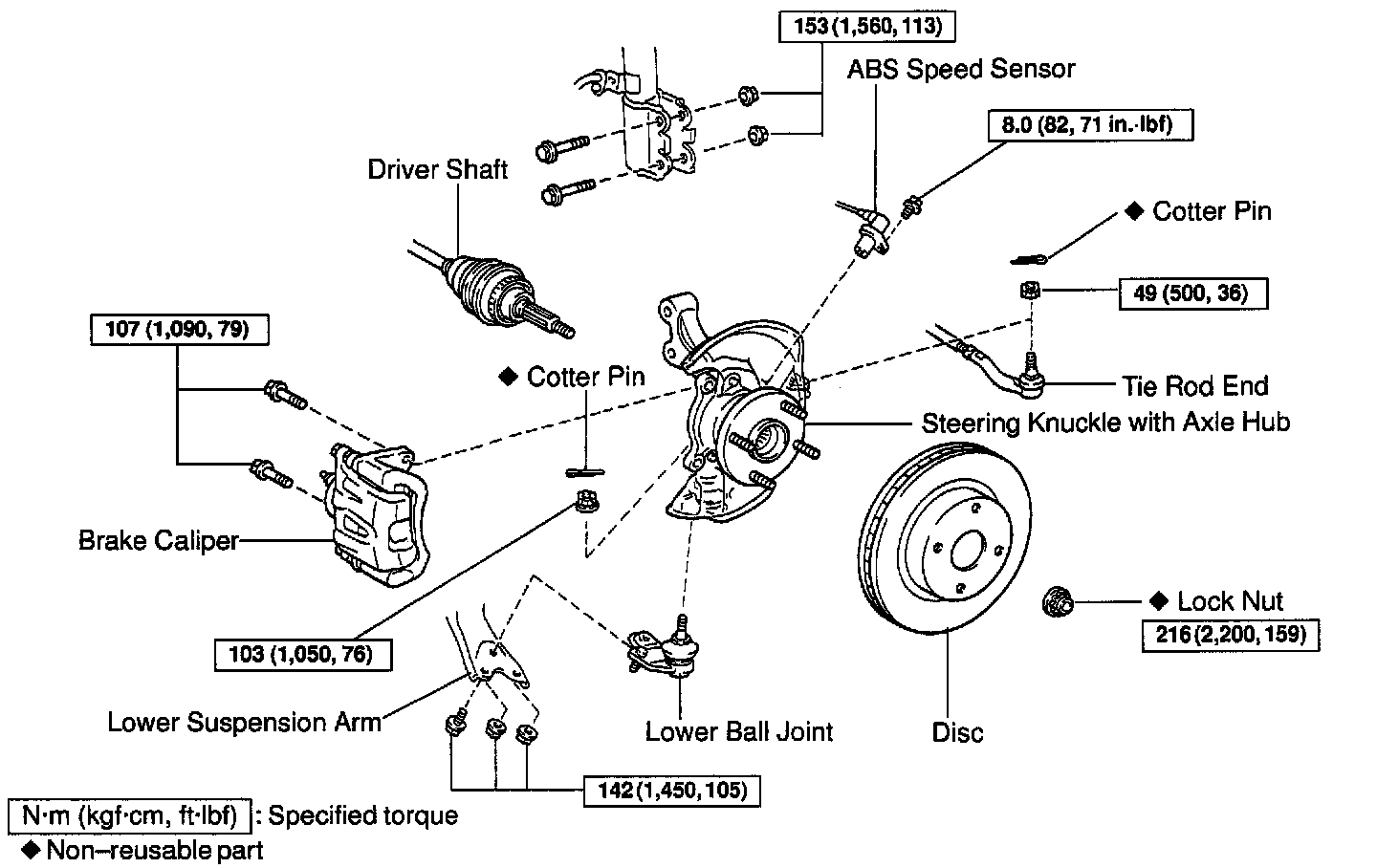

FRONT AXLE HUB

FRONT DRIVE SHAFT

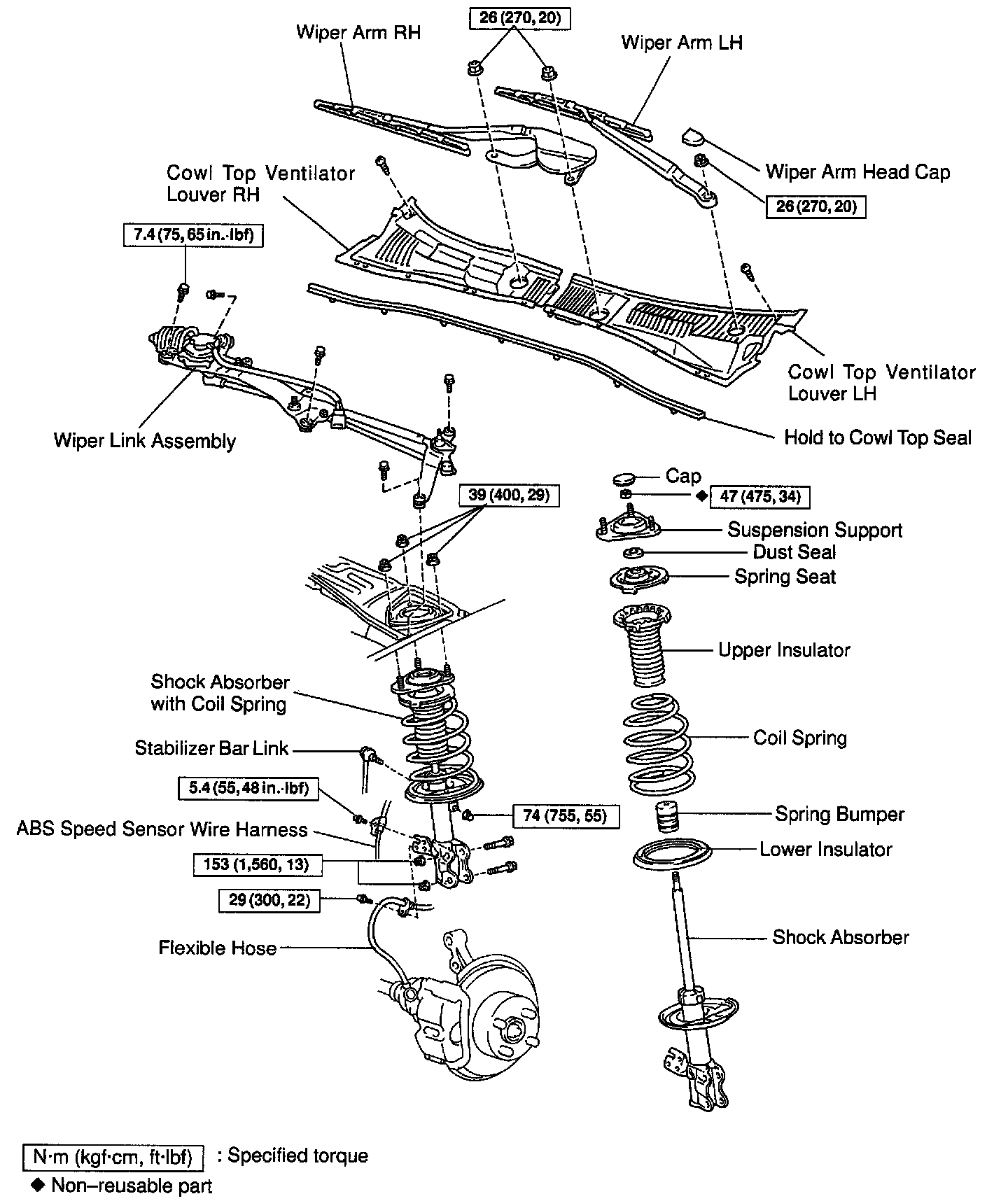

FRONT SHOCK ABSORBER

FRONT LOWER SUSPENSION ARM

Ball Joint Lower:

FRONT LOWER BALL JOINT

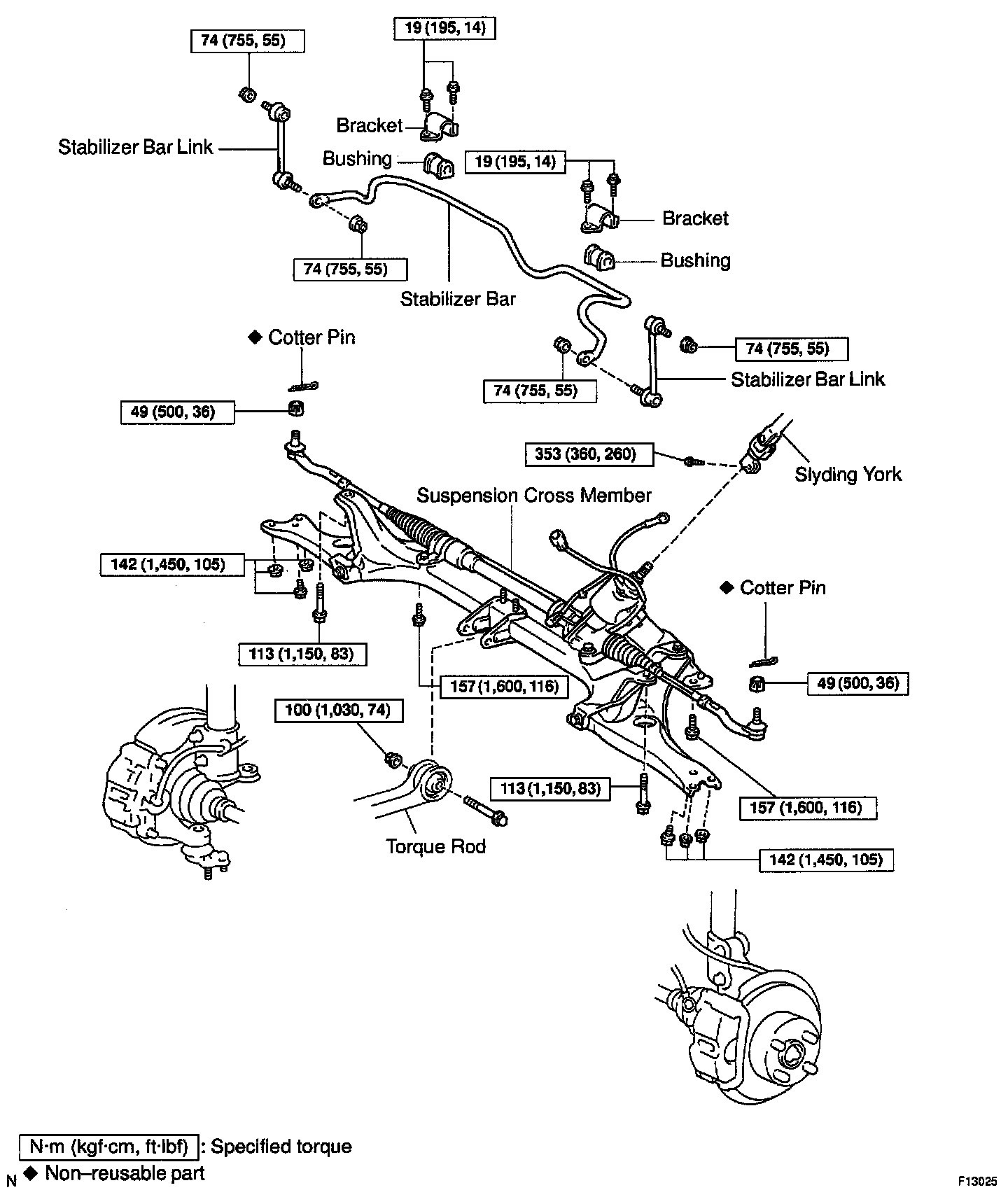

Front:

FRONT STABILIZER BAR

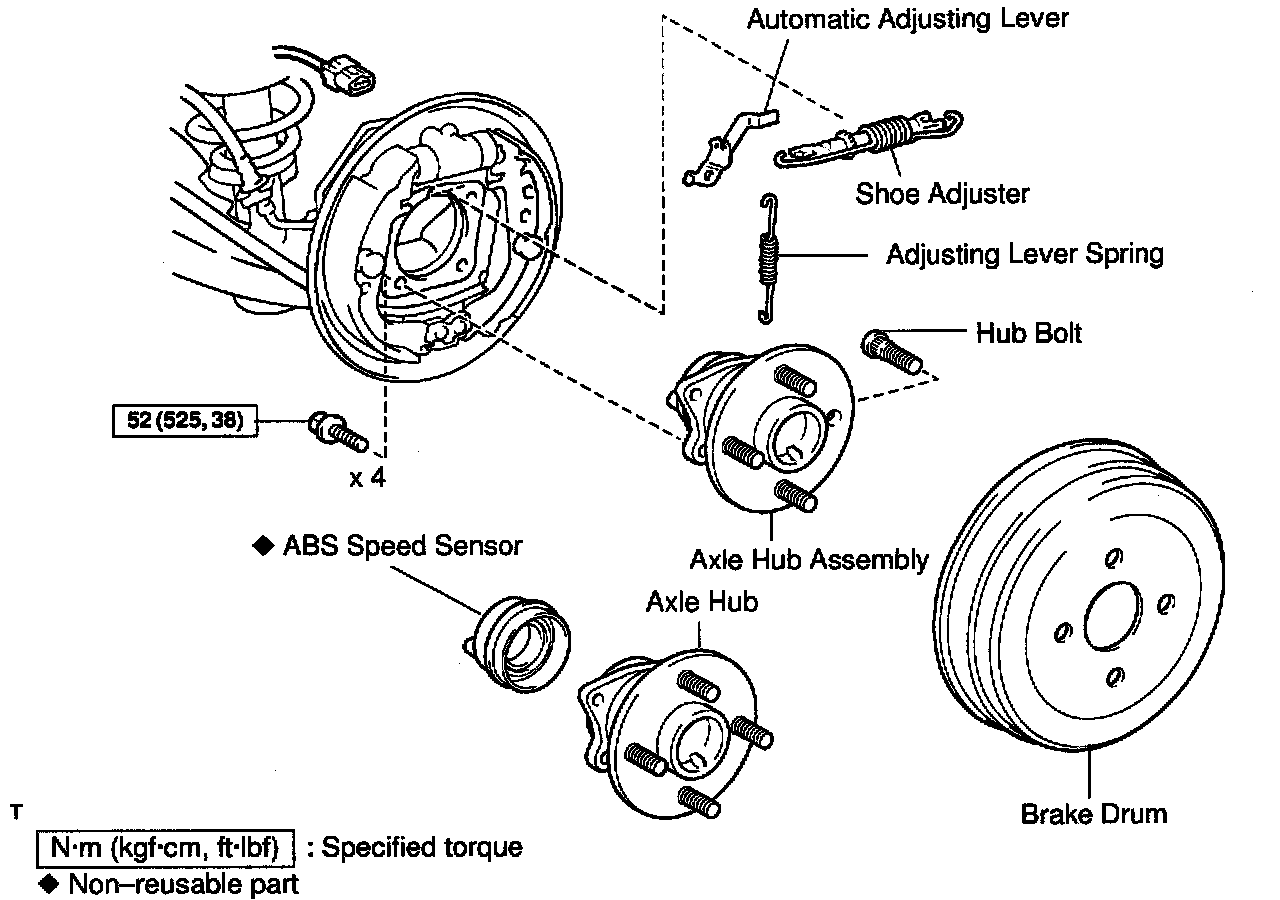

REAR AXLE HUB

REAR SHOCK ABSORBER

REAR AXLE BEAM

Rear:

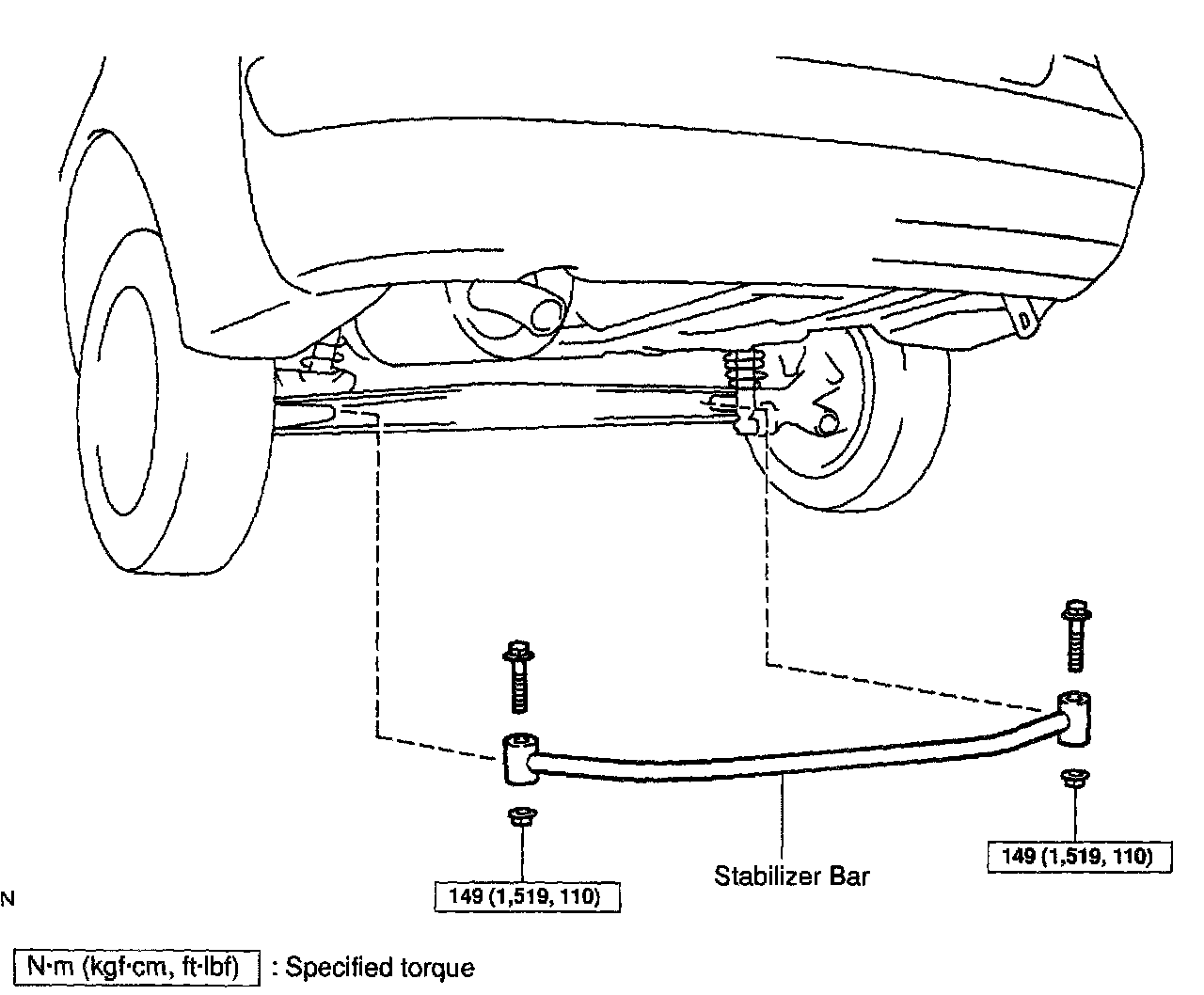

REAR STABILIZER BAR
