Hydraulic Brake Booster
Hydraulic Brake Booster

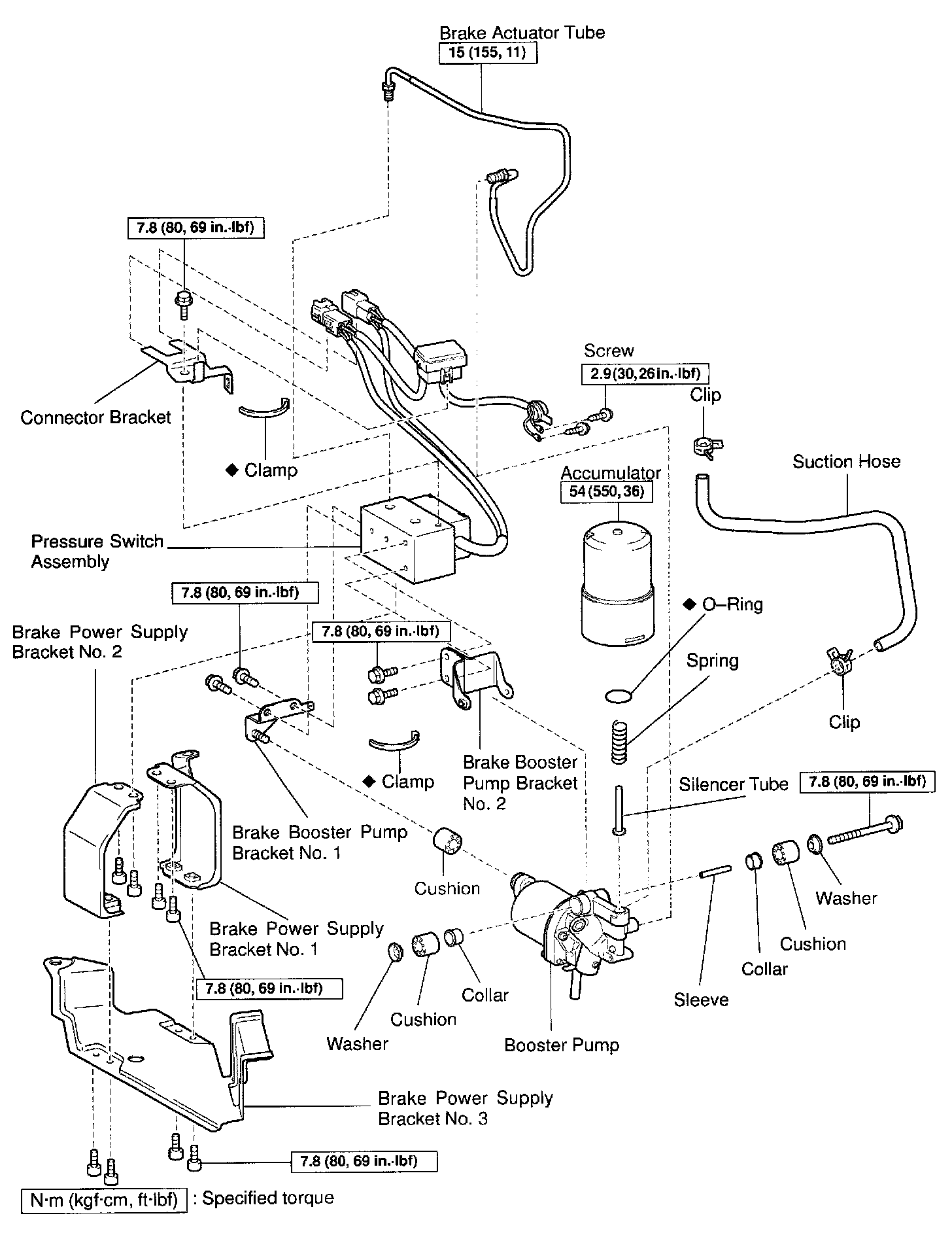

HYDRAULIC BRAKE BOOSTER

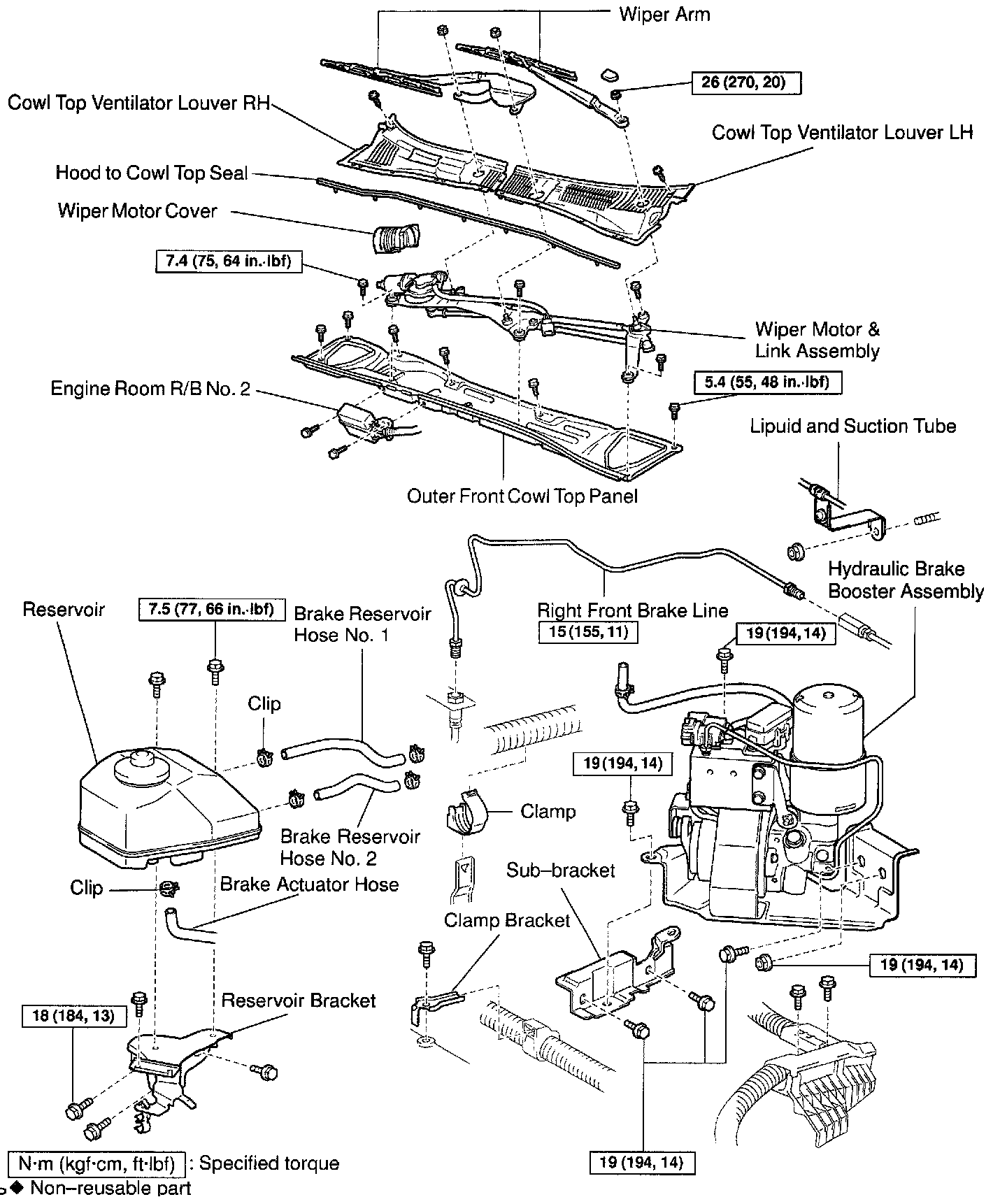

REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
