Prius L4-1.5L (1NZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
Connectors

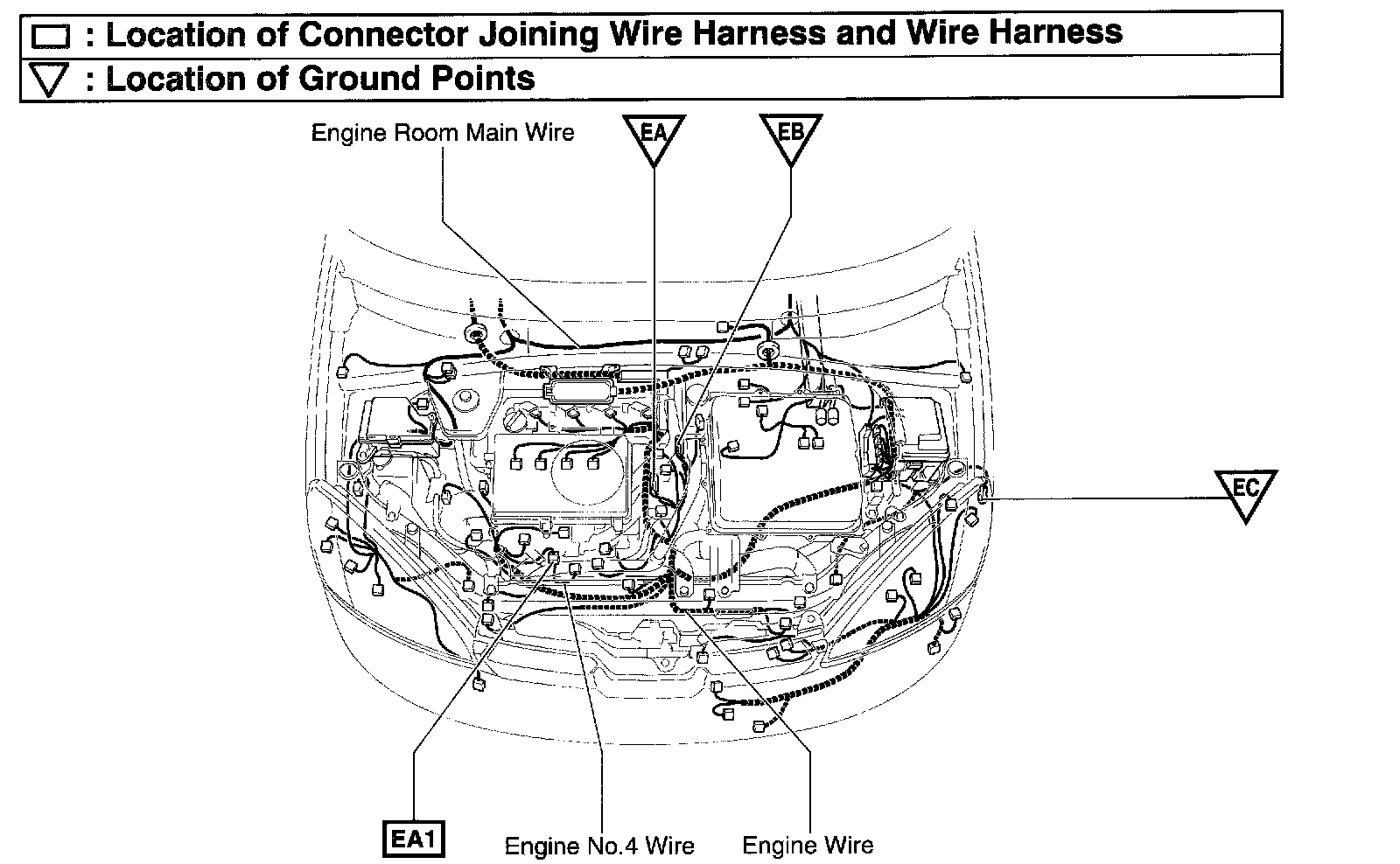

EA1, EA - EC:

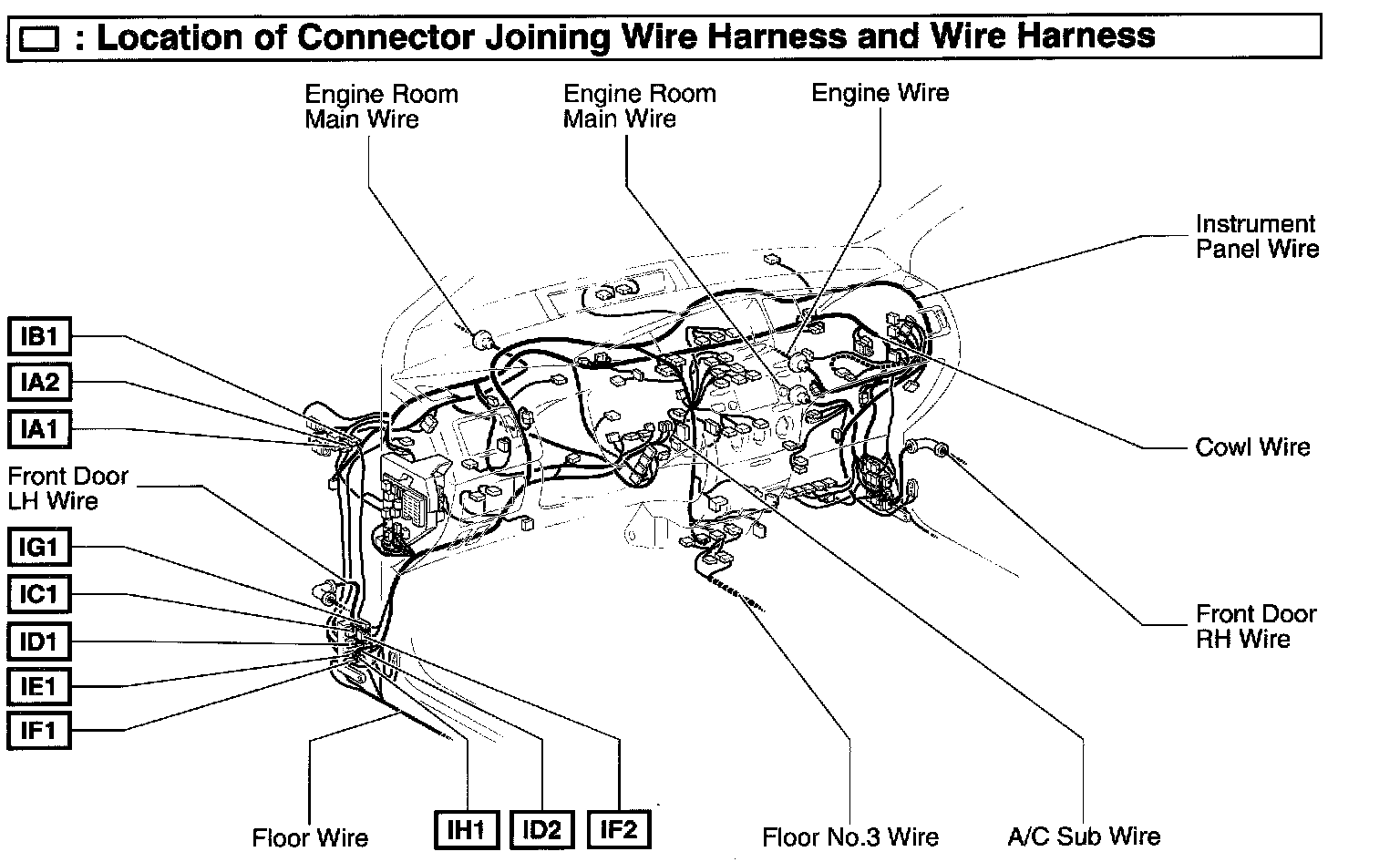

IA1 - IH1:
II1 - IQ1:

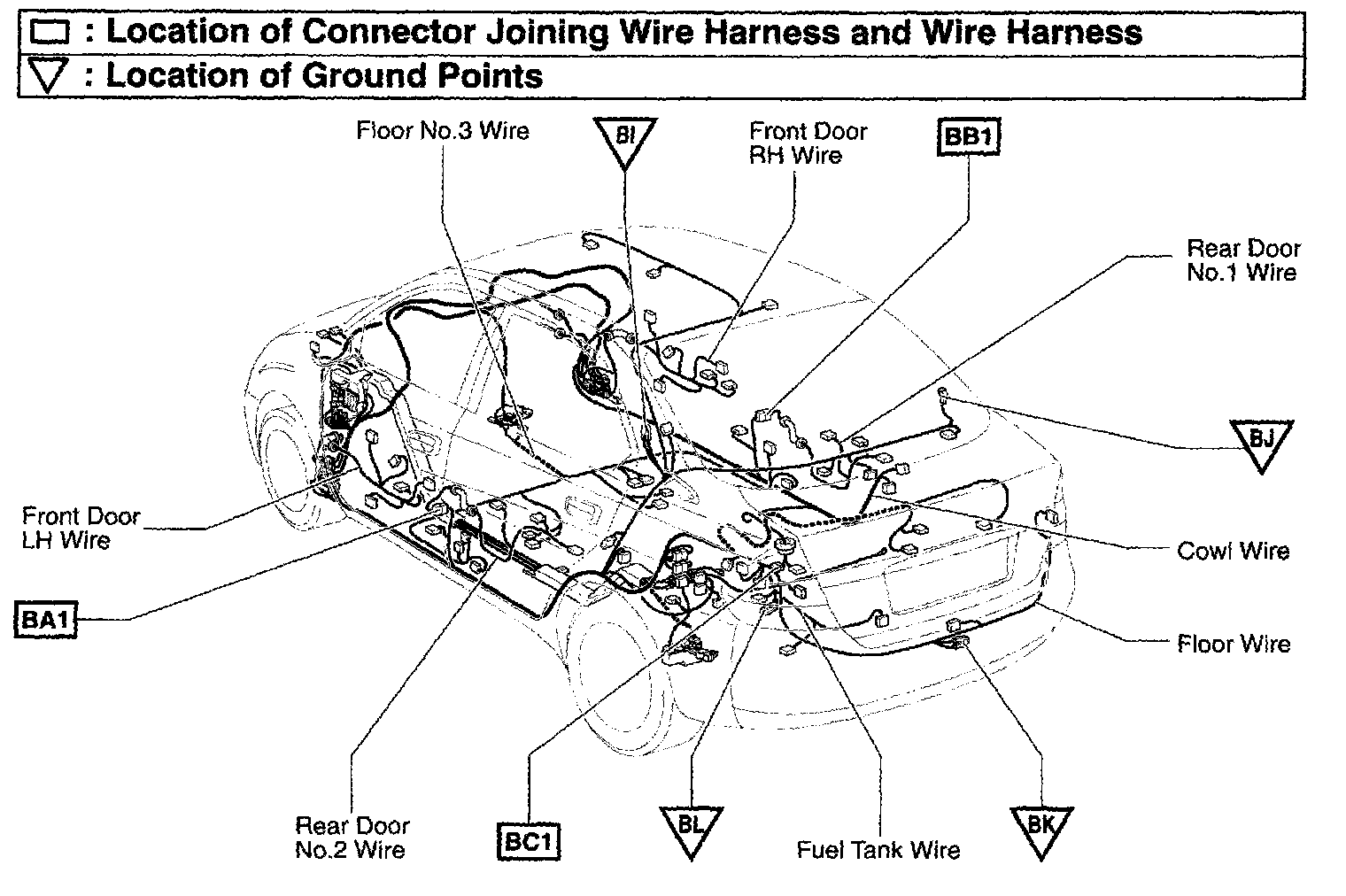

BI - BL, BA1 - BC1:
