Instrument Cluster / Carrier
Instrument Cluster / Carrier

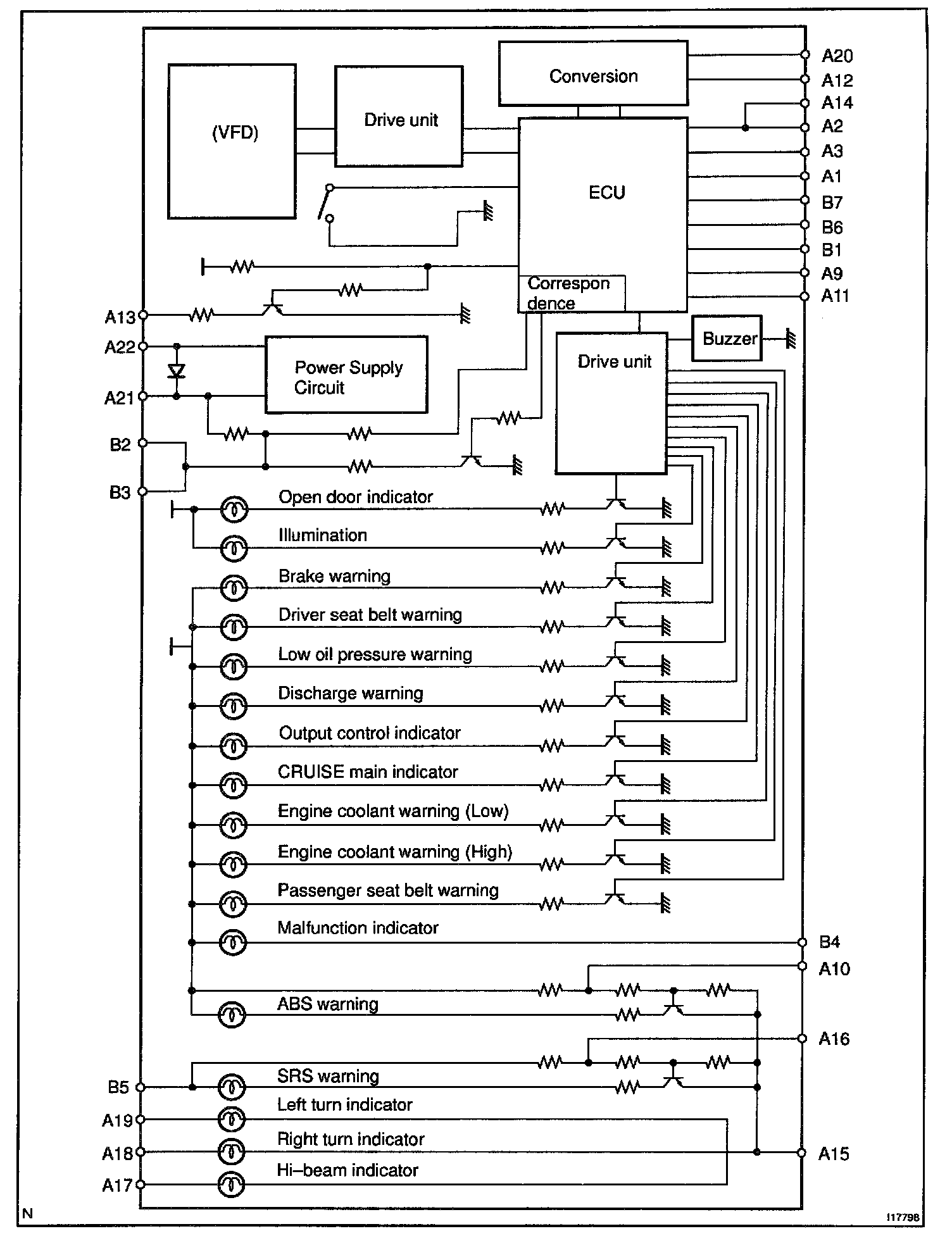

Circuit (Part 1):

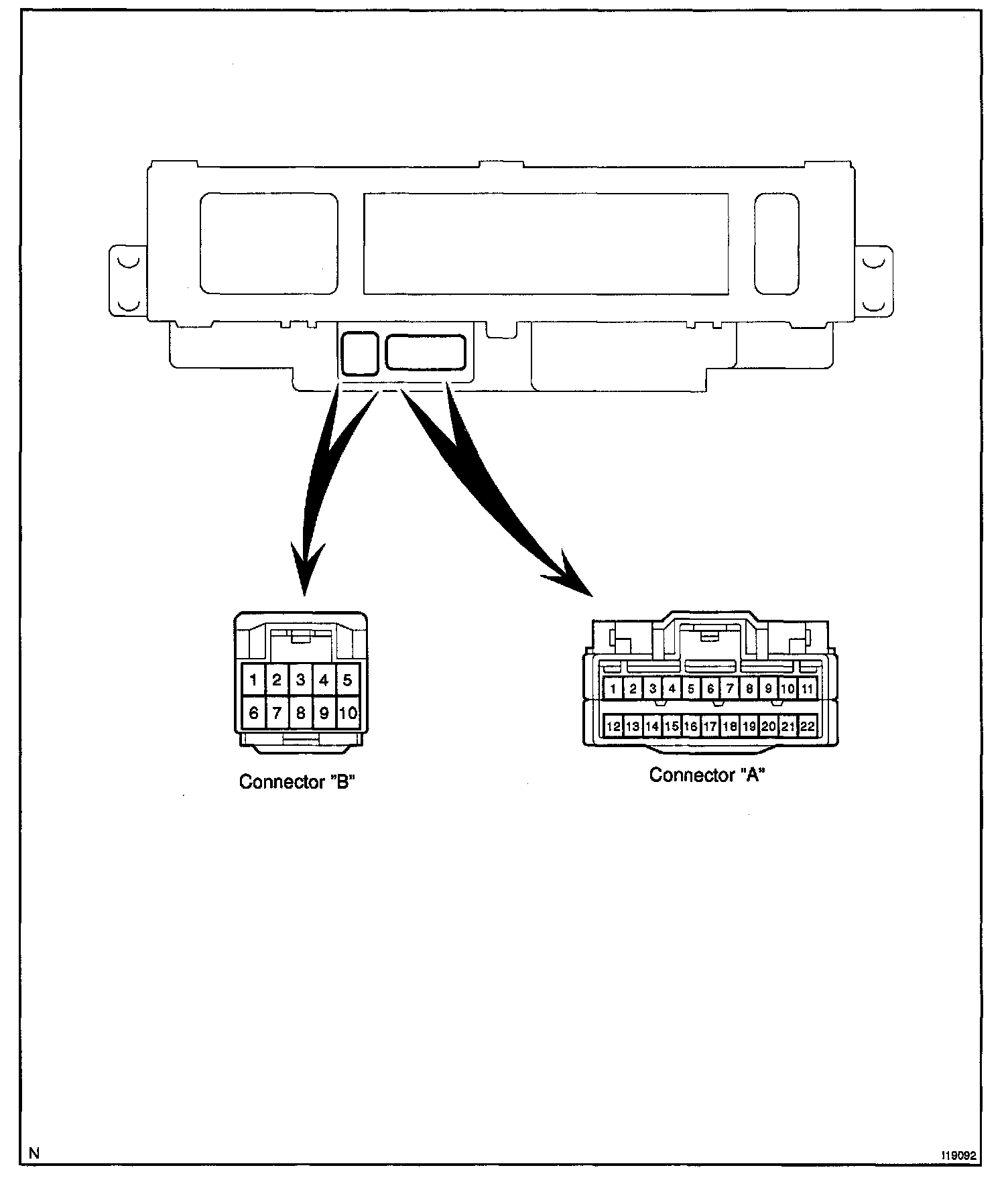

Circuit (Part 2):

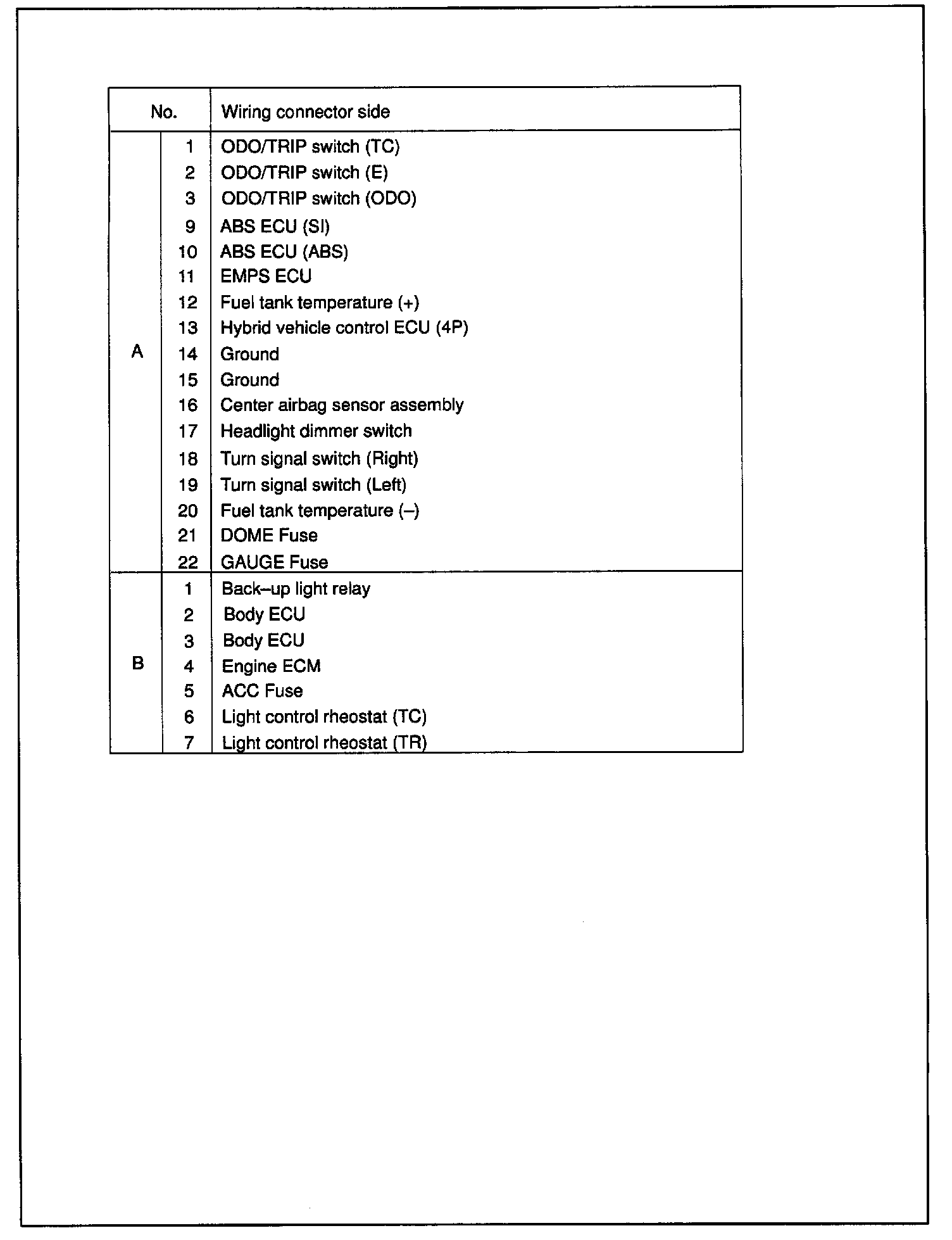

Circuit (Part 3):
