Home
>>
Toyota
>>
2003
>>
Prius L4-1.5L (1NZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>

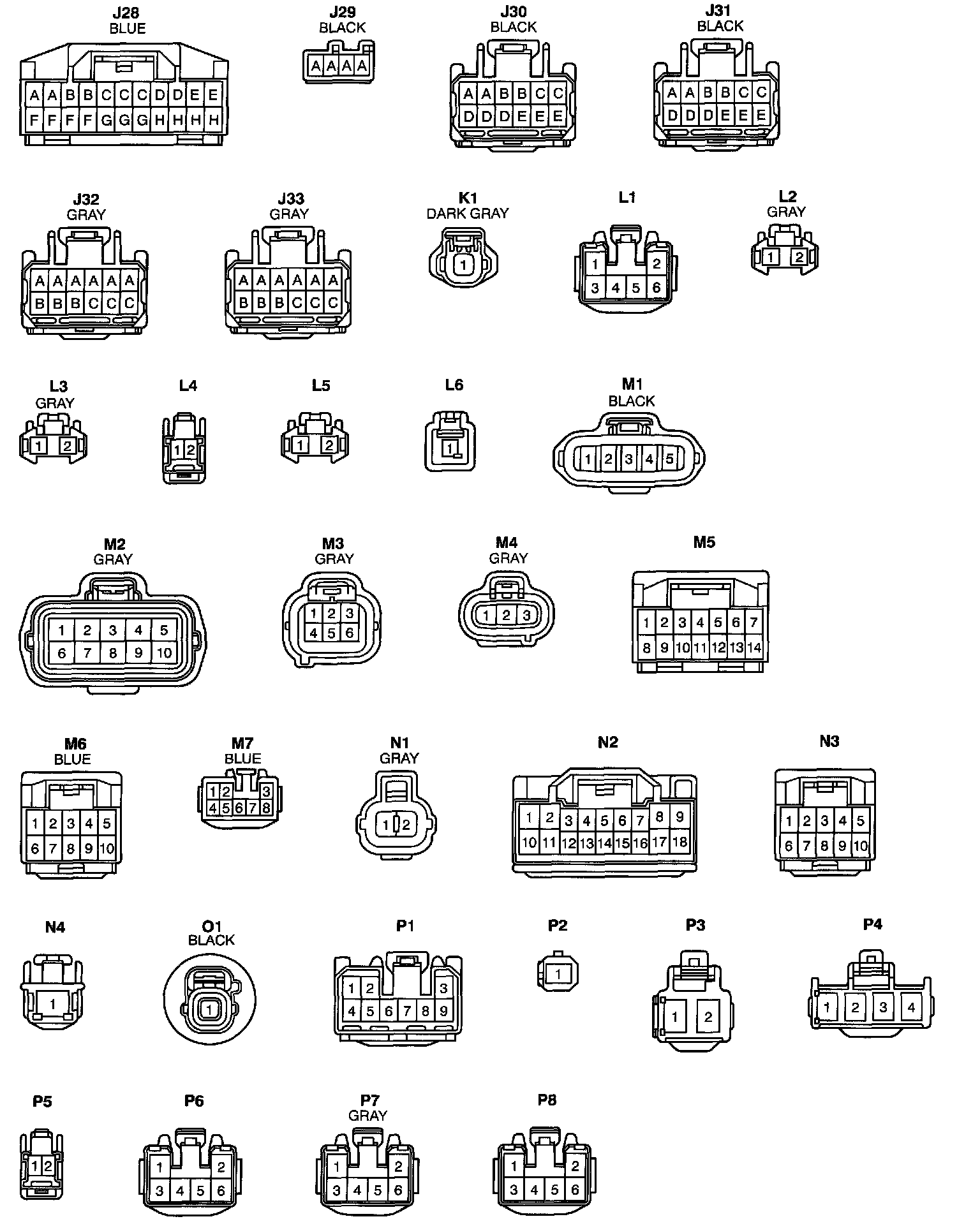

J28 - P8
J28 - P8
J28 - P8:
