Cruise Control Switch Circuit

CIRCUIT DESCRIPTION
This circuit carries the SET/COAST, RESUME/ACCEL and CANCEL signal (each voltage) to the ECU.

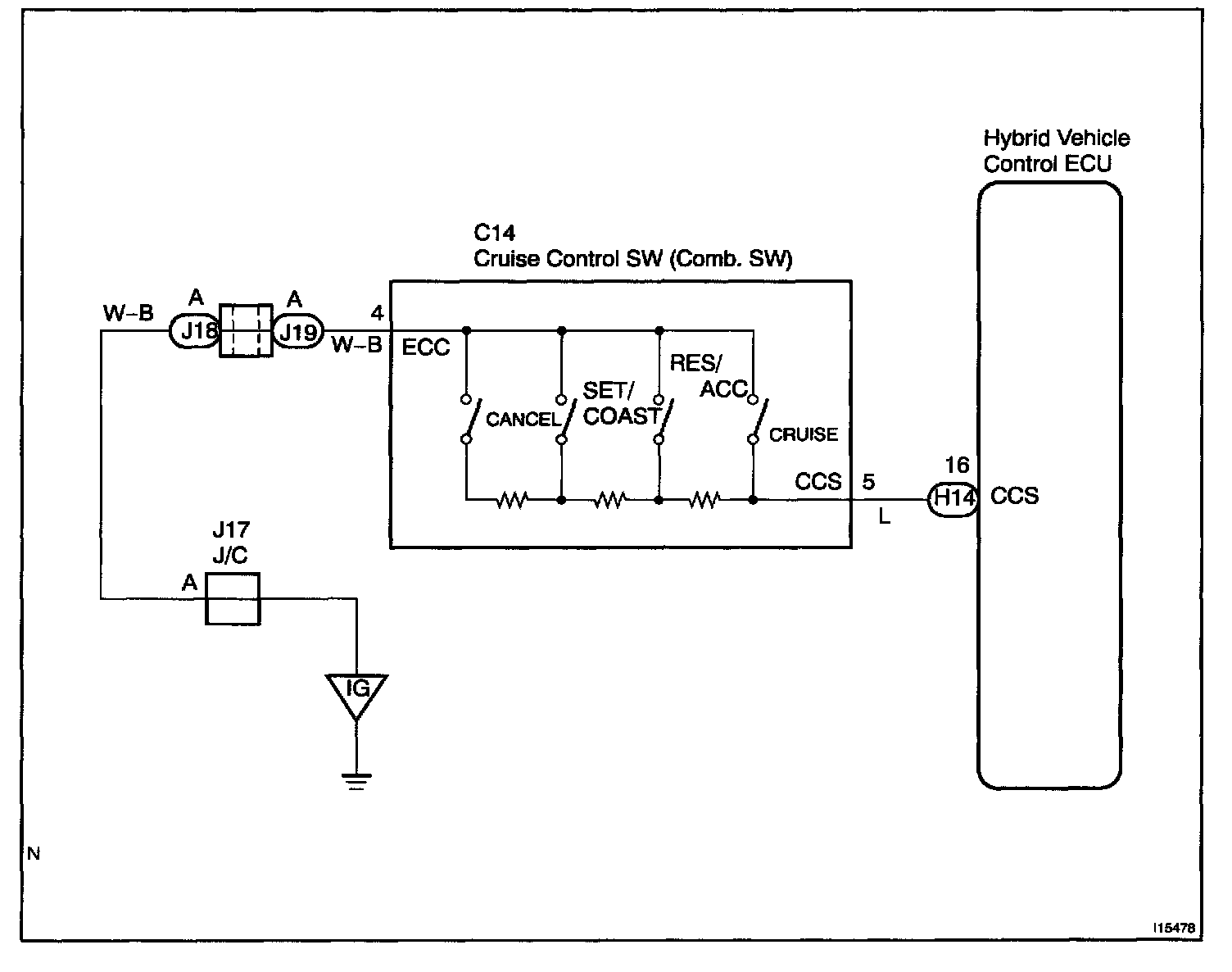

Wiring Diagram:

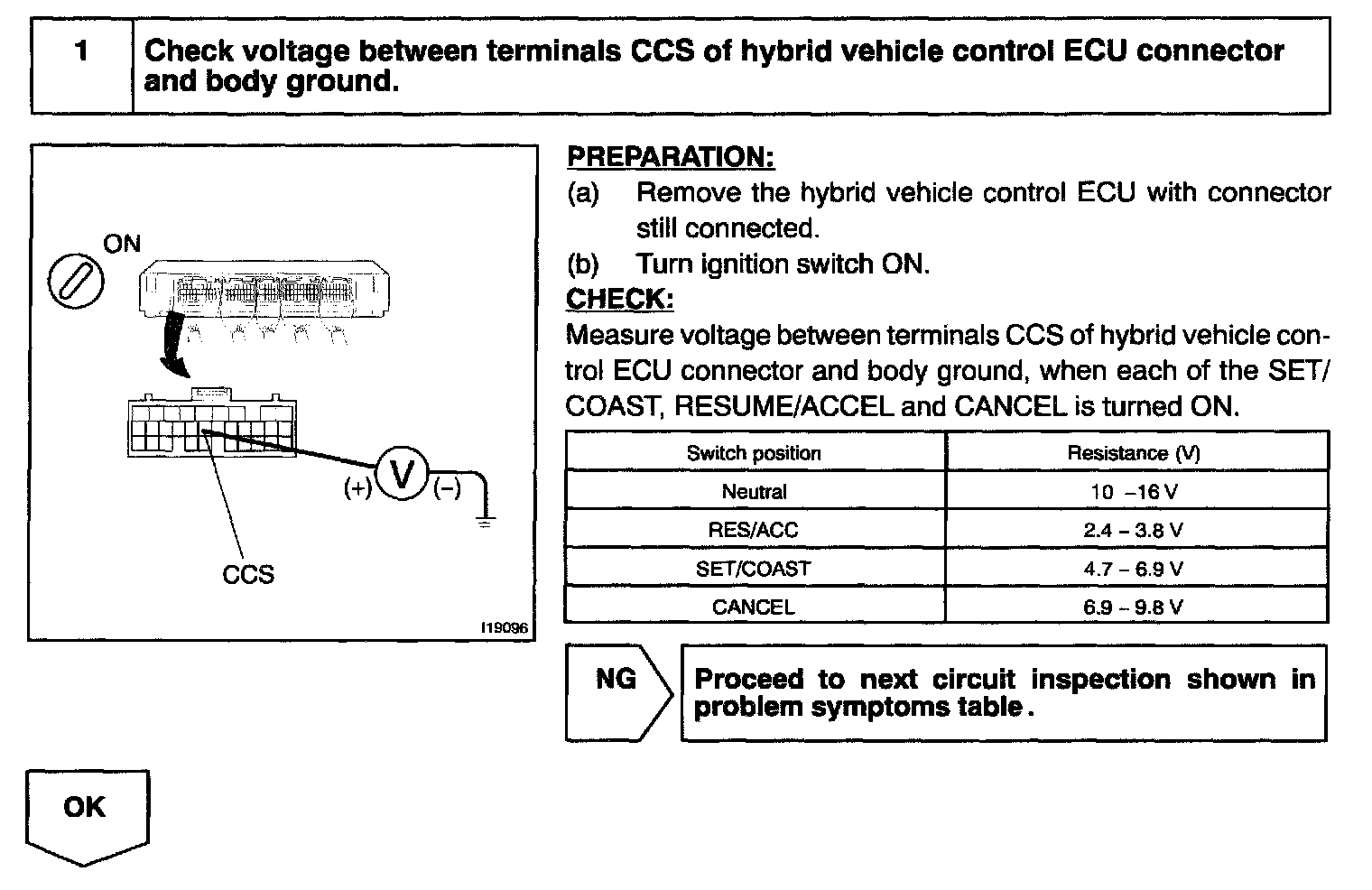

Step 1:

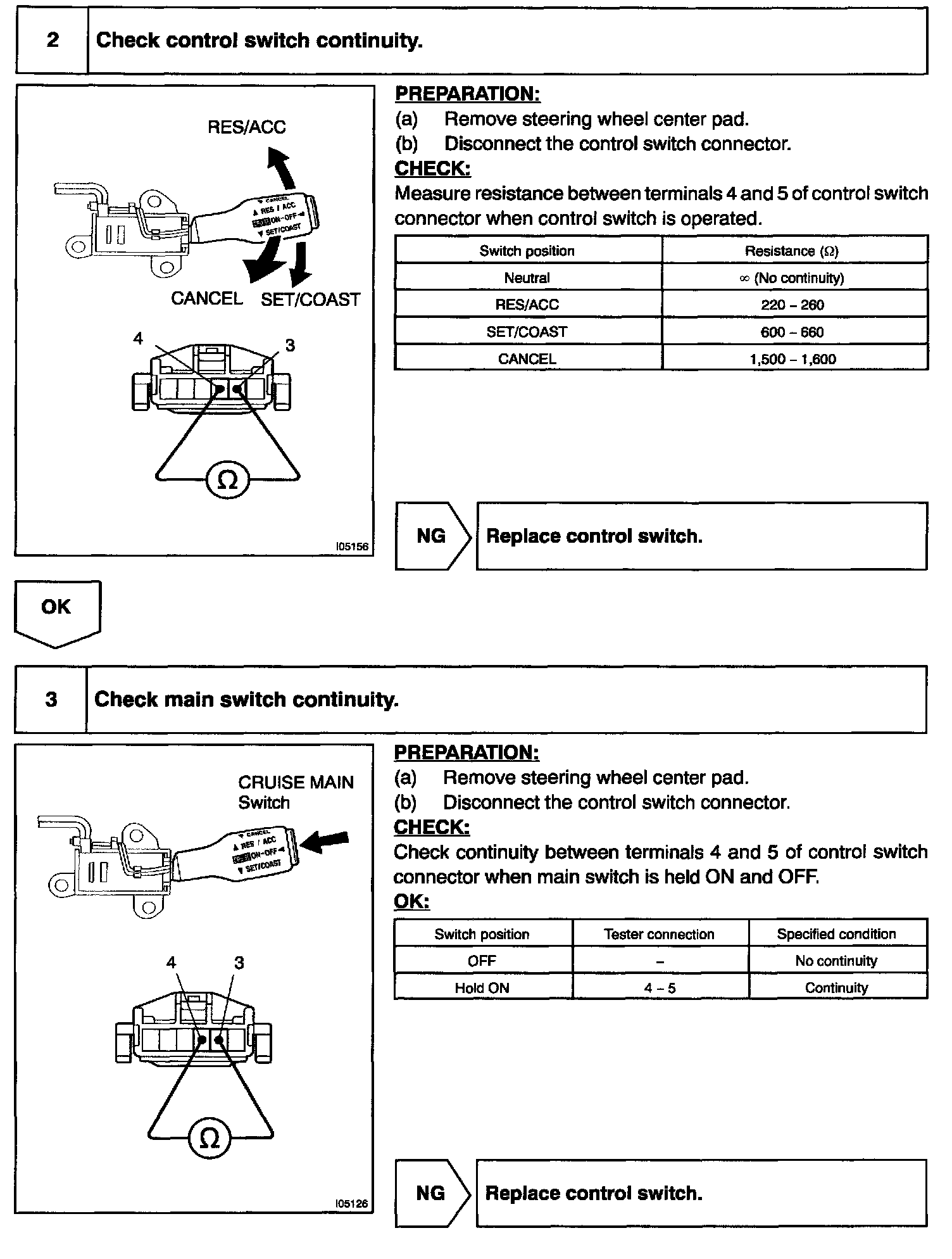

Step 2 - 3:

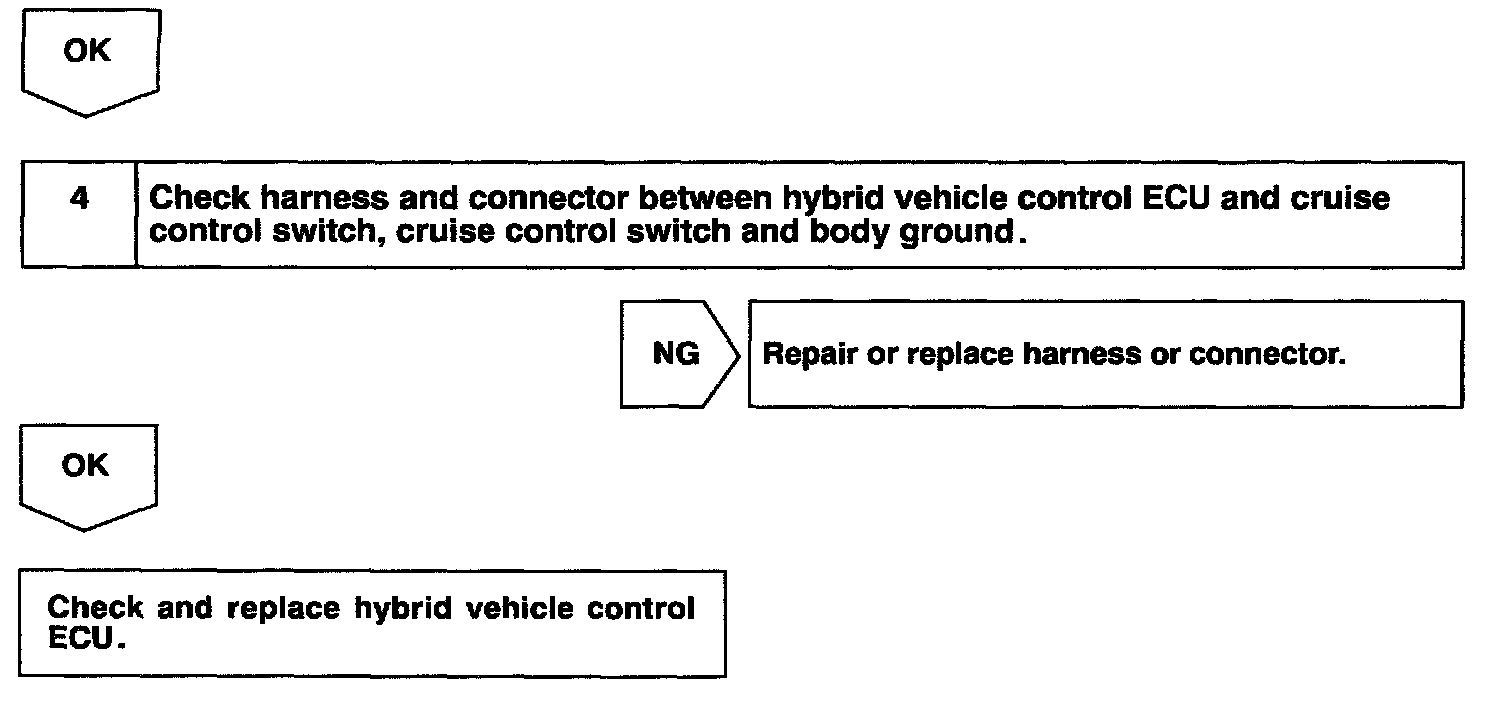

Step 3 (continued) - 4:

INSPECTION PROCEDURE
