Brake Warning Indicator: Testing and Inspection

CIRCUIT DESCRIPTION

The BRAKE warning light lights up when the brake fluid is insufficient, the parking brake is applied or the EBD is defective.

The BRAKE warning light also lights up when DTC No. C1213/63 or C1259/59 is detected, however, the EBD is not inhibited in this case.

Wiring Diagram:

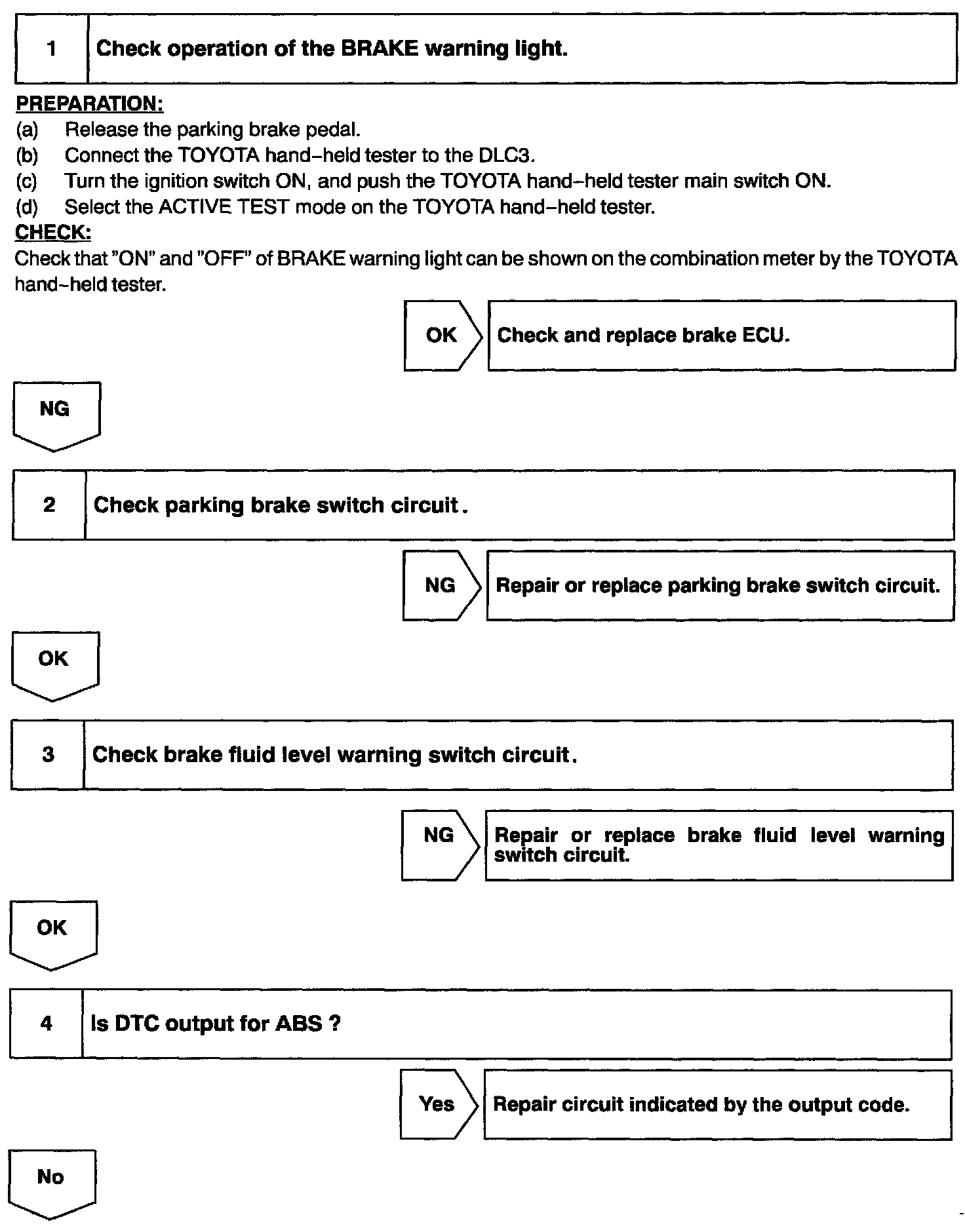

Step 1 - 4:

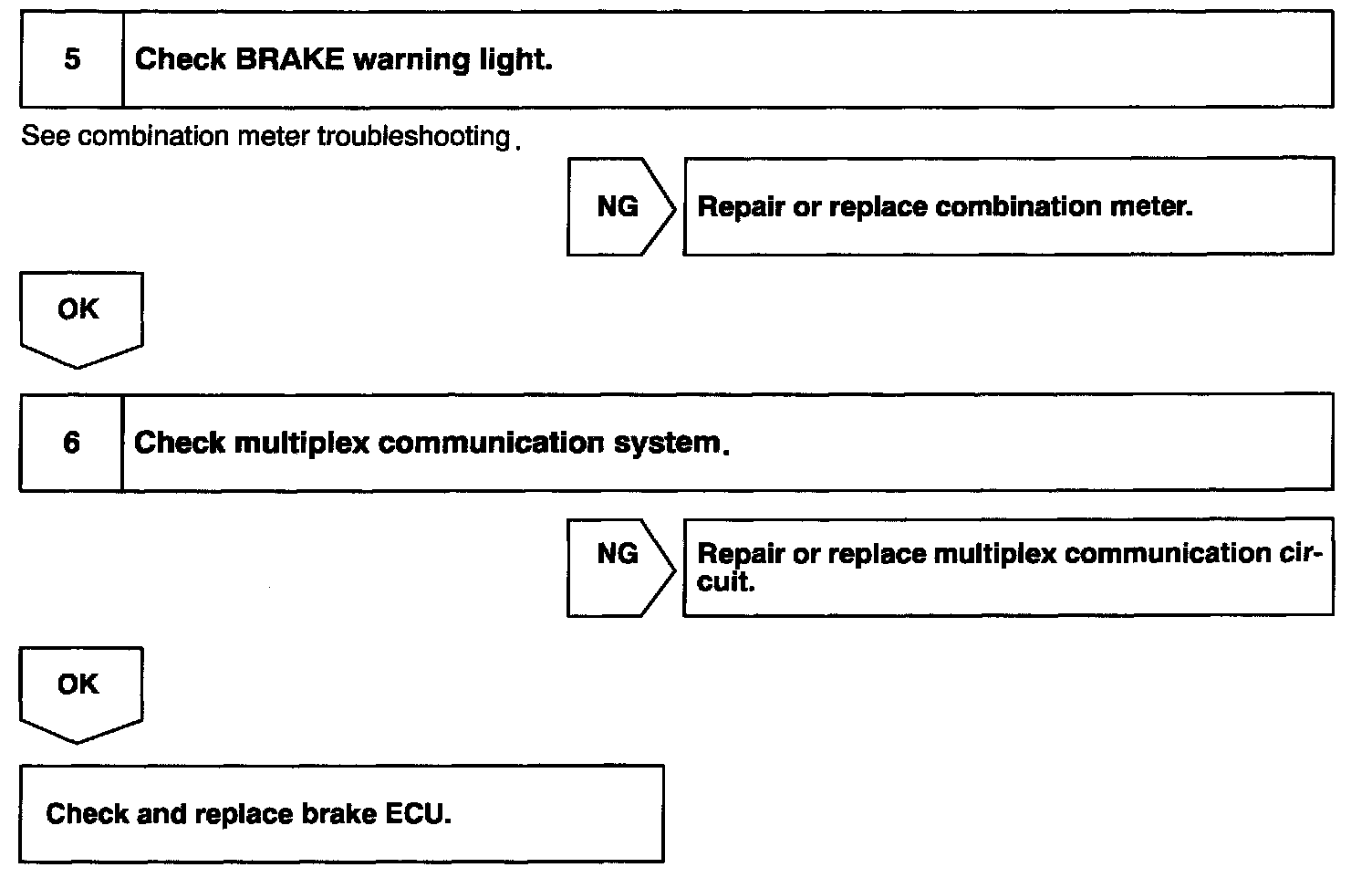

Step 5 - 6:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 in case of using the TOYOTA hand-held tester and start from step 2 in case of not using the TOYOTA hand-held tester.
